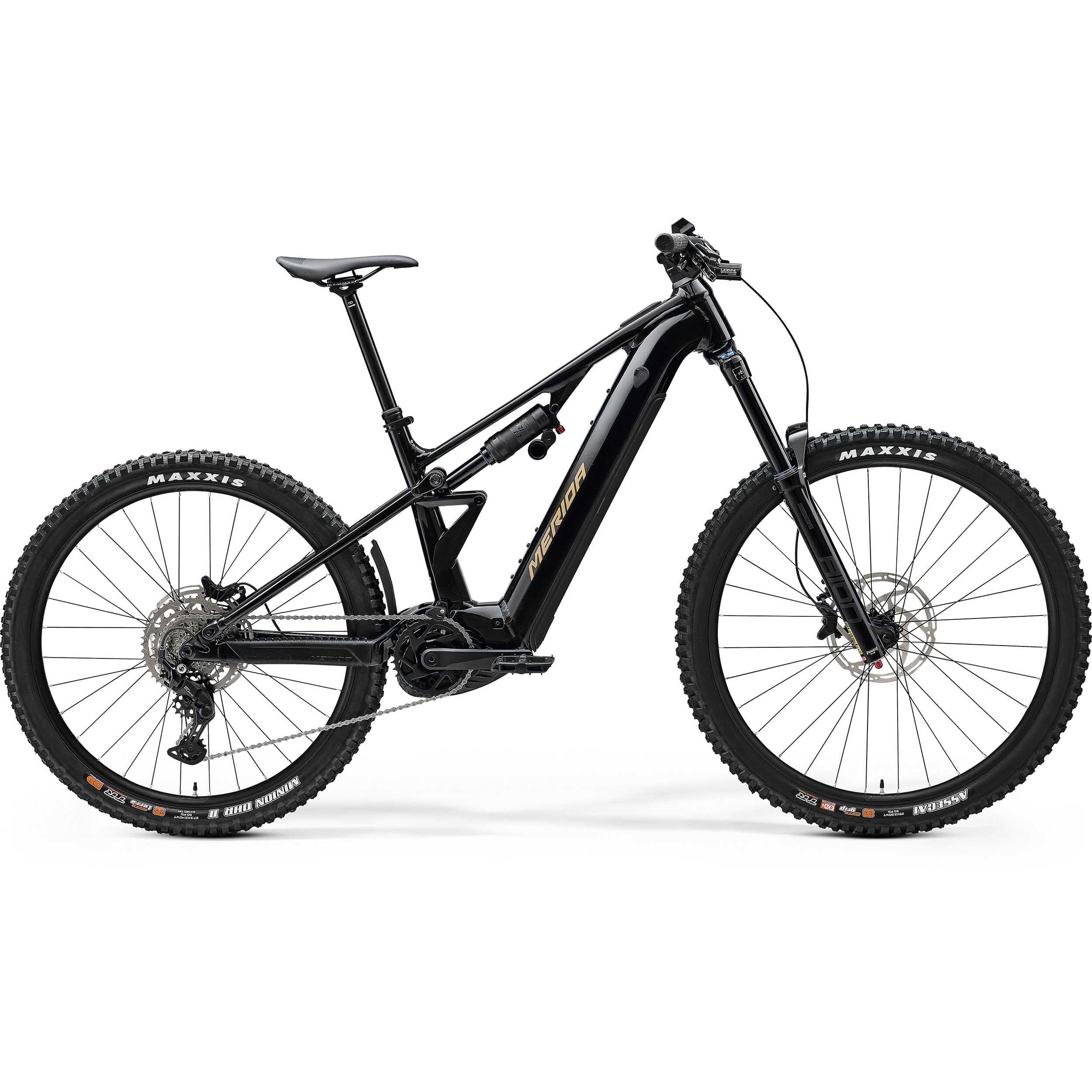

Merida E One Eighty 400 l1 bike 2025

The eONE-EIGHTY 400 might be our entry-level big-hitting e-MTB, but we've made a bike ready for the rough stuff at a budget-friendly price. Suntour's Aion 38X fork and TRIAIR2 shock serve up 180 mm of sorted suspension, and our tough aluminium frame features mixed-size wheels to keep things fun and flickable. Shimano's solid CUES drivetrain offers flawless shifting under pressure, while four-piston brakes will stop you in good order.
Calling all heavy hitters, bike park senders and big mountain brawlers, this one’s for you. The new eONE-EIGHTY has landed, and it’s ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.It’s our longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on our award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, it’s ready to rock.It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with 85 Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus we’ve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.It’s rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.

Features

• Tough aluminium frame with 180 mm rear wheel travel and mixed wheel sizes as standard for fun and agile handling
• Suntour Aion 38X fork with 180 mm travel, Suntour TRIAIR2 rear shock
• Shimano CUES U4000 9-speed drivetrain
• MERIDA TEAM TR II tubeless ready wheelset
• User removable 600 Wh battery with optional 250 Wh range extender, powerful Bosch CX drive unit
• Reach-based AGILOMETER sizing system with MERIDA EXPERT TR II size-specific dropper post

Tech spec

• FRAME: eONE-EIGHTY LITE, material: aluminium, 180mm suspension travel, 27.5‘ x 2.6’ max. wheelsize, 148x12mm axle standard
• Fork: SR Suntour Aion 38X, Air, 180mm suspension travel, Tapered, 44mm fork off set, 29x2.6’ max wheelsize
• HARM: SR Suntour TRIAIR2
• BRAKES: Tektro Gemini M535, 4 piston
• DISCS: Tektro TR203-45, 203mm
• ARMS SERIES: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
• HANDLEBARS: MERIDA EXPERT eTR, 780mm width (20, 30 RHB)
• HANDLEBARS: MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
• HANDLE GRIPS: MERIDA Expert EC
• REAR DERAILLEUR: Shimano Cues U4000, GS
• REAR DERAILLEURS: Shimano SL: MT500-L / Shimano Cues U4000-9
• CRANKSET: FSA CK-220 wide E-Bike Forged Crankset, 165mm for all sizes
• SEATREAD MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, 125,150,200,230
• SEATPOST CLAMP: MERIDA EXPERT
• SADDLE: MERIDA COMP SL
• PEDALS: VP VPE-533
• CHAIN: Shimano LG500
• CRANKSET: FSA Direct Mount Steel Chainring, 36 teeth
• SPROCKETS PACK: Shimano LG400-9, 11-46 9 v
• RIMS: MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready, front 29’, rear 27.5’
• HUBS: Shimano TC500-B / Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
• SPOKES: MERIDA EXPERT TR, including removable lever, 6/4mm allen key
• SPOKES: Black stainless
• COPERTONI: Maxxis Assegai / Maxxis Minion DHR II, 29x2,5“, piega, TR EXO+ 3C MaxxGrip, 27,5x2,4”, piega, 3C DD TR MaxxTerra
• SERRATURA BATTERIA: Abus Key
• MOTORE: Bosch Performance Line CX
• BATTERIA: Bosch PowerTube 600 Wh, rimovibile
• DISPLAY: Bosch Purion 200

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only. Anything not specified in the description is not included.
