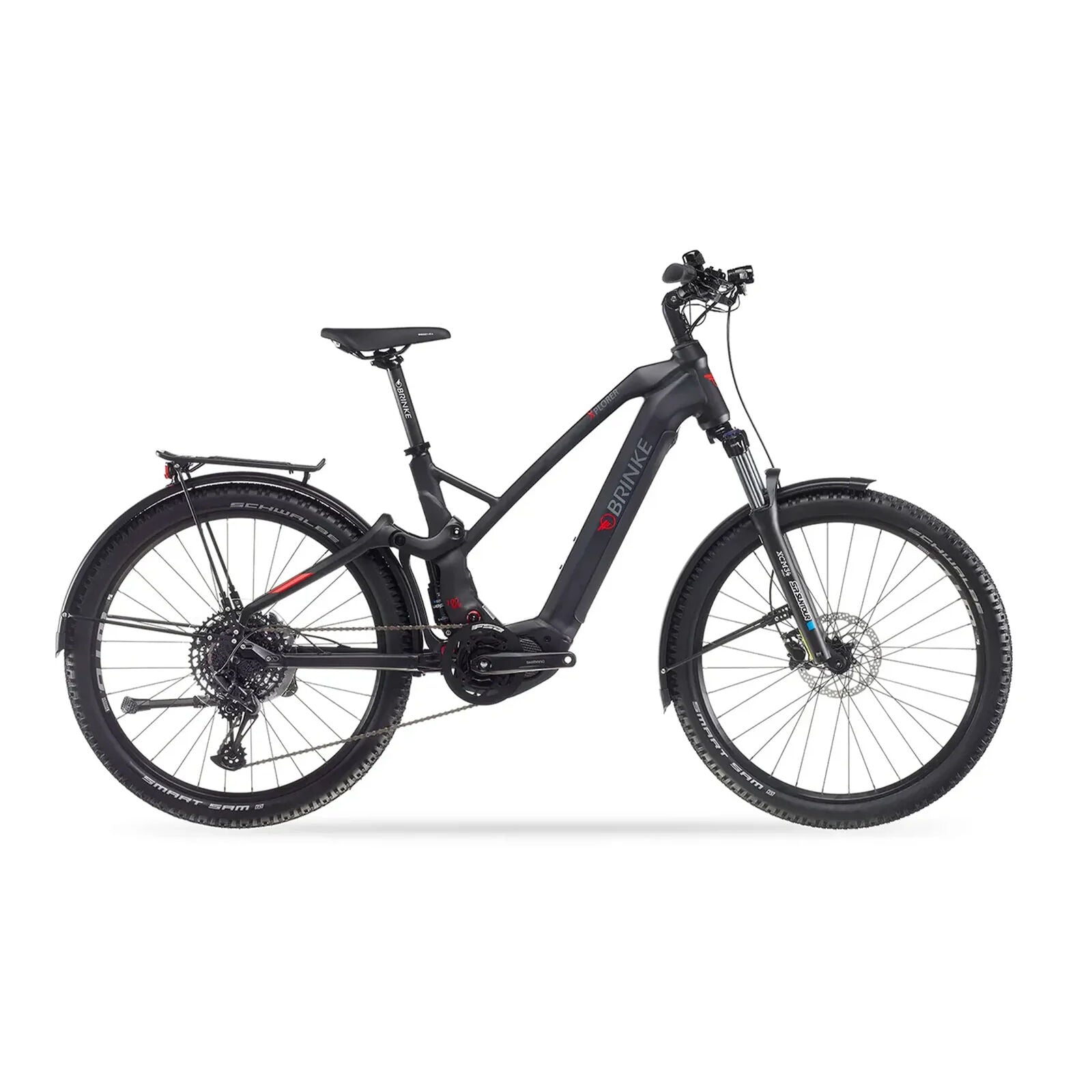

Brinke Explorer EP801

The XPLORER is a Full Suspended Trekking ebike with 100mm front and rear travel, providing agility and performance comparable to a bi-axle Cross Country bike. Equipped with an integrated 630Wh Shimano BT-EN806 battery, the Trekking ebike boasts a minimalist and distinctive design.

Features

• 100mm front and rear travel
• Agility and performance comparable to a bi-axle Cross Country bike.
• Shimano BT-EN806 630Wh battery pack
• Minimal and distinctive design

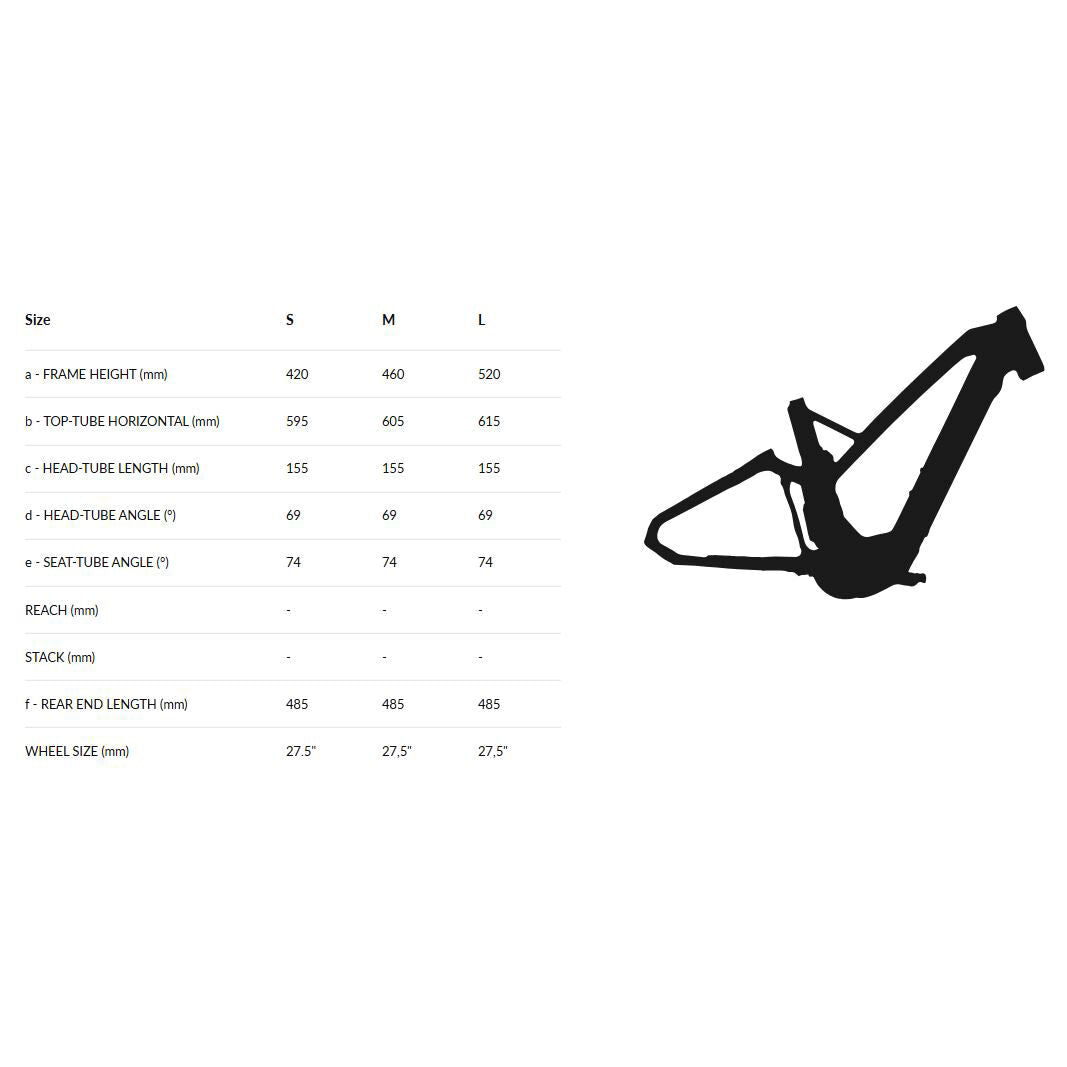

Tech spec

Frame

• Frame: ALUMINUM FRAME - Rear Suspension Travel 100mm - Motor Mount for Shimano EP801 - 27.5'' Wheels - Internal Cable Routing

System

• Motor: Shimano EP801- 250Watt-85Nm
• Battery: Shimano BT-EN806 630 WH
• Display: Shimano SC-EN600

Suspensions

• Rear Shock: Suntour RAIDON R 170x35mm
• Fork: Suntour XCM34-Boost NLO DS 15AH2-110 29'', 100mm travel

Cockpit

• Handlebar Stem: Adjustable, Barbore 31.8mm, extension 85mm
• Handlebar: Barbore 31.8- 700mm width - 18mm rise
• Seatpost: Seatpost 31.6mm-300mm
• Saddle: Selle Royal ESSENZA, 260 X198mm

Brakes

• Front Brake: Shimano BR-MT200 2 Pistons
• Rear Brake: Shimano BR-MT200 2 Pistons
• Rotors: 180mm Front and Rear

Transmission

• Transmission: SRAM SX Eagle 12V
• Shifter: SRAM SX Eagle 12V
• Cassette: SRAM SX Eagle - PG1210 11-50D
• Chain: SRAM SX Eagle 12V
• Crankset: Shimano FC-EM600, 170MM

Wheels

• Front Hub: Shimano HB-MT410-B - 15X110 - Center lock
• Rear Hub: Shimano FH-UR600 10/11-Speed - Center lock
• Front Rim: WTB KOM Trail i30 TCS 2.0 27.5'' rim
• Rear Rim: WTB KOM Trail i30 TCS 2.0 27.5'' rim
• Front Tire: Schwalbe Smart Sam K-Guard 27.5x2.25
• Rear Tire: Schwalbe Smart Sam K-Guard 27.5x2.25

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
