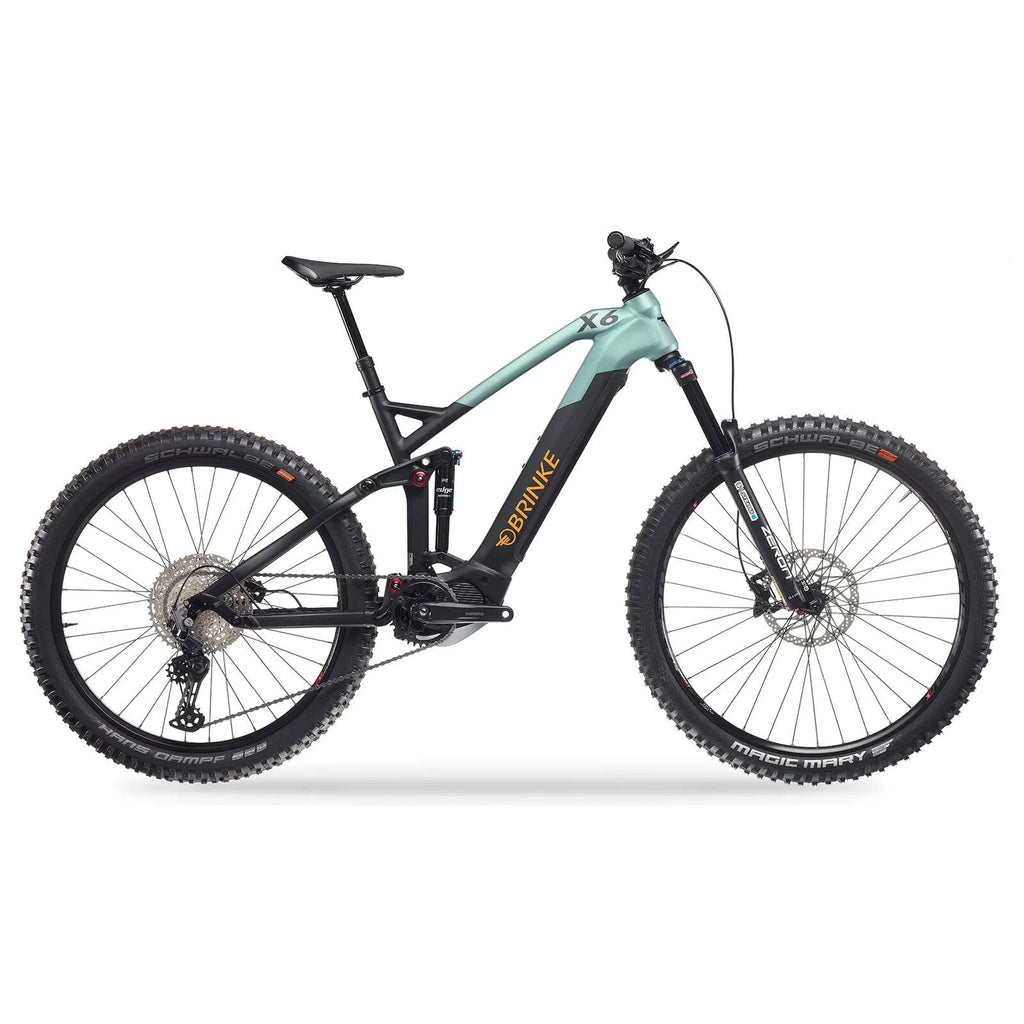

Brinke X6R Race Ep801 bike

The down tube designed around the latest generation Shimano BT-EN806 battery keeps the smallest possible size and gives the EMTBs an attractive and minimal aesthetic. The frame is designed to accommodate mullet wheels with a 27.5" rear diameter and 29" front diameter for maximum grip.

Features

• Shimano BT-EN806 battery
• Attractive and minimal aesthetic
• Mullet wheels

Tech spec

Frame

• Frame: ALUMINUM FRAME - Rear travel 150mm - Motor mount for Shimano EP801 - Rear wheel 27.5'', Front wheel 29'' - Internal cable routing - 148mm Boost rear thru-axle

System

• Motor: Shimano EP801-250Watt-85Nm
• Battery: Shimano BT-EN806 630Wh
• Display: Shimano SC-EN600

Suspensions

• Rear shock: Suntour EDGE-LOR 205x65mm
• Fork: SF20-ZERON35-Boost-AIR LOR - 15x110 Tapered Head tube

Cockpit

• Handlebar Stem: 3D Forged AL6061 with CNC machining - Barbore 35mm, extension 45mm
• Handlebar: Diameter 34.9 - Width 780mm - 28mm rise
• Seatpost: Telescopic seatpost 30.9mm - 100mm travel for size S - 130mm travel for sizes M and L
• Saddle: Selle Royal silk S1

Brakes

• Front Brake: Shimano BR-MT420 4 Pistons
• Rear Brake: Shimano BR-MT420 4 Pistons
• Rotors: 203 mm Front and Rear

Transmission

• Transmission: Shimano SL-M6100-R 11-speed
• Shifter: Shimano RD-M6100 SGS 12-speed
• Cassette: Shimano CS-M6100-12 speed 11-51D
• Chain: Shimano CN-M6100-12 speed with quicklink
• Crankset: Shimano FC-EM600 170MM
• Chainring: Shimano SM-CRE70-B 34T

Wheels

• Front Hub: Shimano HB-MT410-B - 15X110 - Center lock
• Rear Hub: Shimano FH-MT410-B - 12X148 - 8-11 speed - Center lock
• Front Rim: WTB ST light i30 29‘’ - 30mm inner canal
• Rear Rim: WTB ST light i35 27,5‘’ - 35mm inner canal
• Front Tire: Schwalbe Magic Mary Evo 29x2.6
• Rear Tire: Schwalbe Hans Evo Dampf 27.5x2.8

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
