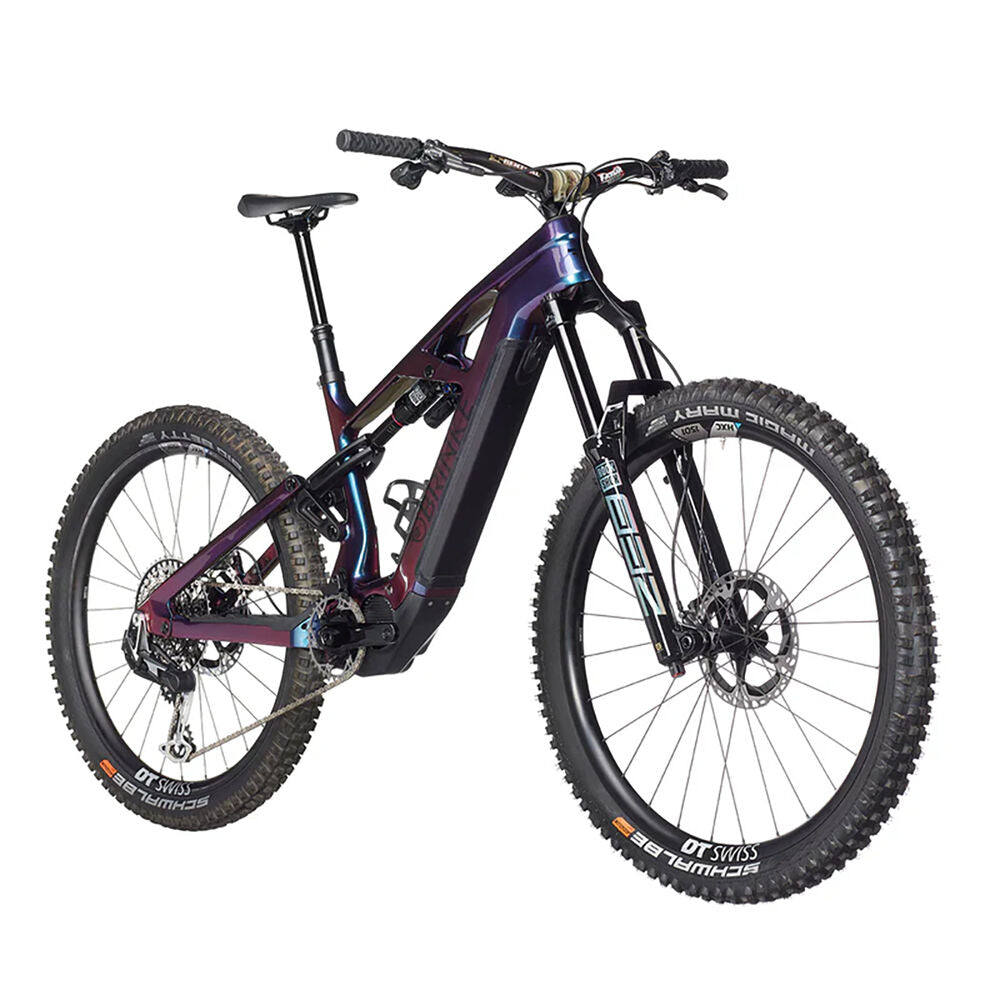

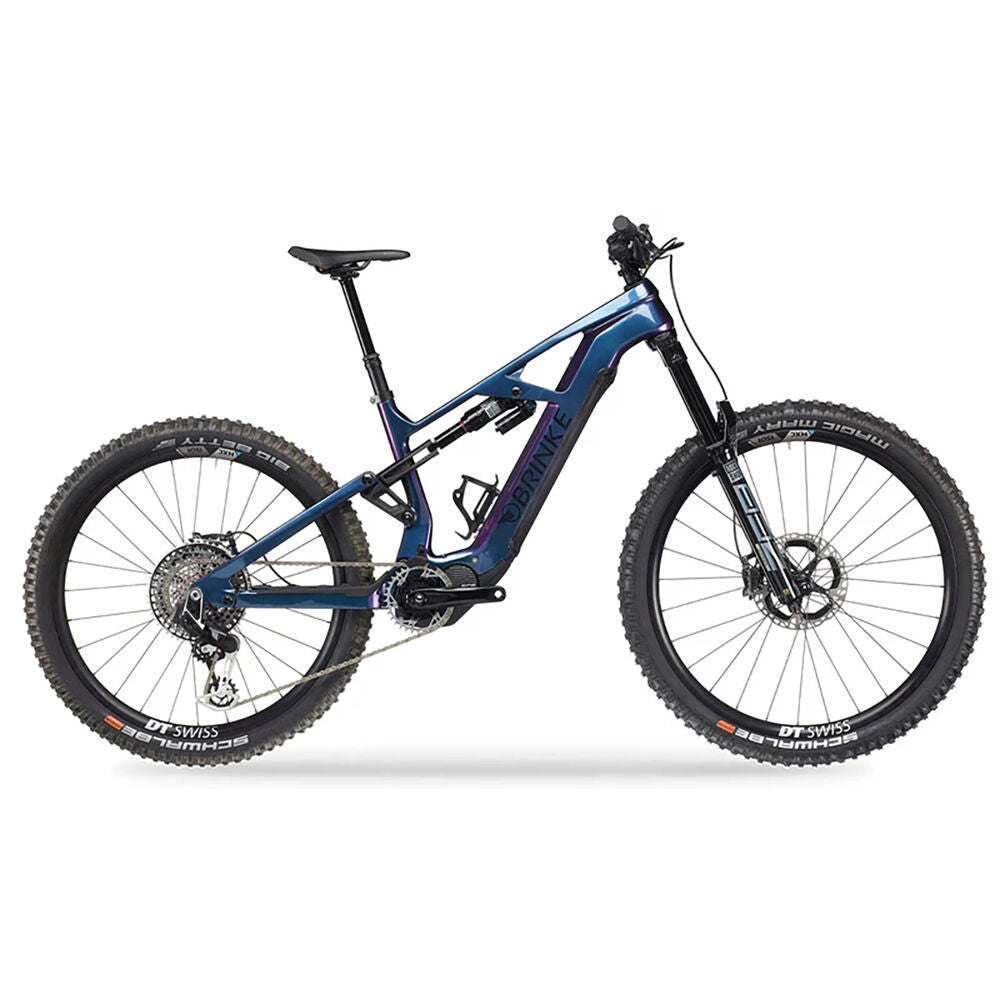

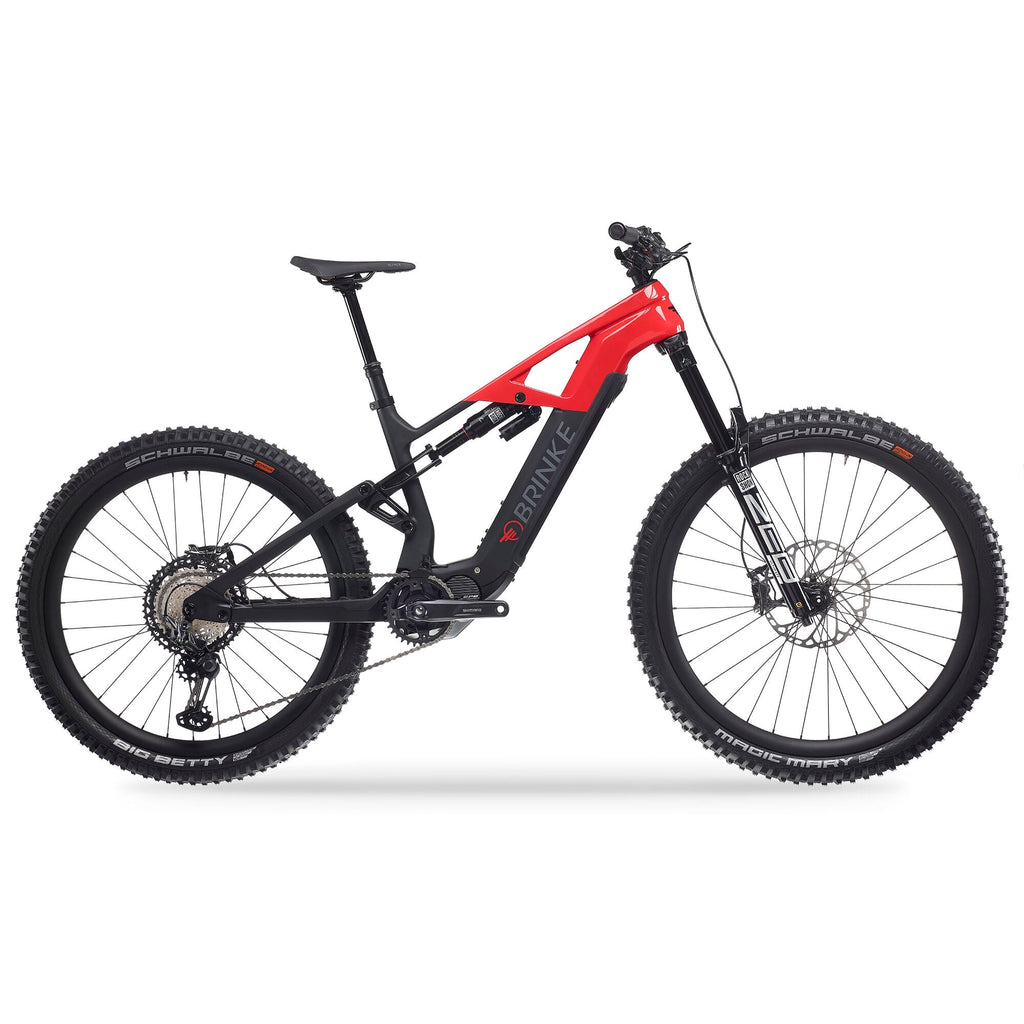

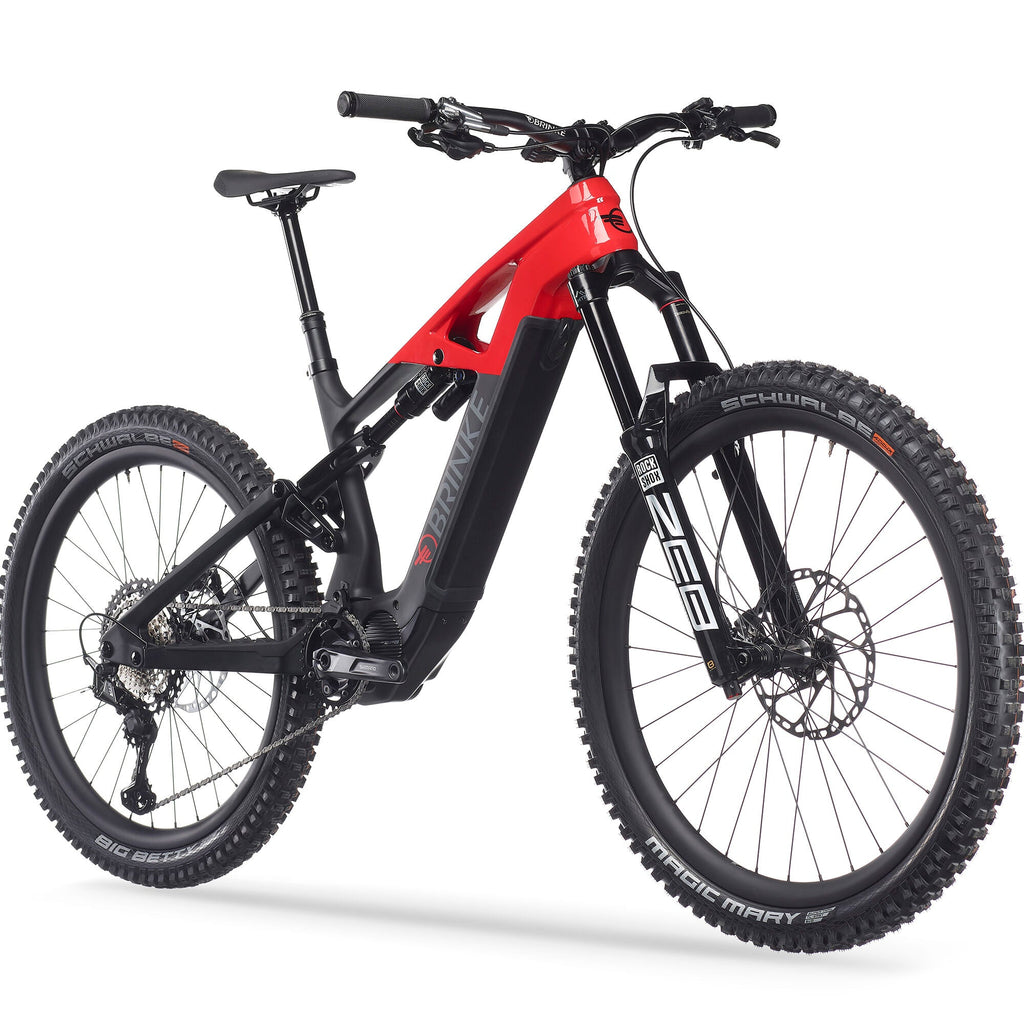

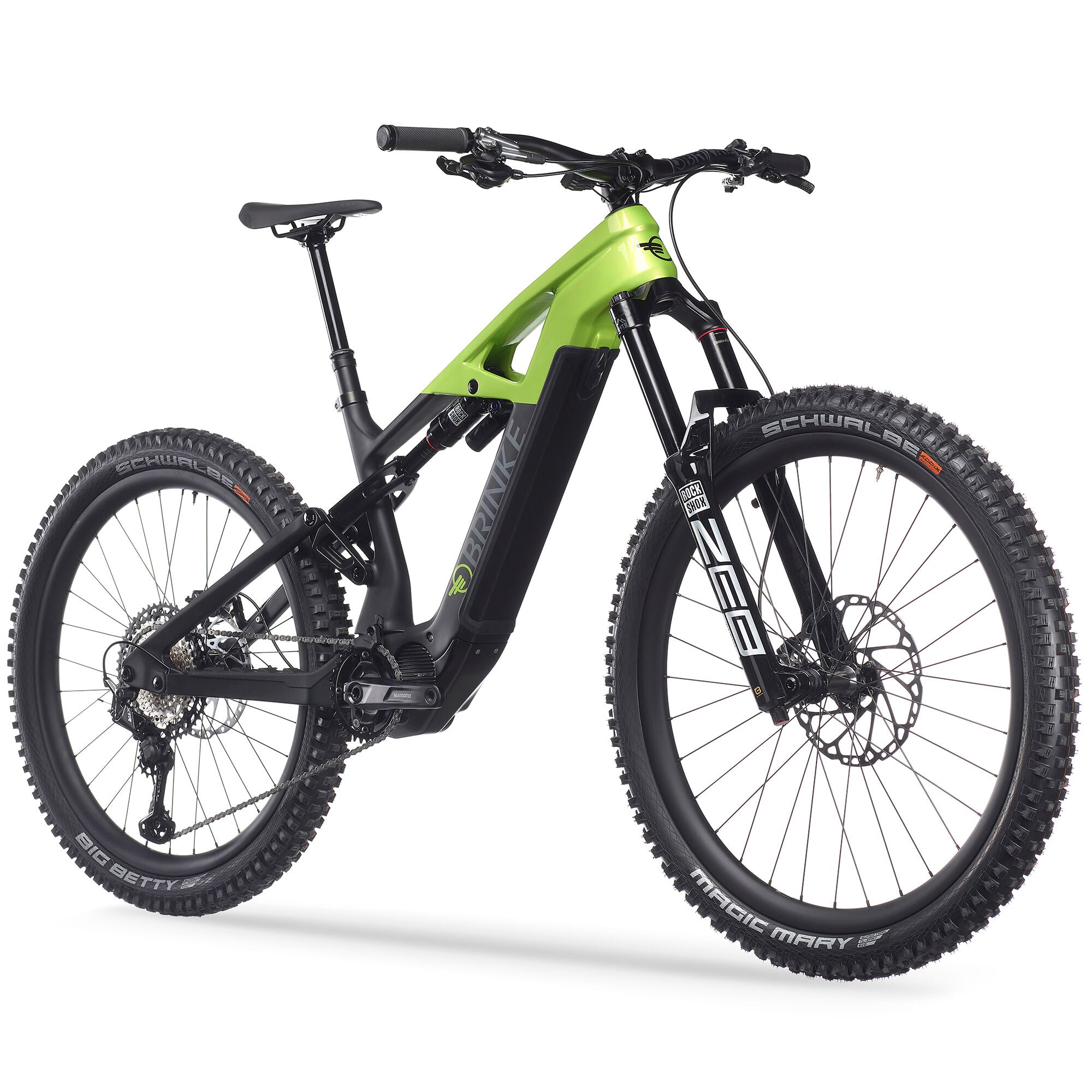

Brinke XXR Carbon Race bike

XXR CARBON features a 445mm rear stay, 65° steering angle in the Flip chip high position and increased reach, to ensure excellent handling even on the most technical terrain. The saddle angle is designed to allow bikers of different heights to maintain the same center of gravity on the ebike: 77° in size M, 77.5° in size L and 78° in size XL.

Features

• 445mm rear triangle
• 65° steering angle
• Increased reach
• The seat angle is designed to allow bikers with different heights to maintain the same centre of gravity on the ebike: 77°, 77.5° and 78°.

Tech spec

Frame

• Frame: Full Carbon frame - Rear excursion 160mm - Motor mount for Shimano EP801 - Rear wheel 27.5'', Front wheel 29'' - Internal cable routing - Steering 1.8’’ - 148mm Boost rear thru-axle

System

• Motor: Shimano EP801 250Watt-85Nm
• Battery: Darfon 708Wh
• Display: Shimano SC-EN600

Suspensions

• Rear shock: Rock Shox Super Deluxe Ultimate 205x65mm
• Fork: Rock Shox ZEB ULTIMATE 29” Solo Air 170mm, 15X110, 1.8’’ Head tube

Cockpit

• Handlebar Stem: 30 Forged AL6061 with CNC machining - Barbore 35mm, extension 45mm
• Handlebar: Diameter 34.9 - Width 800mm - 30mm rise
• Seatpost: Telescopic seatpost 31.6mm - 150mm travel for size M and L - 170mm travel for size XL
• Saddle: Fizik Terra Alpaca

Brakes

• Front Brake: Shimano XTR BR-M9120 4 Pistons
• Rear Brake: Shimano XTR BR-M9120 4 Pistons
• Rotors: 220mm Front and 203mm Rear

Transmission

• Transmission: Shimano XTR RD-M9100 SGS 12-speed
• Shifter: Shimano XTR BR-M9120 4 Pistons
• Cassette: Shimano CS-M8100-12 speed 10-51T
• Chain: Shimano CN-M8100-12 speed with quicklink
• Crankset: Shimano FC-EM900 160mm
• Chainring: Shimano SM-CRE80-12-B 34T

Wheels

• Front Hub: Shimano XTR HB-M9110-B - 15x110 - Center lock
• Rear Hub: Shimano XT FH-M9111-B - 12x148 - 12-speed Microspline - Center lock
• Front Rim: Full Carbon 29'' - Internal width 32mm
• Rear Rim: Full Carbon 27.5'' - Internal width 32mm
• Front Tire: Schwalbe Magic Mary 29x2.6
• Rear Tire: Schwalbe Big Betty 27.5x2.6

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
