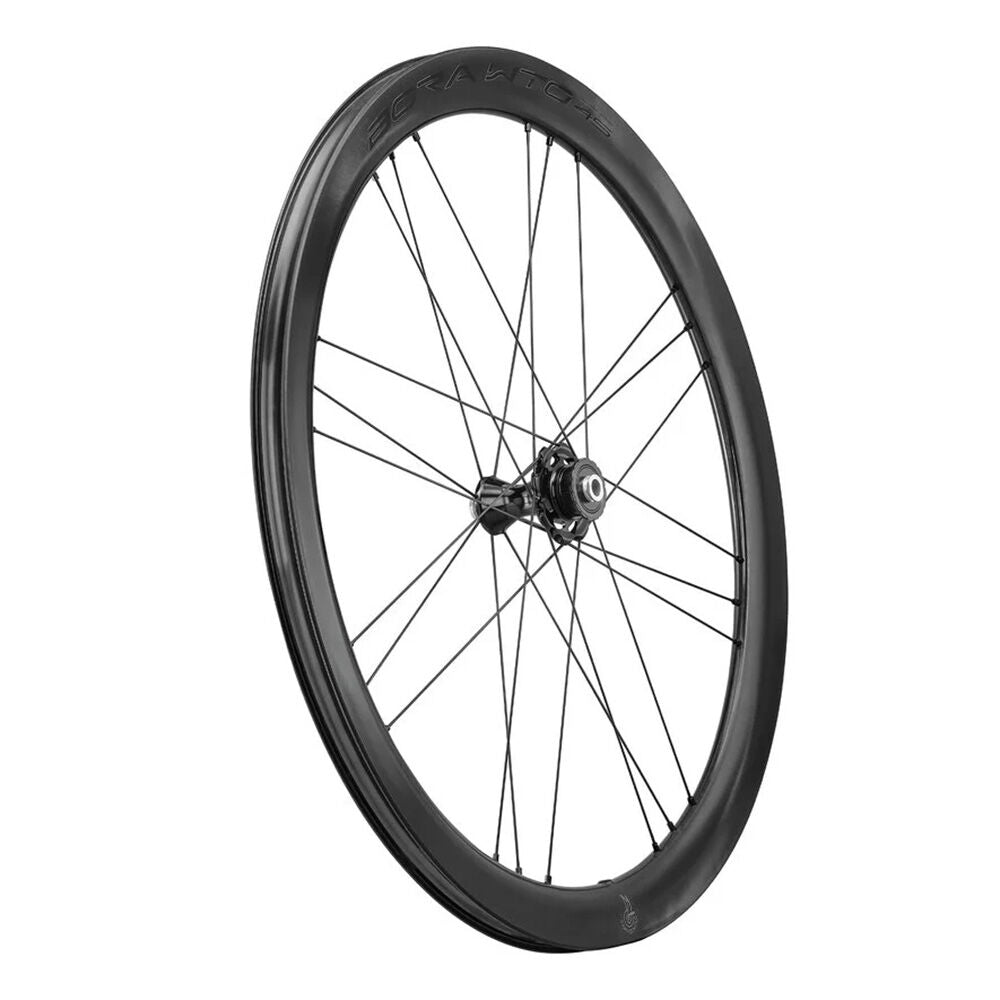

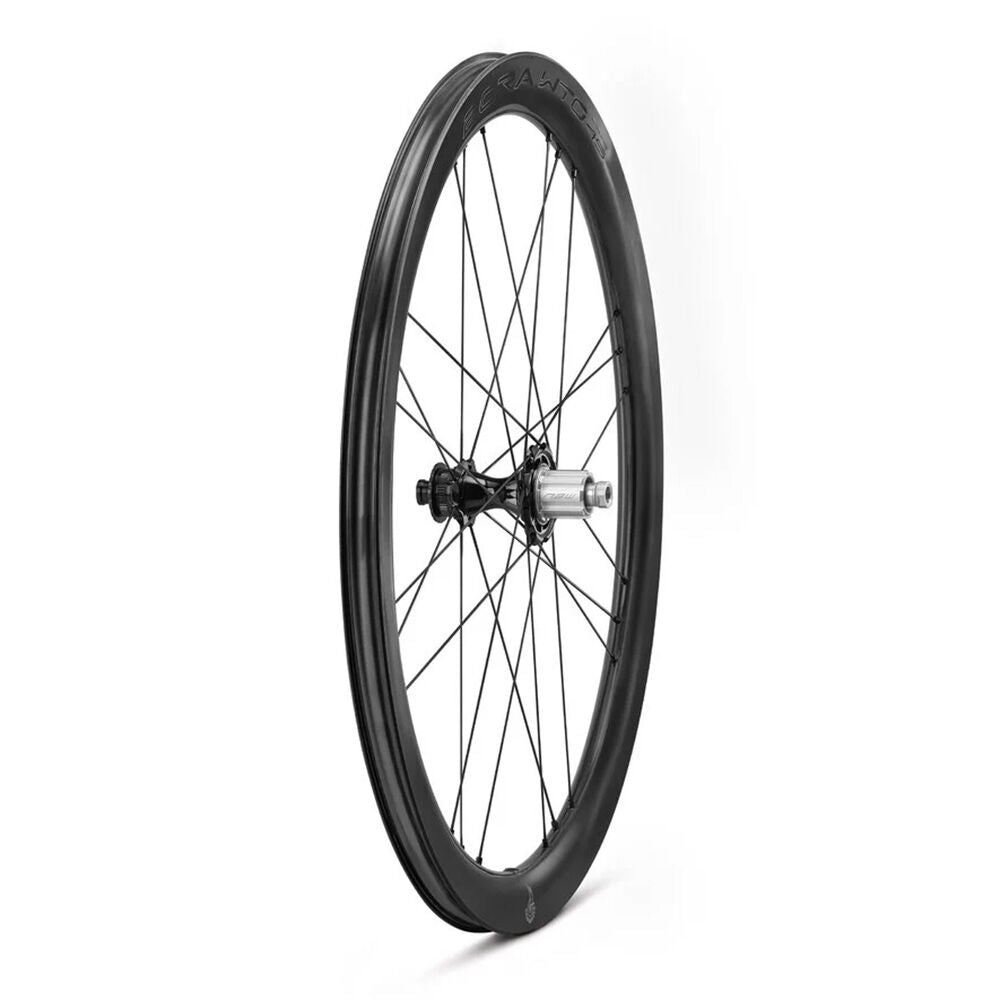

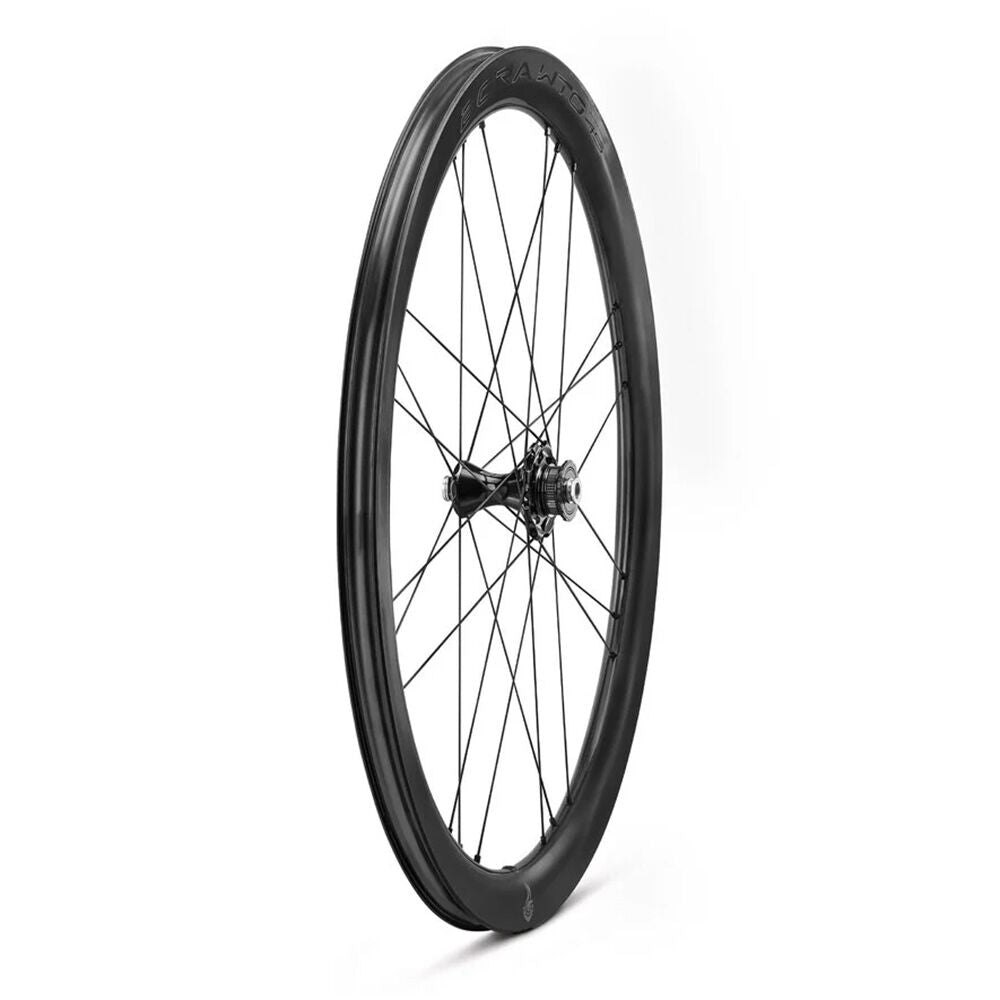

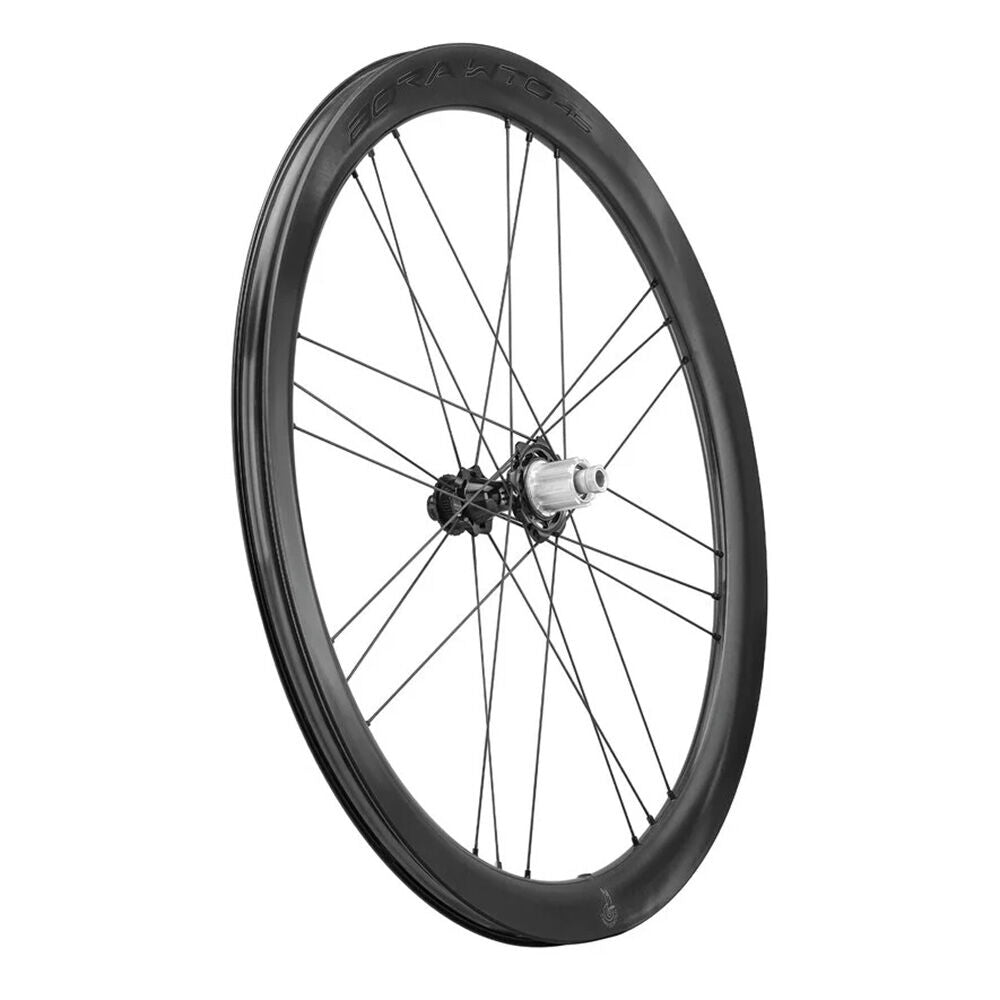

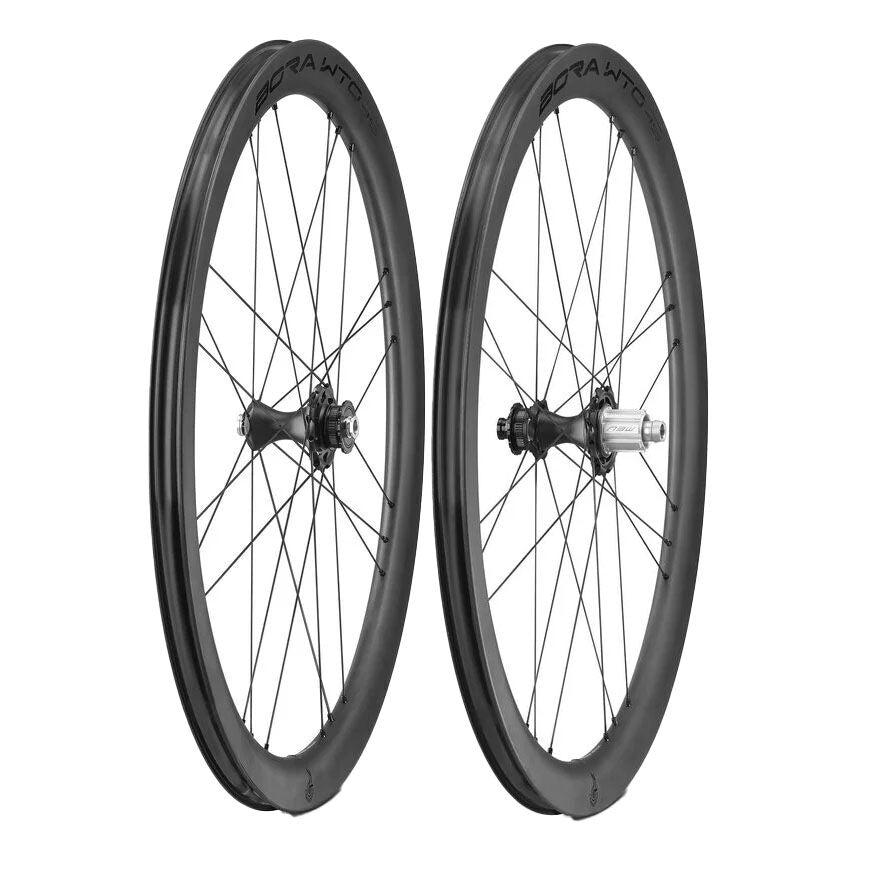

Campagnolo Bora Wto 45 Db C23 wheels

Campagnolo offers the most modern release of the top-of-the-line carbon wheels that have enchanted the most demanding cyclists around the world over the years. The famous Bora Ultra WTO and Bora WTO models are thus enriched with stunning design elements in the three different profile heights. BORA WTO 45 DISC BRAKE represents the ideal combination of stability at high speeds and manoeuvrability on the most technical courses, with a significantly reduced weight compared to the previous model and a geometry that conveys an unprecedented feeling of control.

Maximum control even at extreme speeds
Experience a feeling of absolute control. The unmistakable G3 spoking guarantees maximum stability and precision when cornering, as well as giving you an extraordinary, high-end look. The wide C23 rims, on the other hand, designed to fit thick tyres, are ideal for flying through tight corners and helping you create the perfect trajectory.

Lightness for responsive changes of pace
Experience a feeling of total weightlessness. The BORA WTO is made of H.U.L.C. (handmade ultra-light carbon), with N3W freewheel hub and C-LUX finish without paintwork. This magnificent combination reduces the weight by over 100 g on all profile heights compared to the previous model.

Unrivalled aerodynamics
Become one with the speed. Launch into powerful sprints and save energy while drafting. The combination of an aerodynamically optimised rim profile with Mo-Mag technology ensures an overall reduction in drag force. The rim's distinctive ‘drop-shape’ profile takes its cue from the most aerodynamic shape found in nature - the drop of water - to offer exceptional comfort and performance.

Technical specifications

Spokes

• 24 steel spokes with elliptical aero section at the front grouped with G3 system
• 24 steel spokes with elliptical aero section at the rear grouped with G3 system

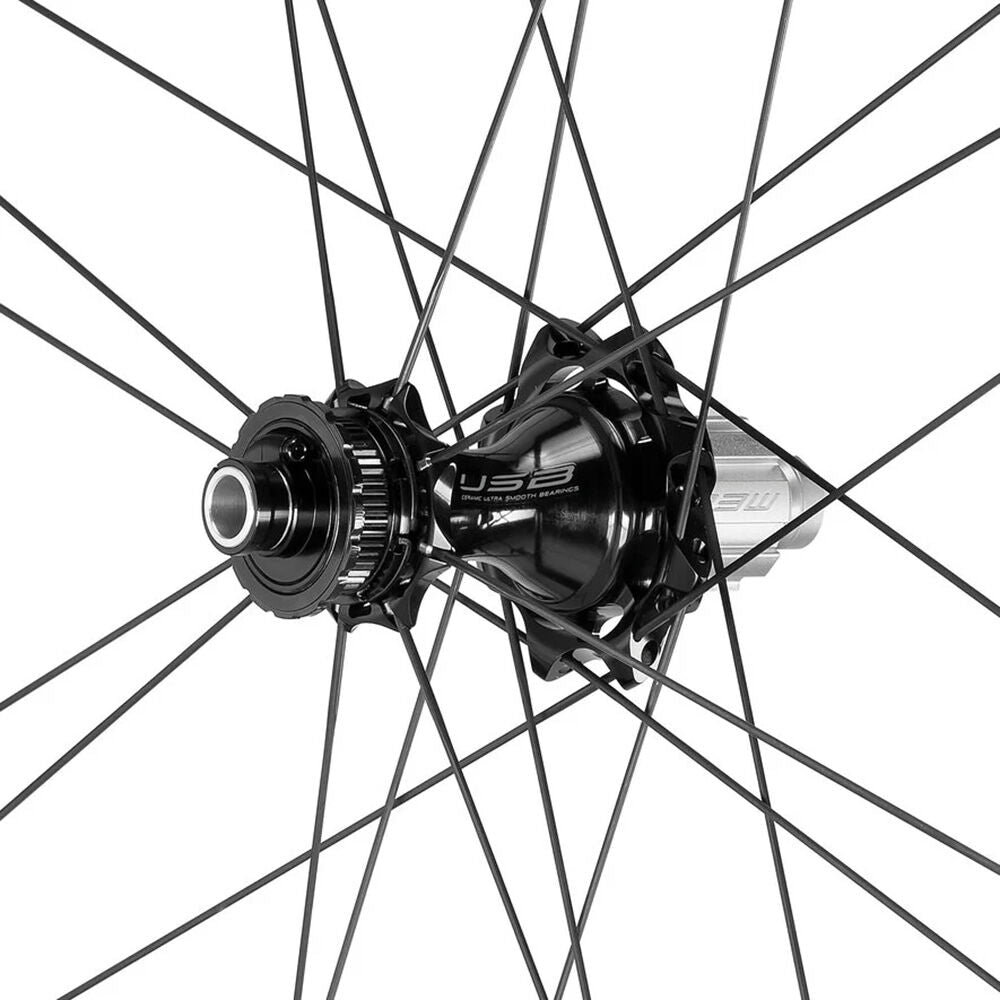

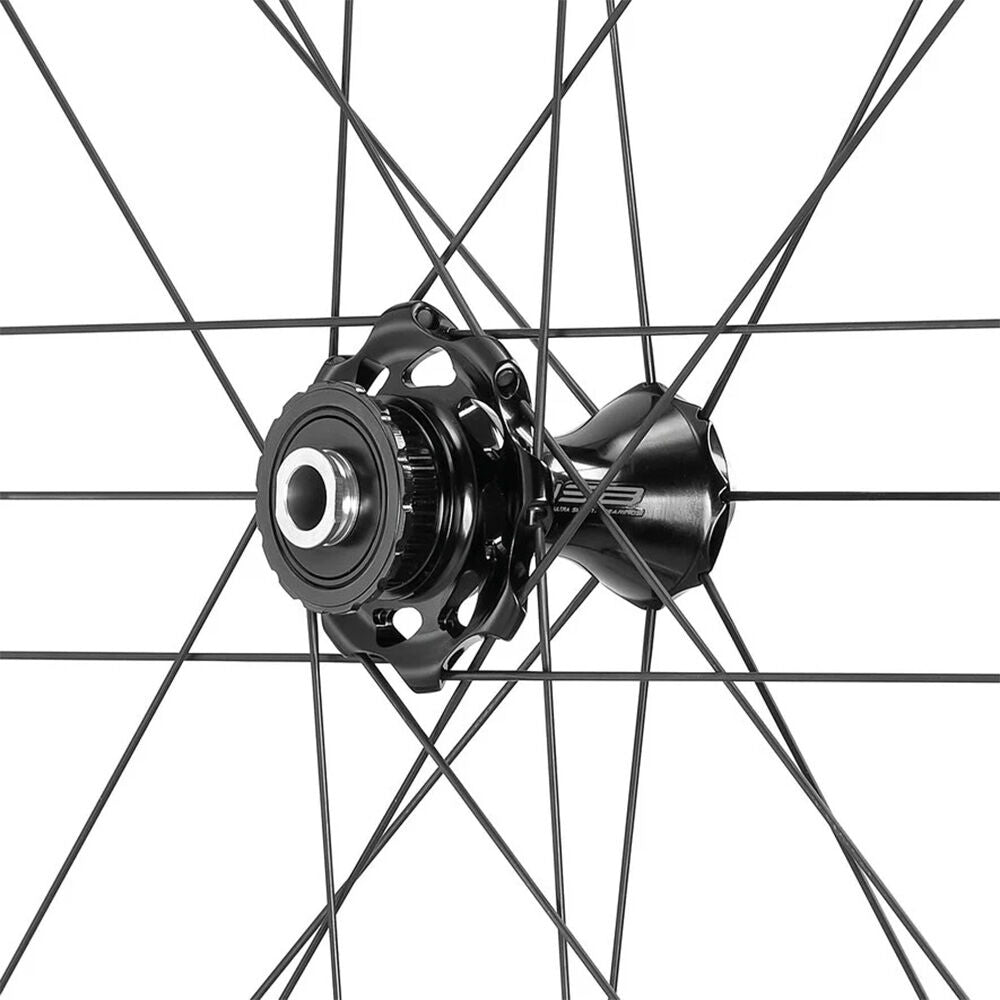

Hub

• Monolithic hub in Aluminium Black
• Cone-shell USB
• Hub stop: 100 mm front, 142 mm rear
• Stud material: aluminium
• Bearing system cone/shell
• N3W

Rim

• Profile height 45 mm
• Rim material: Carbon
• Rim cross-section (ht/larg): 45/29.0 mm
• Inner rim width: 23 mm
• Water Transfer Graphics

Assembly

The Bora™ WTO™ 45 Disc Brake wheel is completely hand-assembled by a specialised Campagnolo® operator and is 100% controlled using electronically controlled tools. This procedure guarantees the maximum performance and reliability of every single Campagnolo® branded wheel

Included

• Tubeless Valve
• Valve Extension
• Valve Reduction Bush

Technologies

N3W
N3W, which stands for NEXT 3 WAYS, is a patented freewheel body standard engineered to accommodate 11, 12 and 13 speed cassettes with 9, 10 and 11 teeth, yet maintaining compatibility with older 9- and 10-speed cassettes.

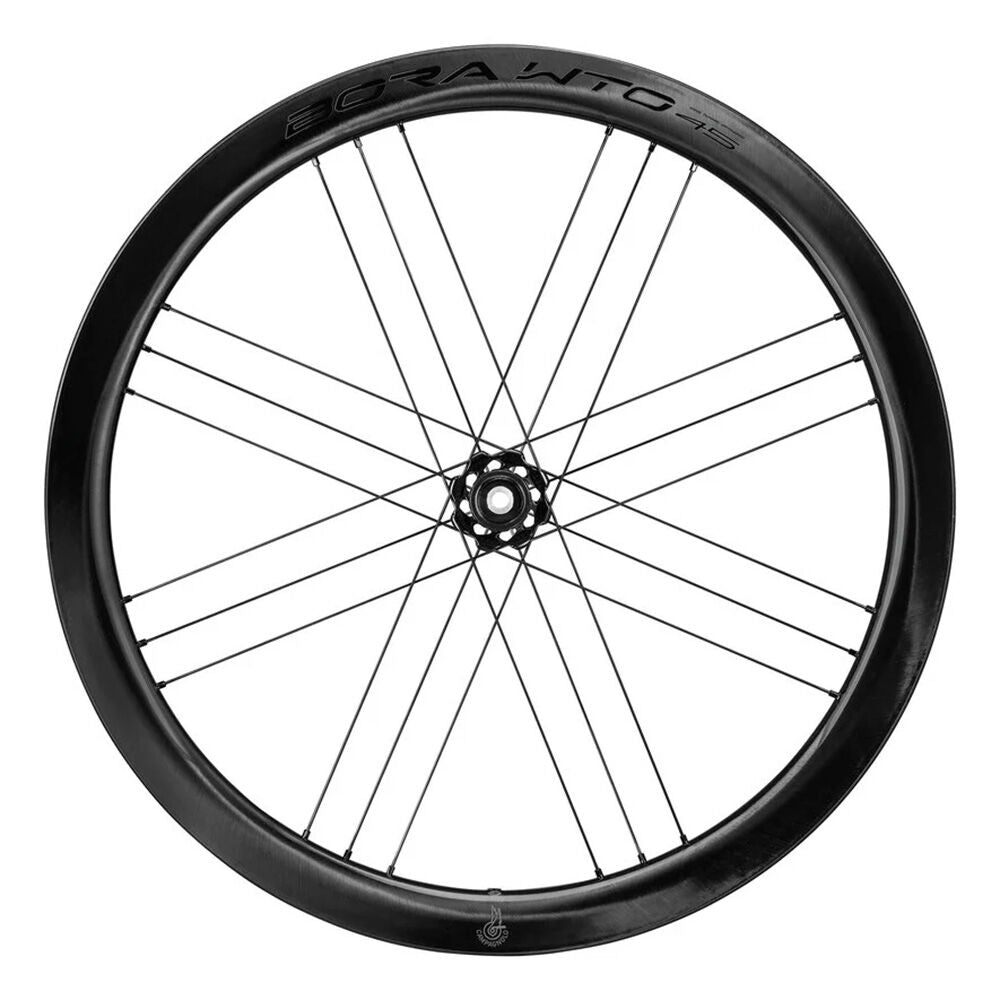

GEOMETRY OF SPOKES G3
Campagnolo's iconic G3 geometry represents a challenge to the conventional configuration of racing bike wheels. Groups of three straight-headed parallel spokes are in fact arranged in a 2:1 ratio.
