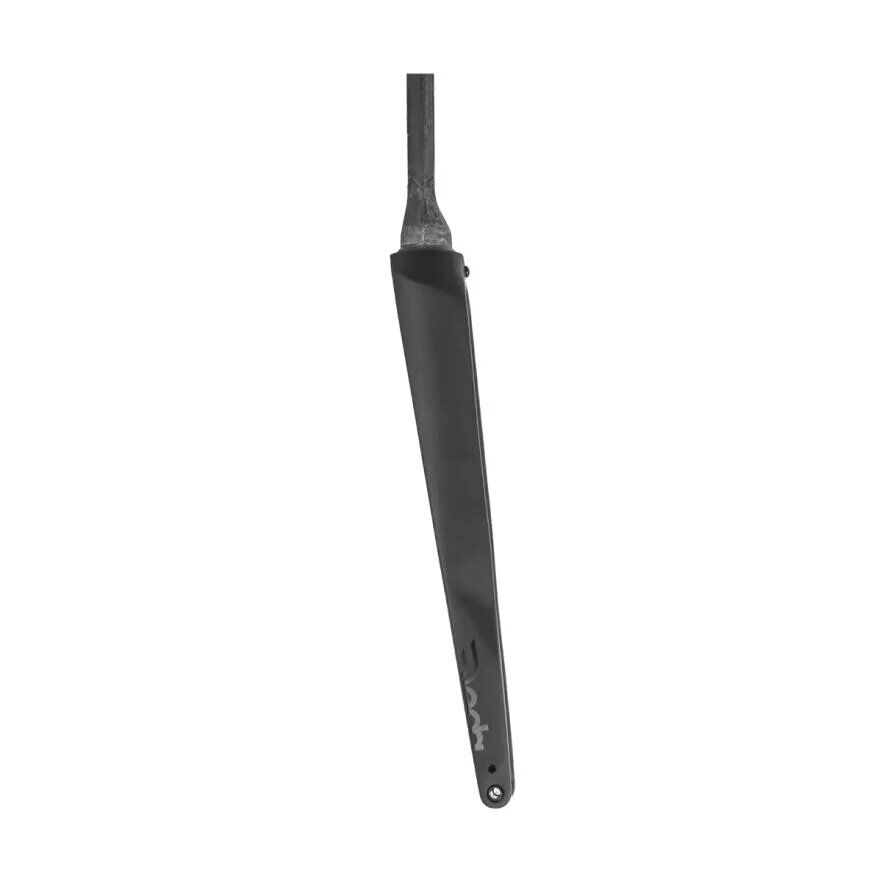

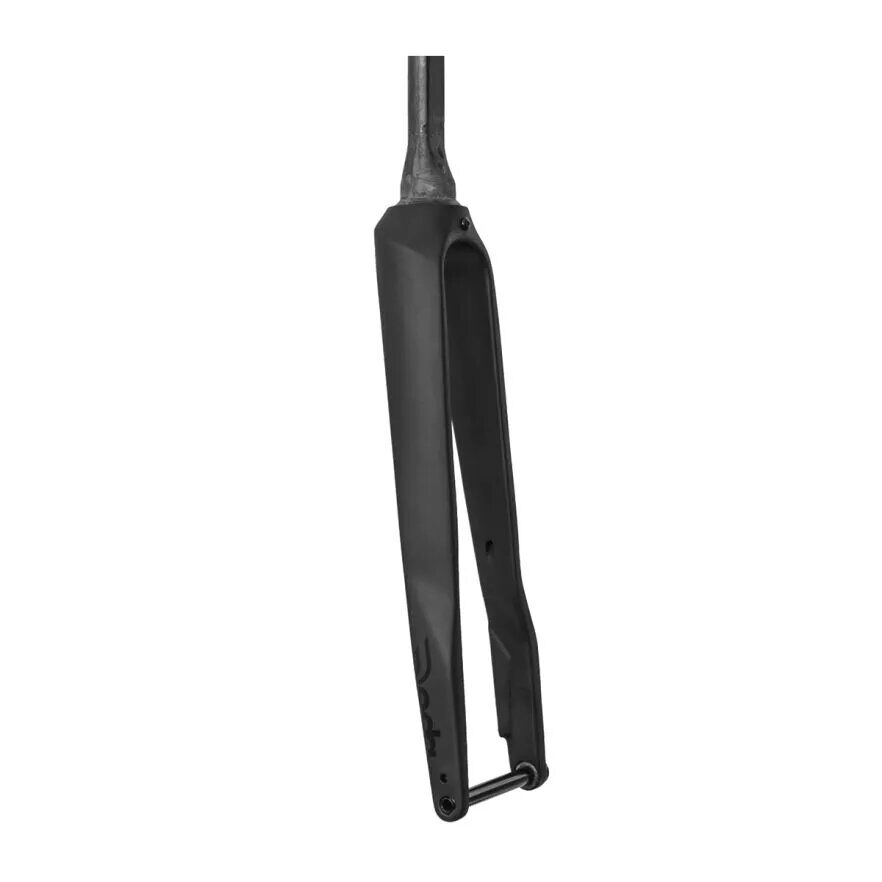

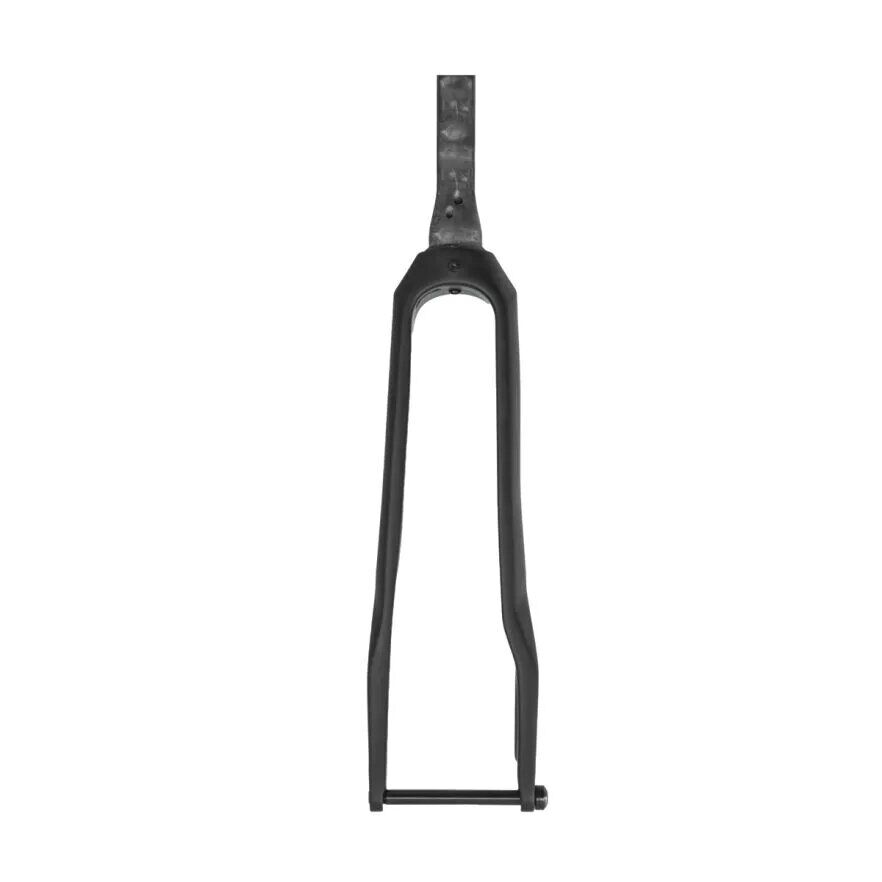

Deda Gera EDG Gravel D-Shape DCR POB fork

Gera EDG is a superlight gravel fork under 500 grams with a clean design and perfect for all road use. Straight blades for superior reactivity on fast gravel or paved roads. The first gravel fork fitting also a 180mm rotor disc and designed to allow the integration of the cables inside the frame thanks to a D-shape fork steerer and the DCR system. It is compatible with most of bicycle frames on the market, both carbon and metal. It features a full carbon construction with an integrated 45° crown race. Tire clearance up to 45mm (28”) or 50mm (27.5”). It is ready for dynamo hubs (i.e. SON®) for optimal integration of the electric cables inside the fork.

Technical specifications

• Material: Full carbon fiber, UD finish
• Fork steerer: 1” 1/8 with D-shape and integrated 45° crown race
• Steerer length: 350mm
• Axle-crown lenght: 395mm
• Rake: 50mm
• Axe compatibility: 100x12mm thru-axle (included)
• Crown diameter: 56mm
• Disc brake rotor compatibility: flat mount, 160mm or 180mm
• Max. fork load: 15 kg per side (5 kg per eyelet)
• Finish: UD carbon with POB logo
• Accessories included: thru-axle (M12xP1.5x120), D-shape custom expander and topcap
• Note: fender mounts, ready for SON®-dynamo hub
• Frames compatibility: any bicycle frame featuring internal cable routing system and fitting Deda DCR headset, Deda Classic 1 o tapered 1” 1/8-1.5” or 1” 1/4 -1.5”
• Stems compatibility: all the Deda Elementi stems are compatible or the stems with a large opening between the fork steerer and stem body to allow the internal cable routing
• Wheel and tire compatibility: 622x45 (28”x1.7”), 584x50 (27.5”x2.0"), depending on tire/rim manufacturer
• Internal cables routing: with a standard stem up to 3 cables (two brakes housing cables and mechanical/electronic shifting cable); with a DCR stem up to 4 cables (two brakes housing cables and two shifting cables)
• Minimum Tire Clearance at fork blade: 7mm (28”x1.7”), 6mm (27.5”x2.0")
• Producer weight: 498g
