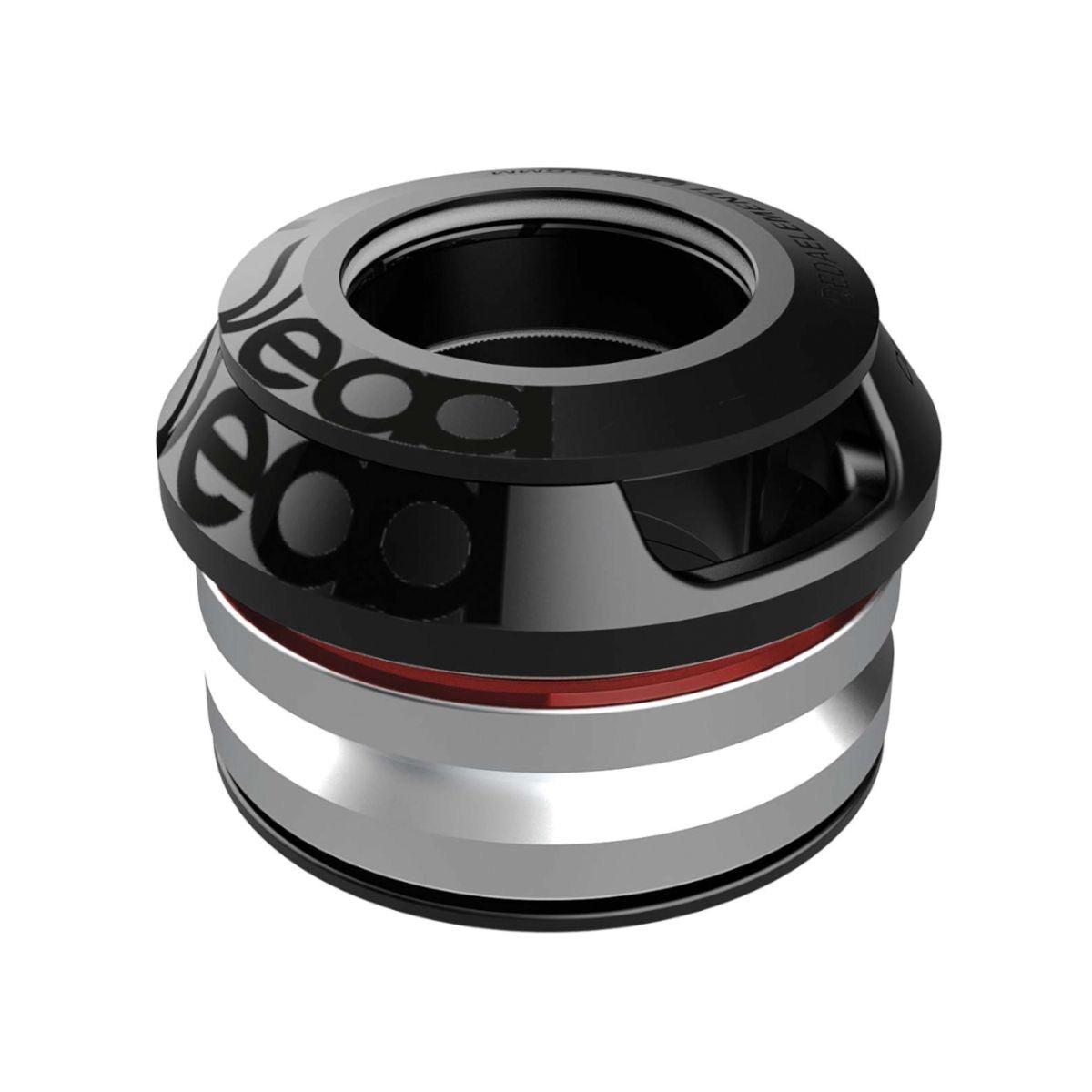

Deda S-DCR 1.5" headset

S-DCR model is an Integrated headset compatible with DCR system (Deda internal cable routing) that allows the direct cable routing into the topcover. This solution makes any Deda stems fitting a DCR frame, a quick and smart solution for most of bicycle brands. It allows the full integration of the cables ,like the DCR headset, but leaving a portion of the cables visible under the stem. The system works with a standard tapered fork steerer (1-1/8” - 1.5”) and requires a 52mm (1.5”) upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The S-DCR headset is also compatible with Deda HSS spacers for a better integration.

Features

• Real weight: 102 g.
• Headset model: Integrated 1.5” - 1.5”
• Bearings type: Angular contact bearing; chrome steel
• Bearings size: Upper 51,9 × 40 × 8 mm / Lower 51,9 × 40 × 8 mm
• Contact angle: 45° x 45°
• Headtube diameter: 56.0 mm
• Fork steerer: Tapered 1 1/8” (28.6 mm) - 1.5” (38.10 mm)
• Top cover: 56 mm
• Crown race diameter: 39.8 mm aluminum
• Stack height: 16.2 mm
• SKU: HDS-DCRX

Note: Compatible with 4 cables routing; DEDA HSS spacers are recommended for S-DCR headset.
