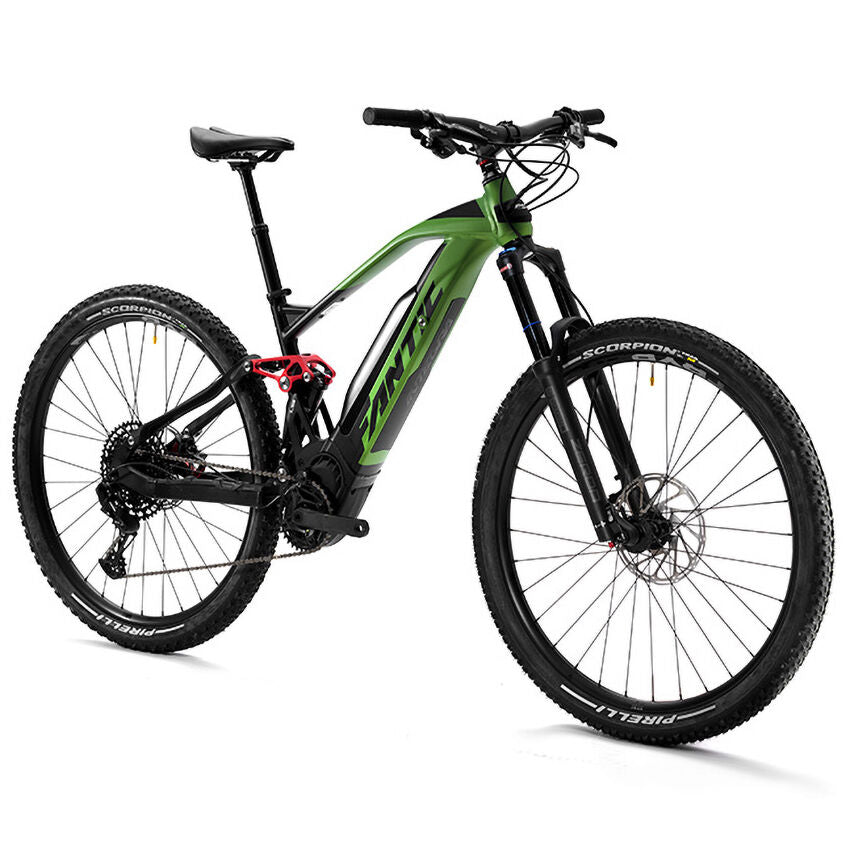

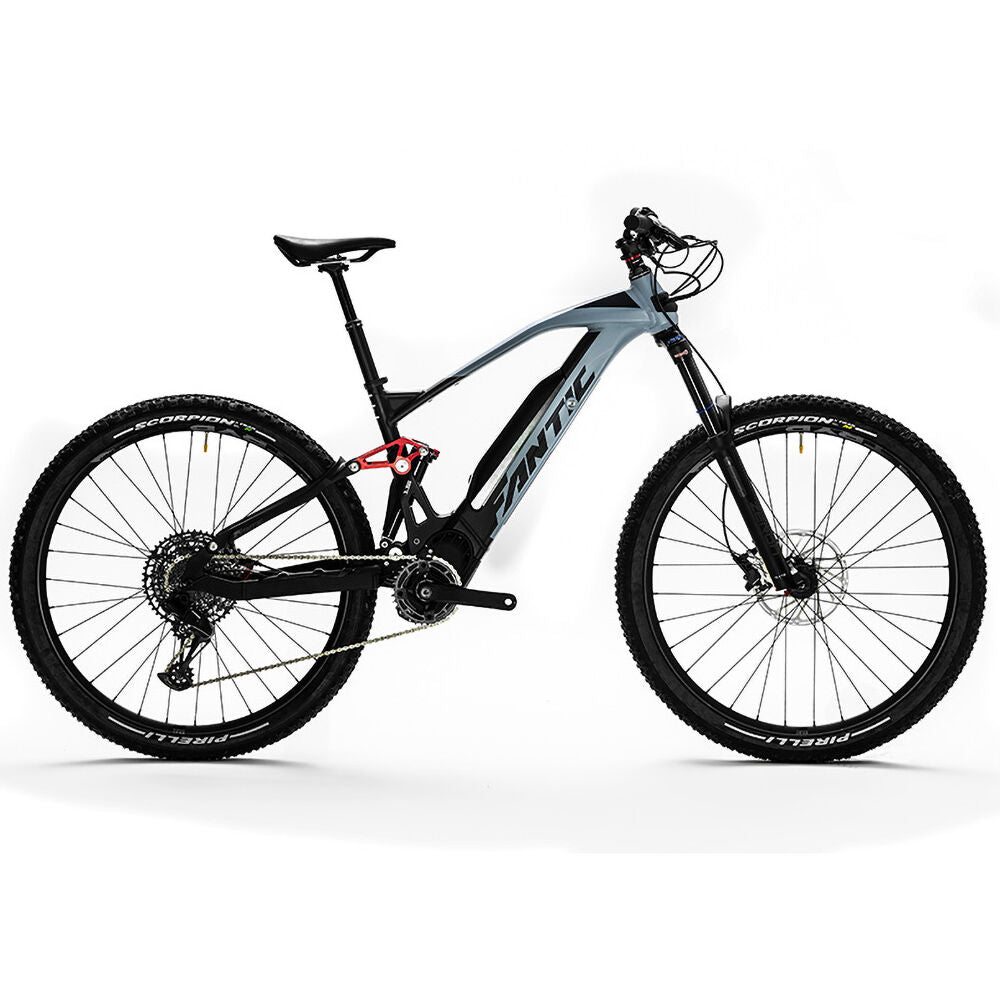

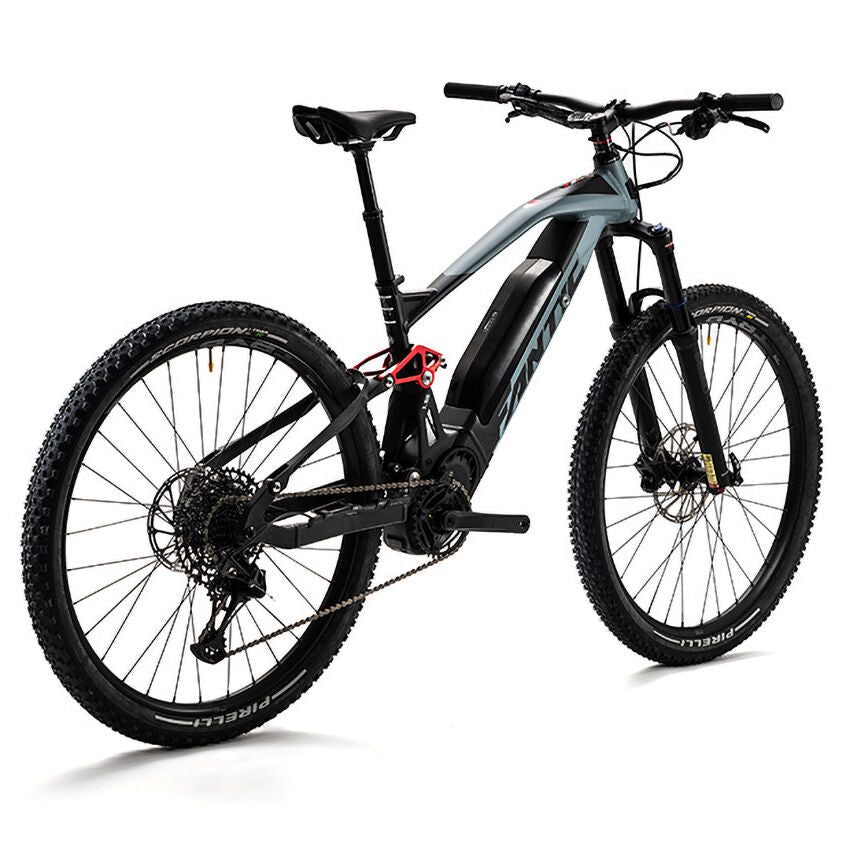

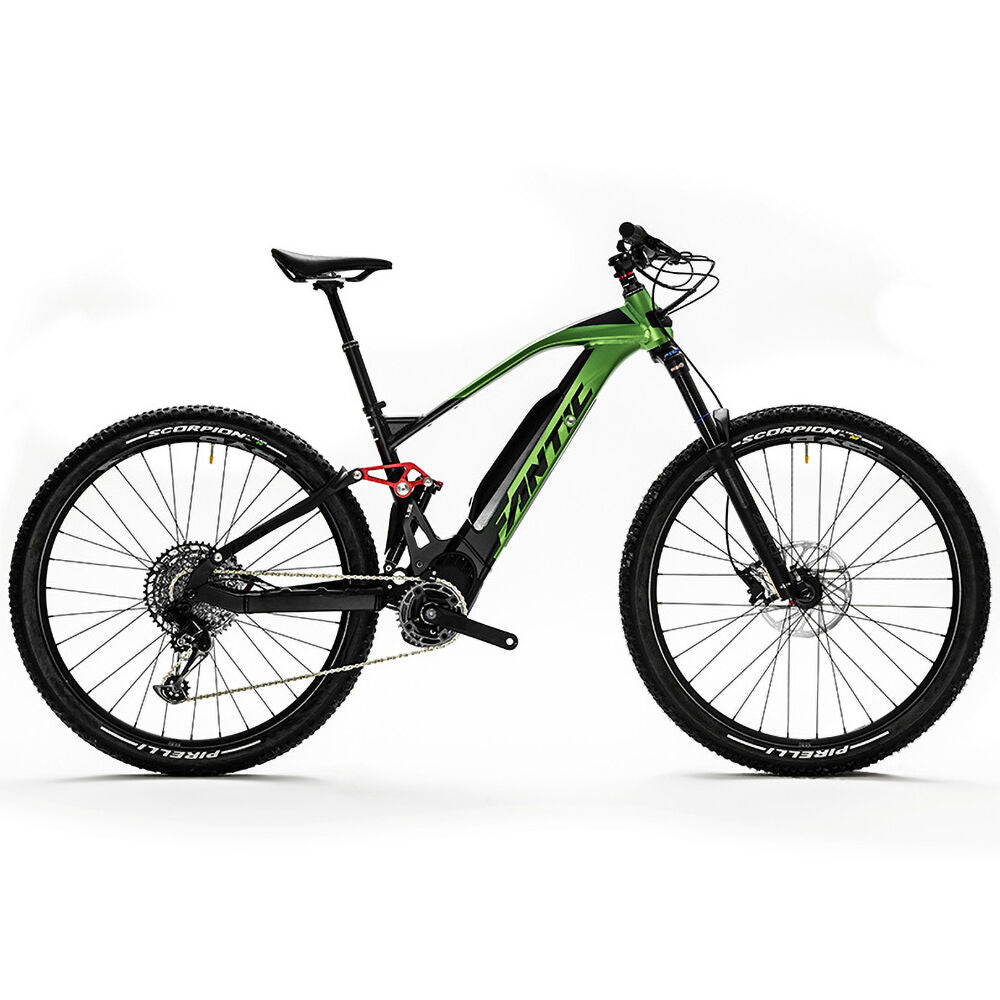

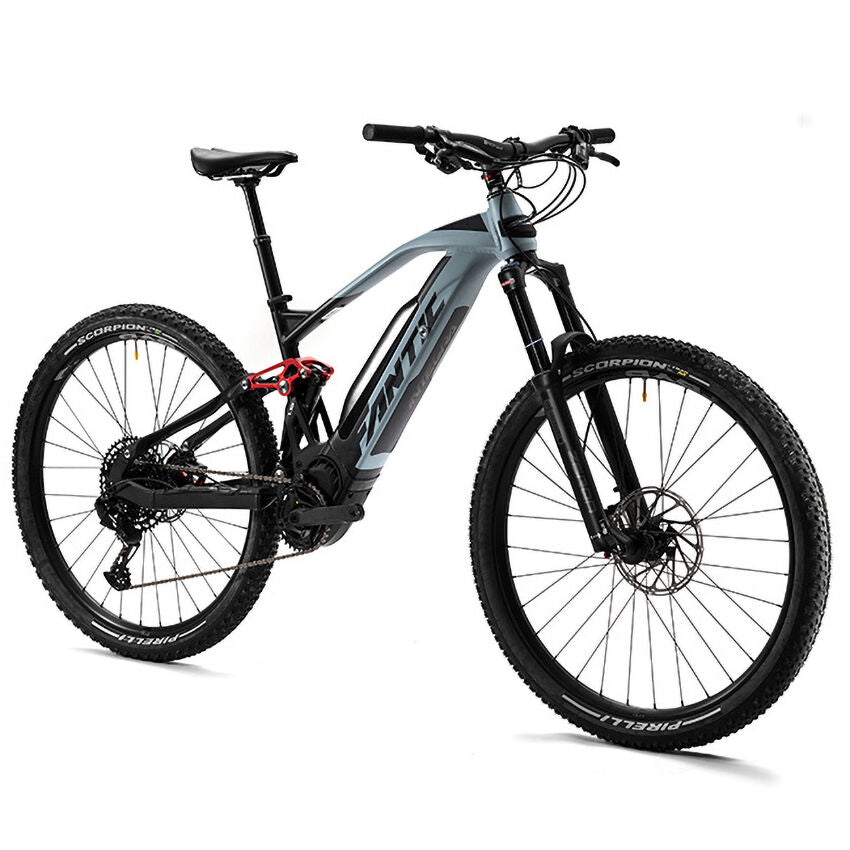

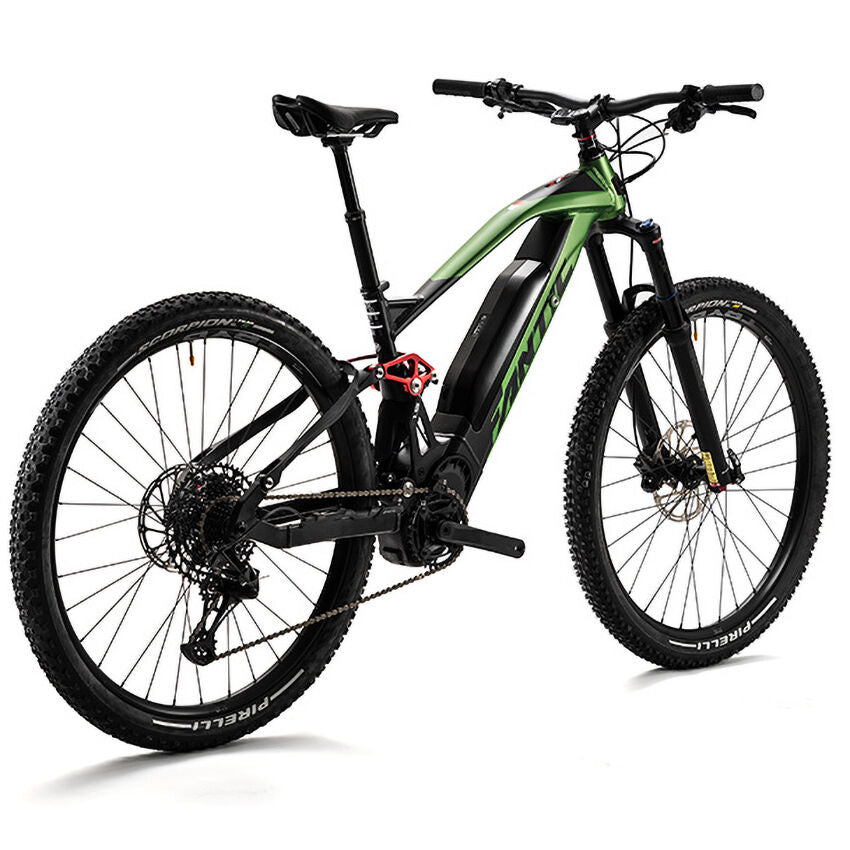

Fantic XTF 1.5 Yamaha

Boundless: Dominate all kinds of trails. This aluminum-framed version is the beginning of a new generation of mountain bikes that improves performance and control.

Yamaha's new PW series S2 unit power is the smallest, most powerful and lightest electric motor for e-bikes dedicated to the Trail segment. Instantaneous torque is 75 Nm and the weight is only 2.85 kg. The automatic mode supporting 5 levels of pedaling assistance and zero cadence technology gives the Rider an easy, fun and intuitive riding experience that is truly suitable for all riders. This motor features Yamaha's exclusive electronic control technologies that ensure high performance with smooth and natural acceleration with every pedal stroke, where quality and reliability are guaranteed. The exclusive 630 Wh battery designed by Fantic, allows you to extend your rides, for limitless fun.

Frame design
The optimized layout of the motor and battery pack makes it easier to ride the e-bike. Fantic places motor and battery close to the bike's center of gravity ensuring better weight distribution and therefore more stability and handling.

F.E.M. analysis.
FEM analysis and repeated structural and fatigue tests are applied in frame design. The geometries and thicknesses in the various frame sections are thus optimized to achieve the right stiffness without aggravating the weight.

Strut
A new rear wagon strut technology made of “injected composite” material, developed by the collaboration of Fantic's R&D department with Acerbis, allows better response to all types of terrain and a unique design.

Technical Specifications

• Motor: Yamaha PW S2, Torque/Torque: 75 Nm
• Battery: Fantic, Lithium Ion, 36 Volts, 630Wh
• Display: Yamaha Interface X
• Frame: Aluminum, Sizes: S - M - L
• Fork: Suntour Zeron 35 150mm
• Shock Absorber: Suntour Edge-R Plus
• Sprocket: Sram 34t
• Cranks: FSA 165mm
• Front derailleur: Sram SX
• Gear shifters: Sram SX Eagle
• Cassette: Sram SX, 12V, 11-50
• Chain: Sram SX
• Front brake: Sram LEVEL 2 Piston disc brake
• Rear brake: Sram LEVEL 2 Piston disc brake
• Front disc: SramCenterLine, 200mm - 6Hole
• Rear disc: SramCenterLine, 180mm - 6Hole
• Front tire: Pirelli SCORPION ProWall Trail -M- 29 “x 2.4
• Rear tires: Pirelli SCORPION ProWall Trail -R- 29 “x 2.4
• Wheels: Rodi TRYP30 - 29”
• Handlebar: Promax-760mm-Rise 18mm-ø31.8
• Stem: Promax-60mm-Rise+6°-ø31.8
• Seatpost: Promax Telescopic Ø30.9
• Saddle: Selle Italia MODEL-X Comfort Superflow 145
