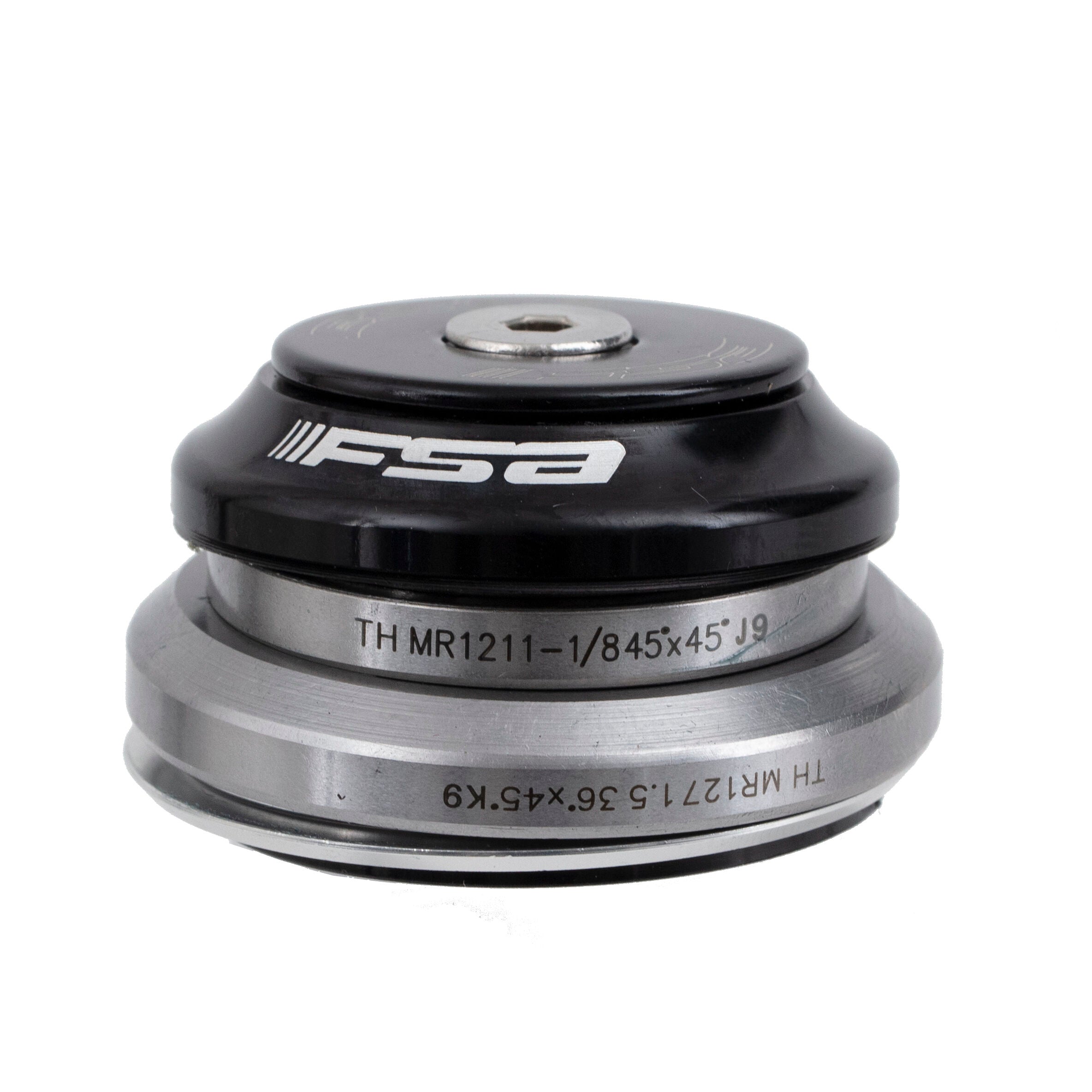

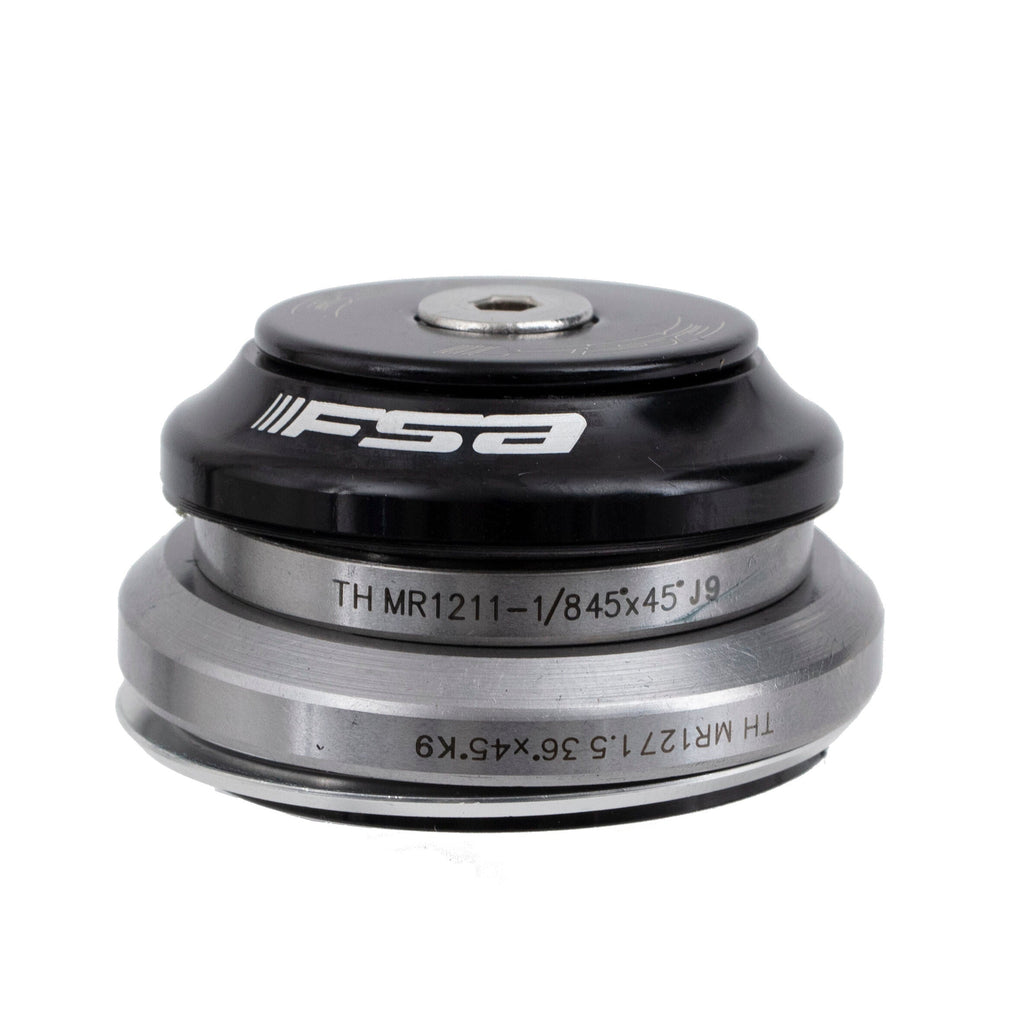

FSA Orbit n°42 C-40/ACB-A integrated tapered headset

FSA Orbit C-40 ACB Headset for 1-1/8" - 1.5" fork, N.42.

Features

• Tapered steerer: 1-1/8" to 1.5".
• For tapered 46 mm / 56 mm OD headtube.
• For tapered 42 mm / 52.1 mm ID headtube.

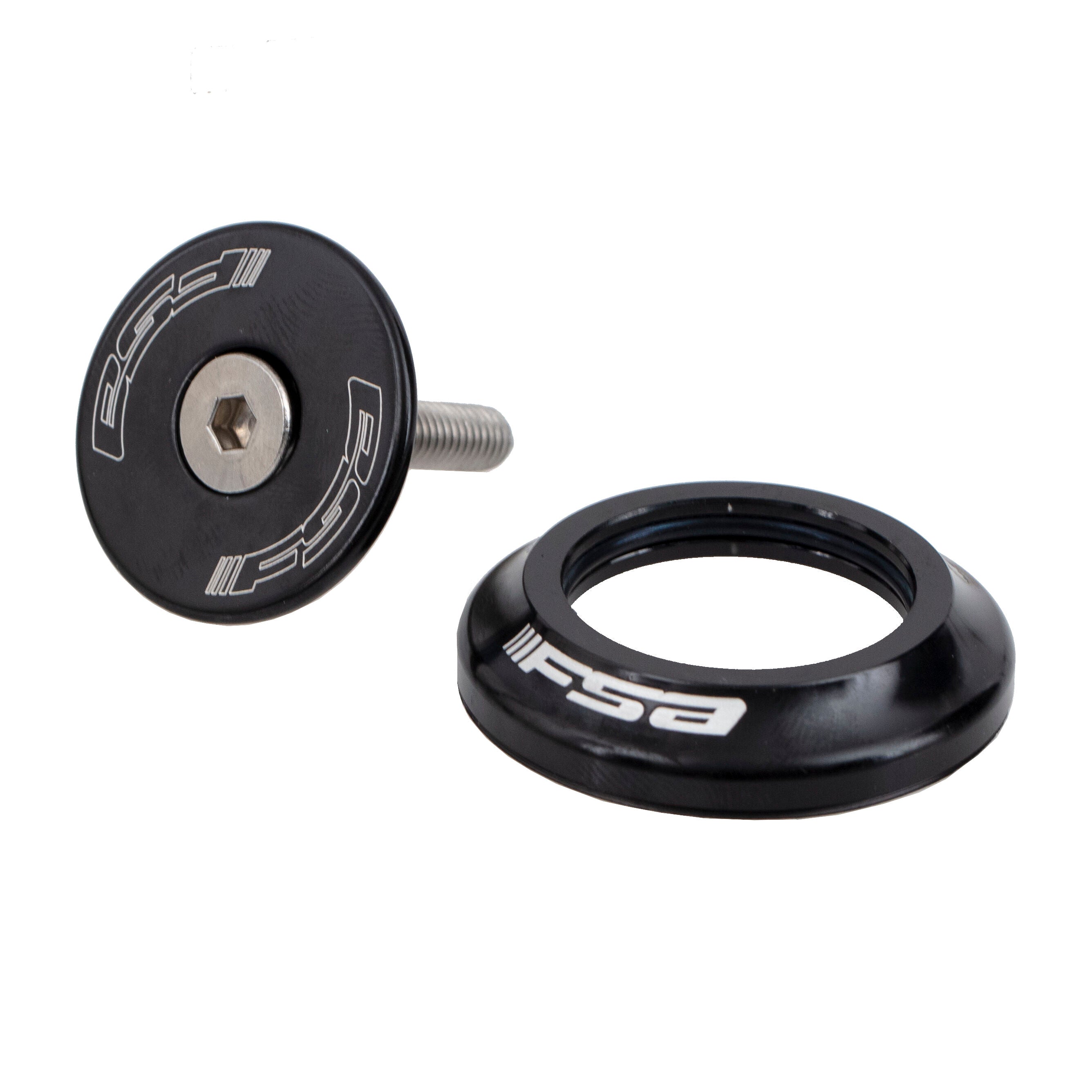

• Aluminium top cap 8.7 mm.

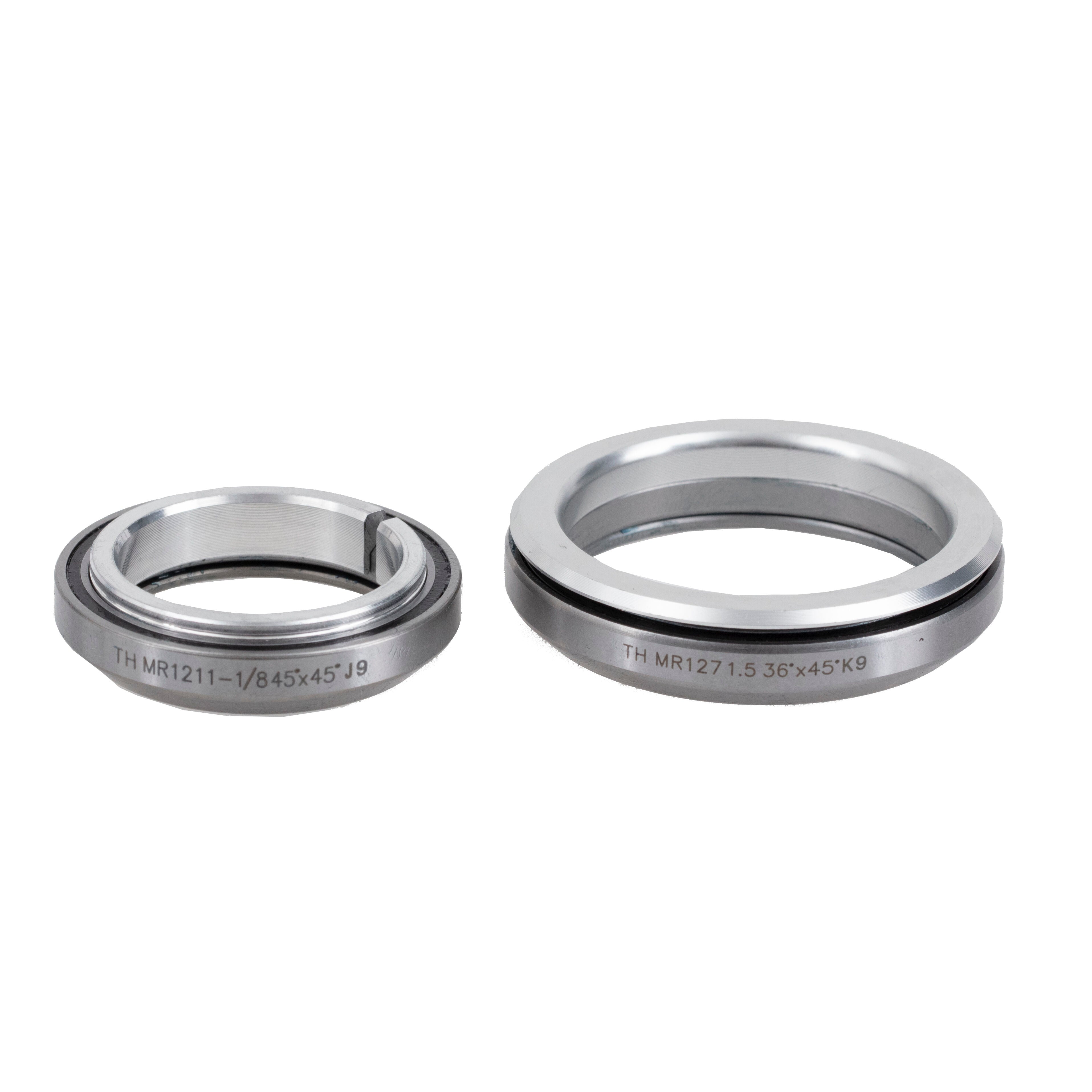

• Upper bearing: 1-1/8" 45° x 45° (ACB, black seal).
• Lower bearing: 1.5" 36° x 45° (ACB, black seal).
• Bearings outer diameter: 41.8 mm / 51.8 mm.
• Bearing inner diameter: 30.5 mm / 40.0 mm.
• Bearings height: 7 mm.
• Stack height: 15.5 + 0.8 = 16.3 mm.
• Real weight: 98 g.

Note: To find the correct headset you need to refer to the code imprinted on the bearings of the previously mounted headset or have a look on the technical data on the frame in your possession.
The choice of headset can also be carried out by knowing the measures of the frame.

• OD (Outer Diameter): Is the measurement referred to the external diameter of the head tube, top and bottom respectively.
• ID (Inner Diameter): Refers to the internal diameter of the head tube, top and bottom respectively.

Star nut included.
