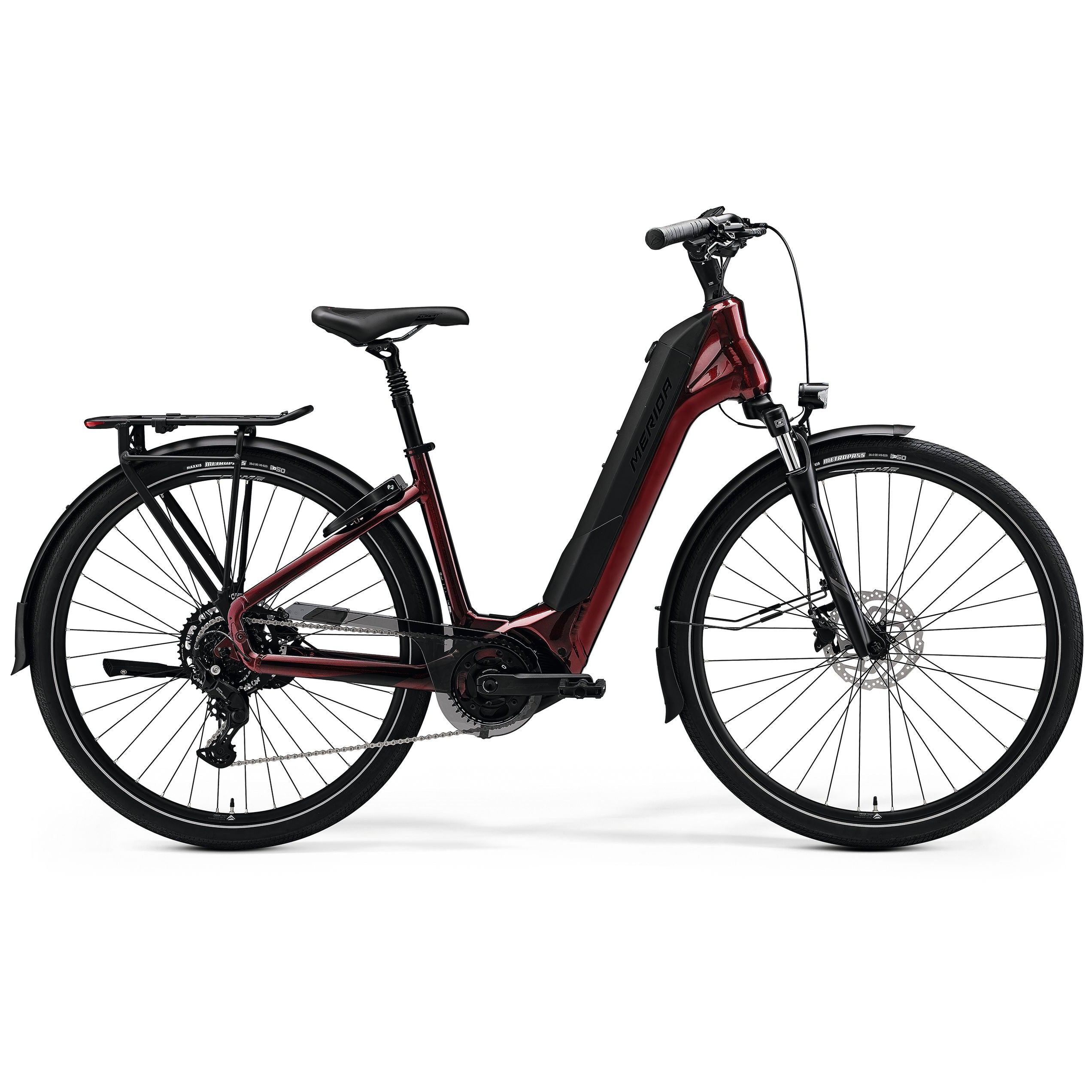

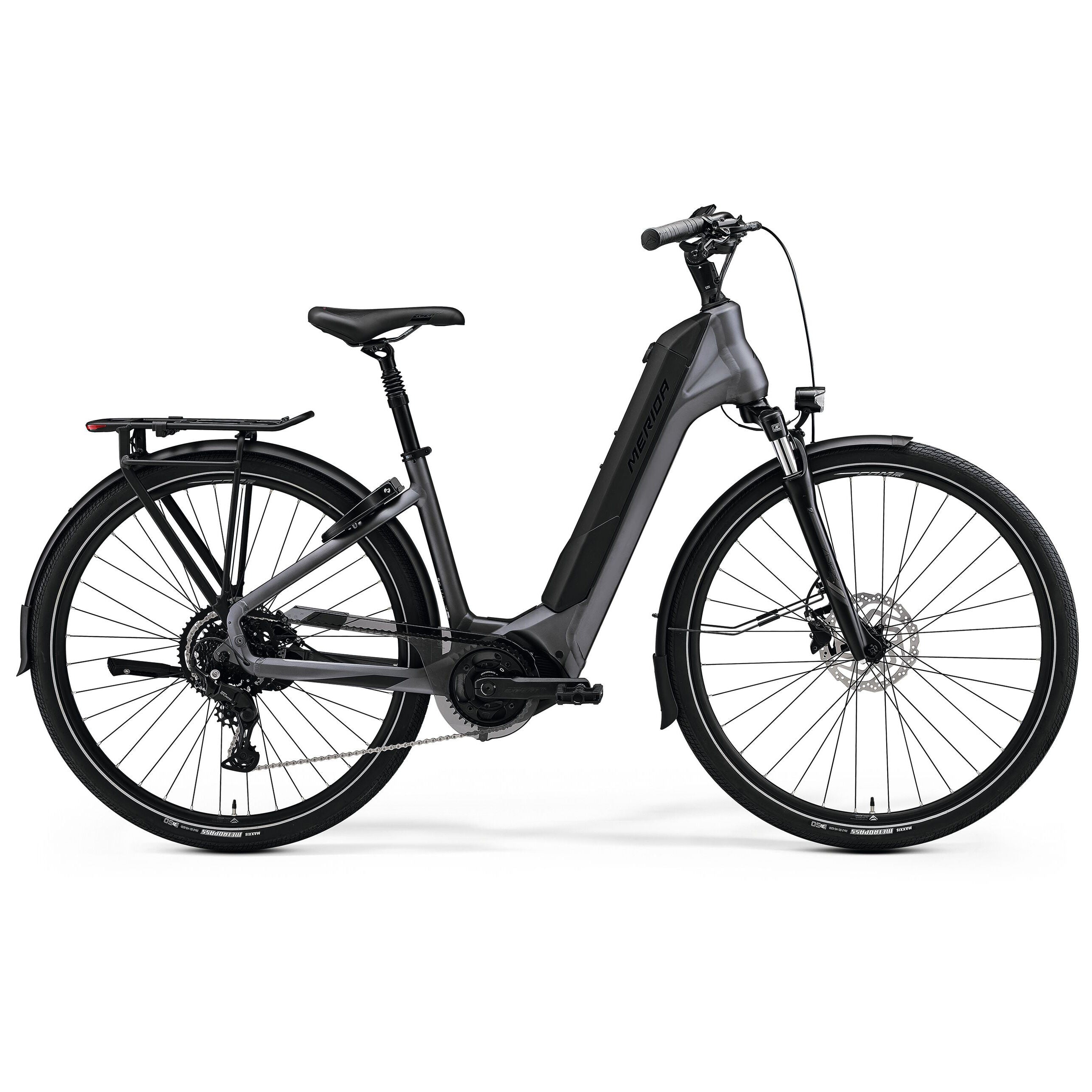

Merida E Spresso City 400 EQ IV1

The smart way to get around town with the latest low-slung frame combined with high-value, high-functionality kit. That means a 504 Wh internal battery plus a proven Shimano drivetrain and gears. The eSPRESSO CITY 400 EQ pairs the latest low-slung, smart and stiff frame with an internally mounted 504 Wh battery and dedicated Shimano E6100 trekking drive unit to deliver impressive functionality at a very attractive price. With components chosen to offer the best balance between performance and price, it is the smart way to get around town. The 9-speed Shimano drivetrain and powerful hydraulic brakes won't let you down, while the bike comes with guards, rack, lights, lock and kickstand as standard, meaning you don't need expensive add-ons to get started. Life in the city can be hectic, so anything that allows you to make the best use of your time must be a good thing. eSPRESSO CITY is ideal for getting you where you want to go smoothly and comfortably, thanks to its smooth but powerful pedal-assist motor, comfortable low frame and standard equipment such as lock, mudguards, lights and luggage rack that make getting around the city much easier.

Technical specifications

Chassis

• eSPRESSO CITY LITE II
• material: aluminium
• 700x50C (with mudguard) maximum wheel size
• 135x9mm standard axle
• internal

Fork

• SR Suntour NEX E25
• Coil
• 63 mm suspension travel
• 700x52C maximum wheel size

Brakes

• Shimano MT200
• 2 pistons

Discs

• Shimano RT10 / Shimano RTEM300
• 180 mm

Headset

• MERIDA 8152

Handlebar

• MERIDA EXPERT TK
• material: aluminium
• 640 mm width
• 35 mm height

Handlebar stem

• MERIDA EXPERT TK
• material: aluminium
• diameter 31.8mm
• adjustable
• 65 mm-XS/S/M, 90 mm-L/XL

Knob

• MERIDA EXPERT TK

Rear derailleur

• Shimano ALIVIO M3100
• SGS

Shifters

• Shimano Alivio

Crankset

• Shimano FC-EM600
• 165 mm

Seatpost

• MERIDA EXPERT TK
• Diameter 30.9 mm
• 15 mm backset
• Seat post suspension travel 40 mm

Seat post clamp

• MERIDA EXPERT

Saddle

• MERIDA EXPERT TK
• V-shaped stem

Pedals

• VP VPE-891

Chain

• KMC e9S

Crankset

• Shimano CRE61
• 38 teeth

Sprocket set

• Shimano HG200
• 11-36 teeth
• 9-speed

Rims

• MERIDA COMP TK
• inside width 20mm
• material: aluminium

Hubs

• Shimano TX505
• Front hub with 100x9mm width
• 32 spoke holes
• Centrelock
• Rear hub width 135x9mm
• 36 spoke holes
• Centerlock

Spokes

• Black stainless steel

Tyres

• Continental Ride Cruiser
• 622-50
• wire
• reflective line

Roof racks

• MERIDA MIK HD
• Spring clip
• Spanninga rear light

Mudguards

• Solar wheel SW-FA311-60E1 (MSB)

Kickstand

• Atranvelo 1219-PC-7

Padlock

• Abus 4650 XL

Battery lock

• Abus key

Motor

• Shimano E6100
• 60Nm

Battery

• Shimano E8035-L
• 504Wh

Display

• Shimano SC-E5000A

Total weight

• Total allowed weight: 150kg.

Note: Specifications may vary without notice.
