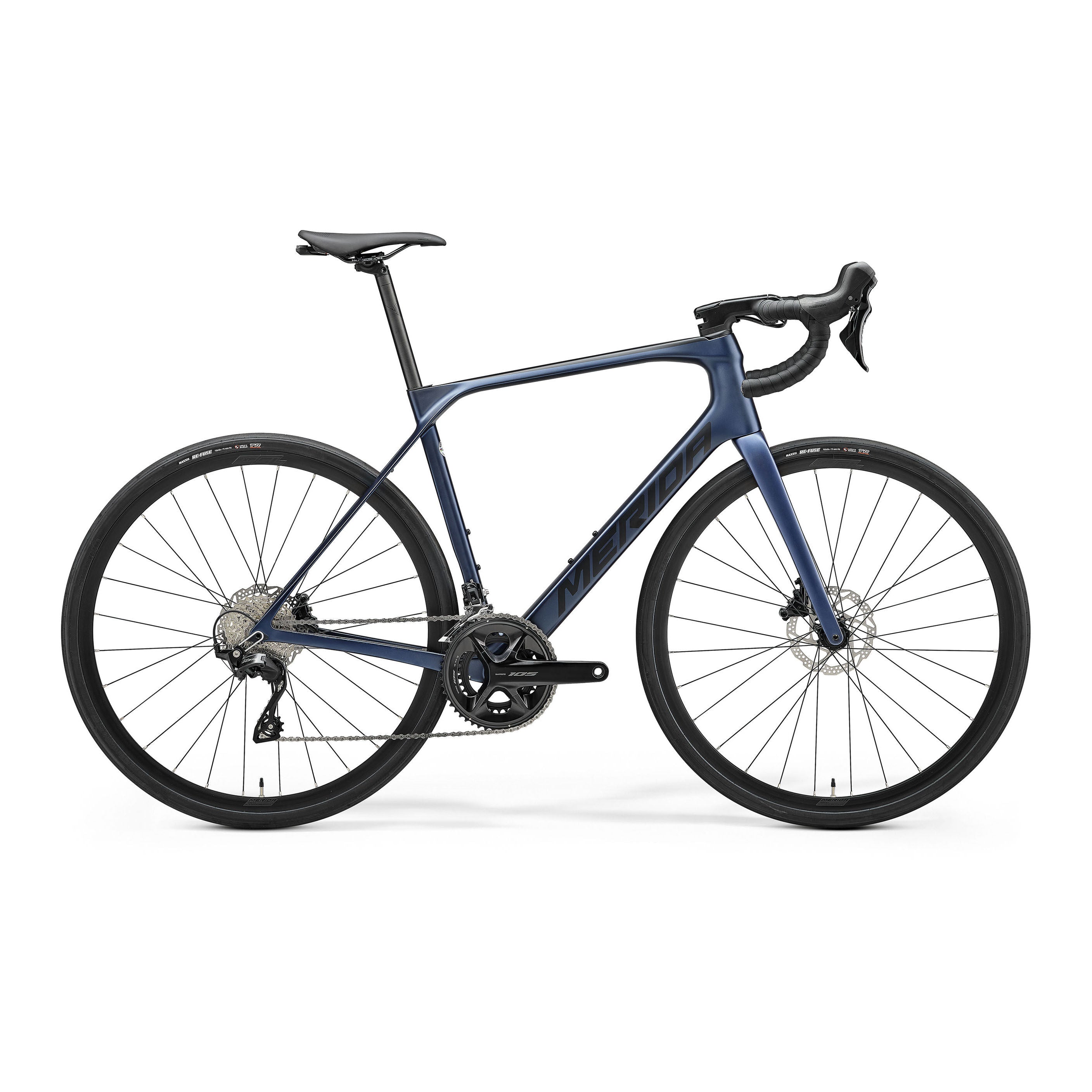

Merida Scultura Endurance 4000 II3

The SCULTURA ENDURANCE 4000 is far from a conventional entry-level carbon bike. Featuring the same proven, award-winning CF3 carbon frame as its bigger brothers, it is equipped with the latest Shimano 105 12-speed groupset for precise shifting and braking. The proven WIRE PORT cable management system keeps the handlebar free of cables and contributes to the bike's super-sleek overall look. It's the perfect choice for more leisure-oriented cyclists who want to spend long hours in the saddle in total comfort and relaxation. The wide tyres offer plenty of comfort, even on the bumpiest country roads, while a longer head tube ensures a more relaxed riding position. An instant hit with the international cycling press, it also received a comfort award from RennRad. Compared to the SCULTURA, the ENDURANCE has a more comfort-oriented geometry, ample tyre clearance and perfect integration of the latest standards. It sits between the more road-oriented SCULTURA on one side and the gravel/adventure SILEX on the other, while the SCULTURA ENDURANCE GR range offers options focused on gravel racing, with off-road-ready tyres and flare handlebars.

Features

• Lightweight CF3 carbon frame with comfort orientated geometry and confidence inspiring handling
• Shimano 105 12-speed groupset
• MERIDA EXPERT SL II stem and MERIDA EXPERT SL handlebar combo
• MERIDA carbon seat post
• Maxxis Re-Fuse 32 mm tyres
• Under-saddle pouch with MERIDA multitool

Tech spec

• FRAME: SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with mudguard) max. wheel size, 100x12/ 142x12mm standard axle, BB86 standard bottom bracket
• FORK: SCULTURA ENDURANCE CF3 DISC, material: carbon, max. wheel size 700x35C
• BRAKES: Shimano 105, hydraulic disc
• DISC BRAKES: Shimano RT54, 160 mm
• HEADSET: MERIDA TEAM SL, VP-MRBHB (SE-301 stem)
• HANDLEBAR: MERIDA EXPERT SLII, material: aluminium, 380 mm (XXS-XS) 400 mm (S-M), 420 mm (L-XL)
• STEM: MERIDA EXPERT SL 2PII, material: aluminium, stem angle -9°, 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL
• GRIPS: MERIDA ROAD Expert
• FRONT DERAILLEUR: Shimano 105
• REAR DERAILLEUR: Shimano 105, GS
• CONTROLS: Shimano 105 disc
• SEAT POST: MERIDA EXPERT CC, diameter 27.2 mm, setback 15 mm, carbon
• SEAT CLAMP: MERIDA EXPERT
• SADDLE: MERIDA COMP SL, 28% recycled material, V-shaped attachment, incl. MERIDA mini tool
• CHAIN: Shimano M6100-12
• CASSETTE: Shimano 105 R7101 sprockets, 11-34 teeth, 12 speeds
• BOTTOM BRACKET: Shimano SM-BB72-41B, Pressfit 86.5
• RIMS: MERIDA EXPERT SLII, internal width 23 mm, height 25 mm, material: aluminium, tubeless ready (tubeless tape and valves not included)
• HUBS: Shimano HB-TC500 / Shimano HB-TC500-HL, front hub width 100x12 mm, 28 spoke holes, Centerlock, rear hub width 12-142 mm, 28 spoke holes, Centerlock
• AXLES: MERIDA EXPERT TR / MERIDA EXPERT SL, including removable lever, 6/4 mm Allen key
• SPOKES: Double thickness black stainless steel
• TYRES: Maxxis RE-FUSE, 700x32C, foldable

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
