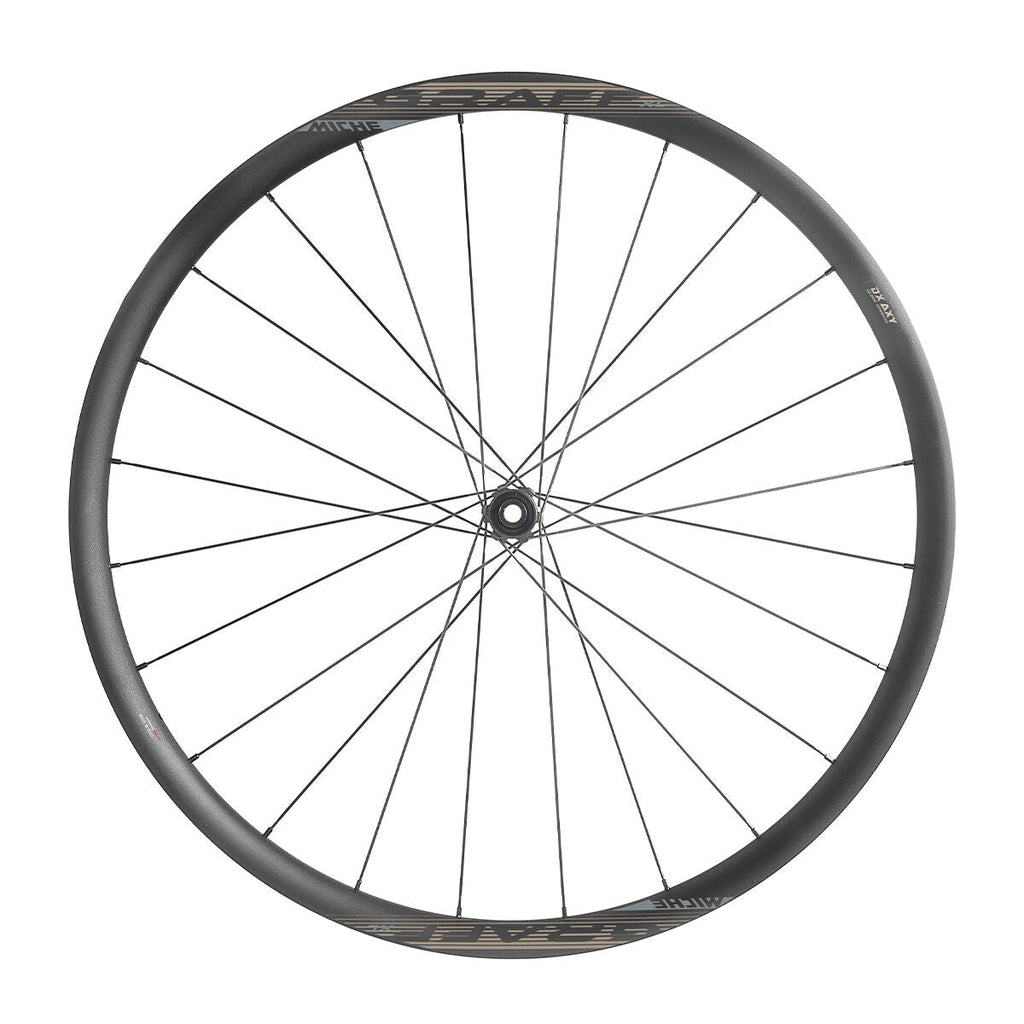

Miche Graff XL Tubeless Ready rear wheel

With wheels entirely dedicated to light off-road use, the Miche gravel range aims at the best combination of lightness, versatility and comfort

With the new aluminium alloy rim with asymmetrical profile and 24C section (28mm external width), the Graff XL wheel takes a further step towards off-road use, but at the same time its lightness and rigidity make it excellent and performing even on road courses. The rim profile height of 25 mm gives it rideability and manoeuvrability even on the most demanding routes. The Graff XL wheel is designed to fit both clincher tyres and tubeless ready tyres with a tubeless kit fitted and guaranteed by the Miche quality department. The Xgraff hubs are specifically designed for off-road use, in fact they are made of aluminium alloy AL 7075 T6, CNC machined, with centre lock disc fixing system, and straight-pull spoking. The movement is on Miche bearings with double seal and full complement to guarantee maximum smoothness in all conditions and over time. The freewheel body is CNC machined from AL 7075 T6 and steel.

Technical specifications

• ASTM: 2
• Hubs: AL 7075 T6
• Spokes: Black stainless steel / aero / straight head / double-butted
• Nipples: AL 7075 T6 / Black
• Mounting: 24 - 24 / Crossed
• Shave (mm): 100 - 142
• Bearings: MICHE® sealed steel
• Transmission: RES 30 Rapid Engagement System
• Maximum load bike + user (kg): 108 Kg
• Rim height (mm): F 25 - R 25
• Braking system: Disc Centre Lock
• Accessories included: Instructions / Flap (only for Clincher version)
• Rim material: Aluminium - Asymmetrical AXY
• Freewheel body: AL 7075 T6 - Steel
• Rim size: 622-24C
• Tyre size: 2’ ÷ 2.5’
• Tyre type: Clincher & Tubeless
• Front axle diameter (mm): 12
• Rear axle diameter (mm): 12
