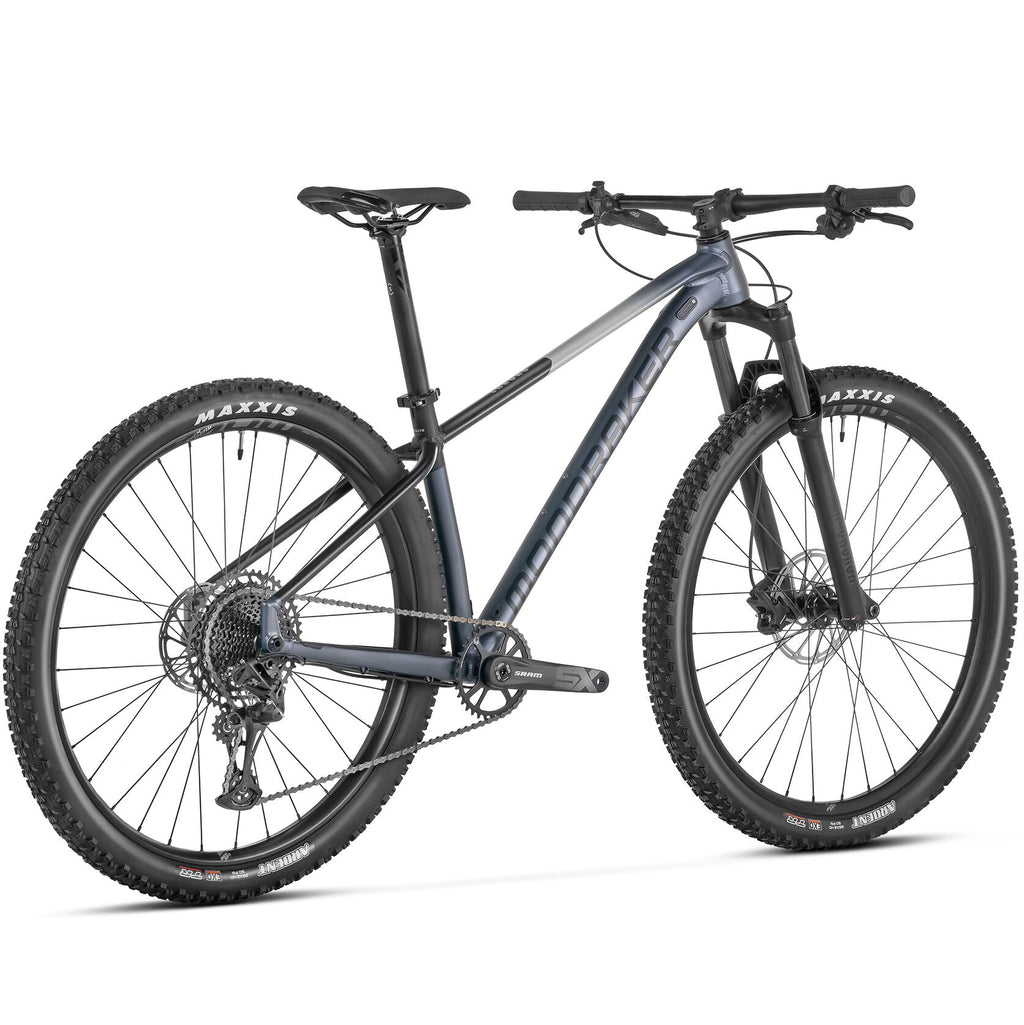

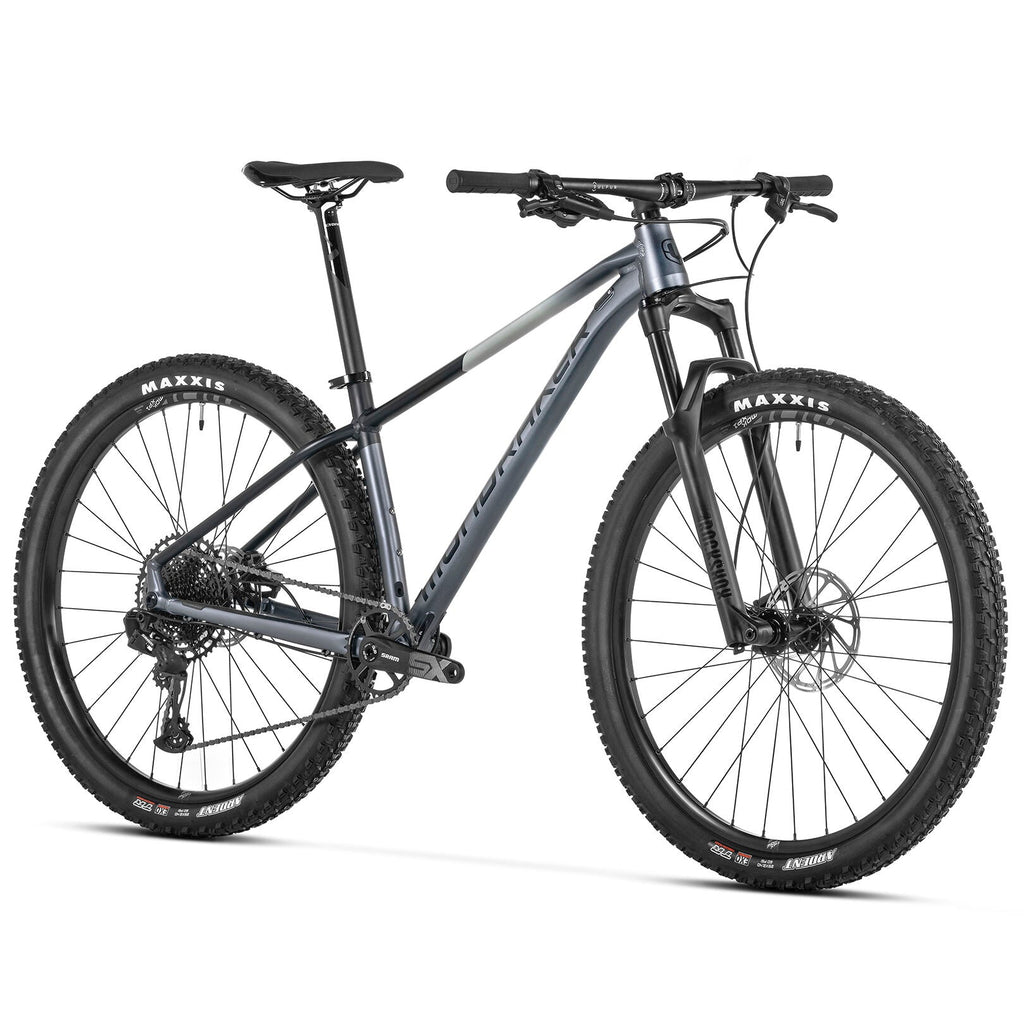

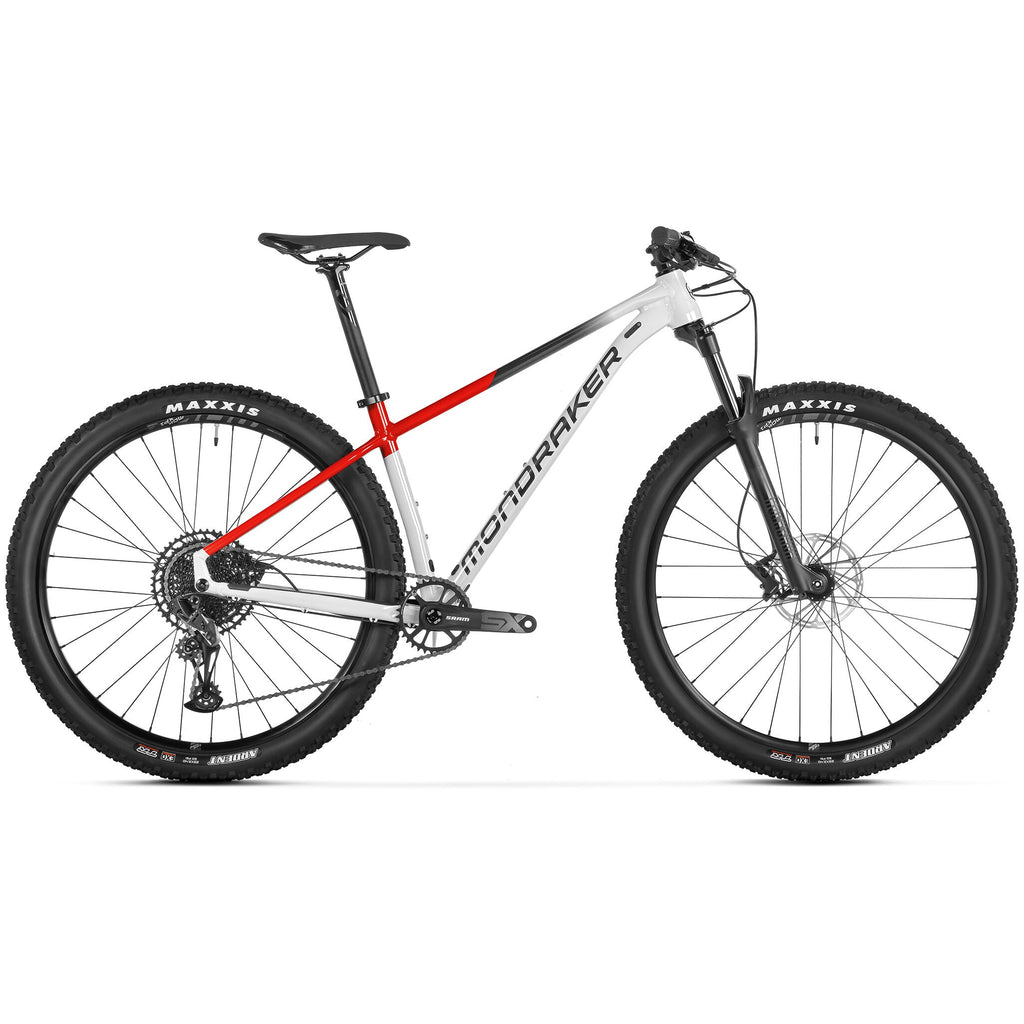

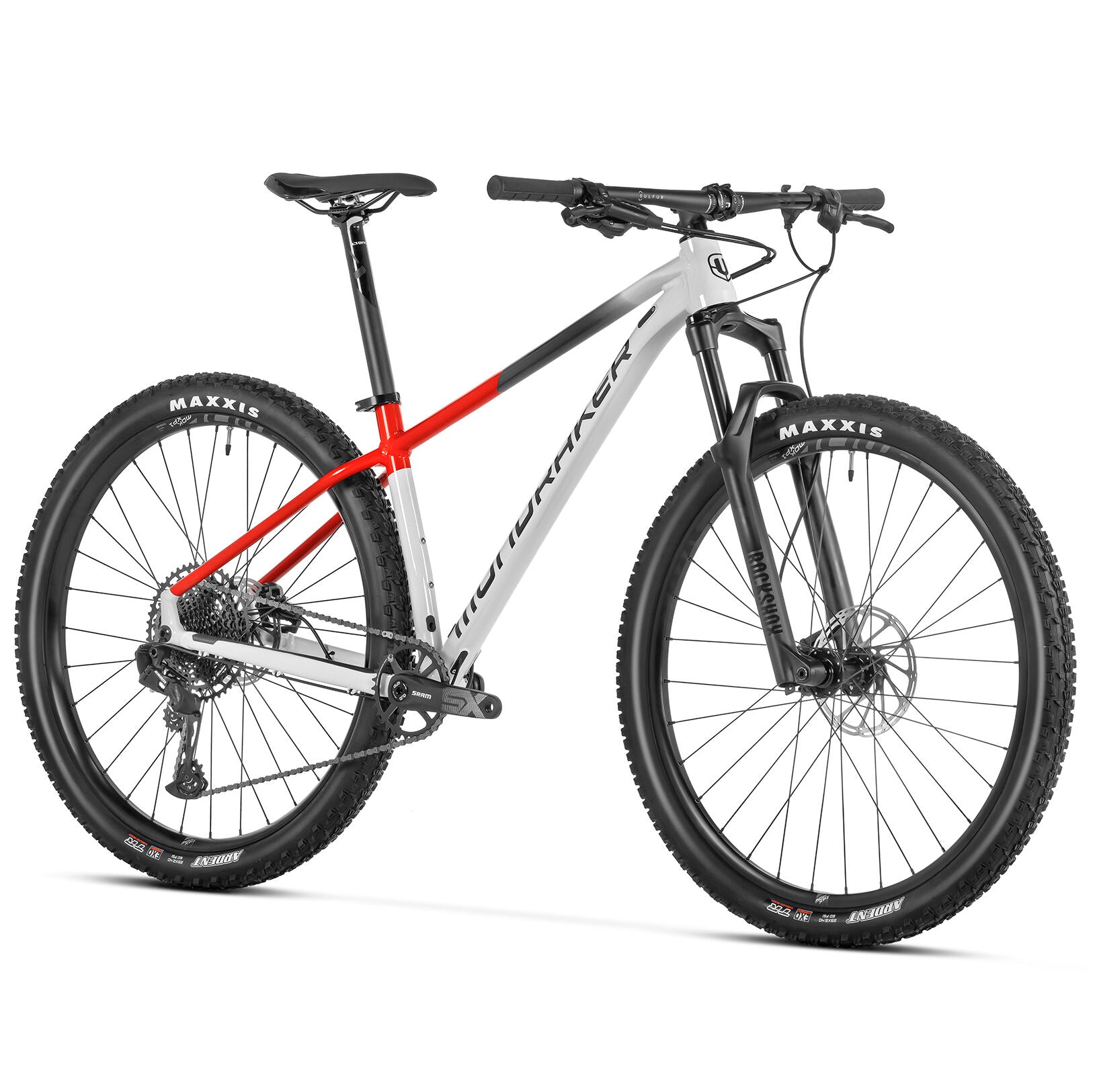

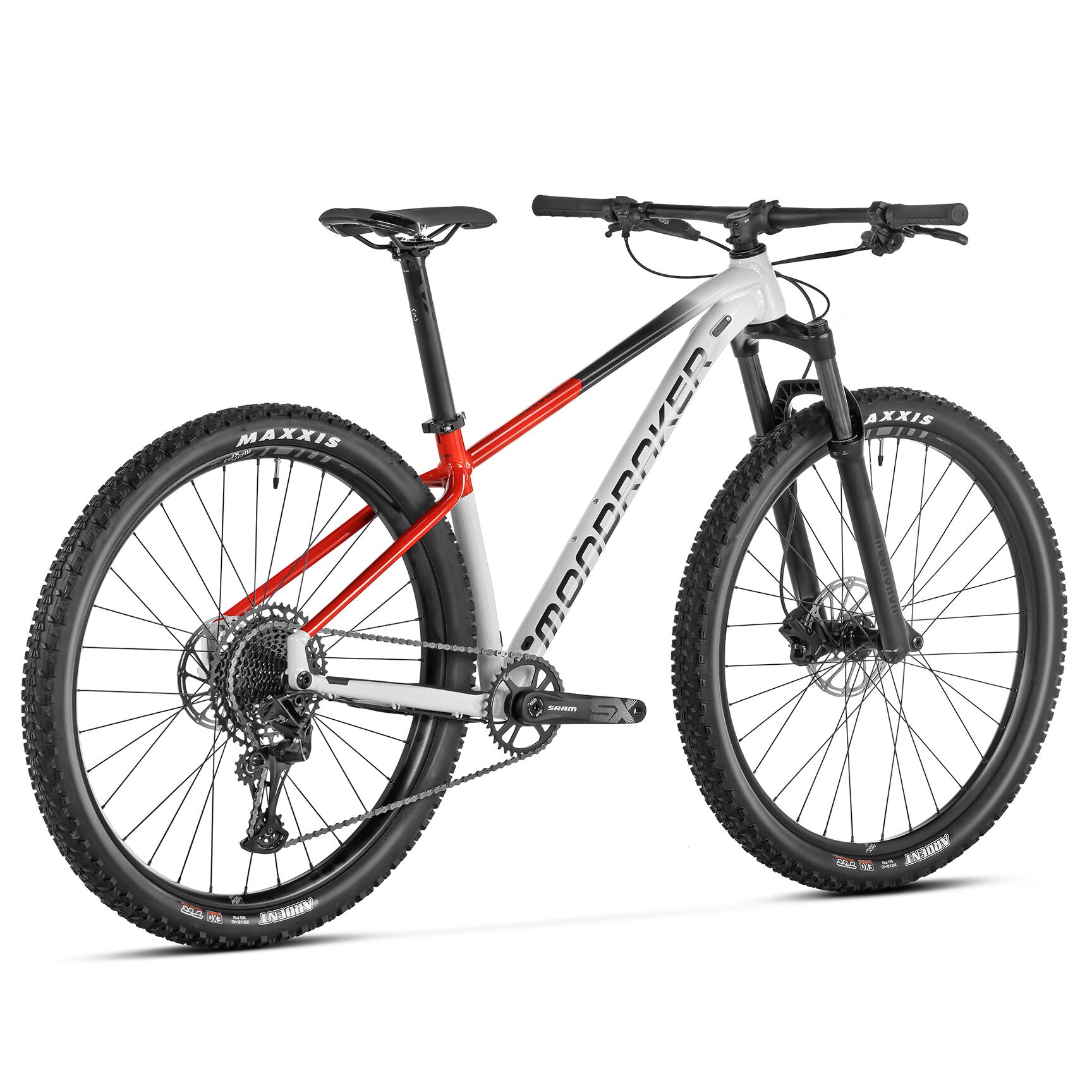

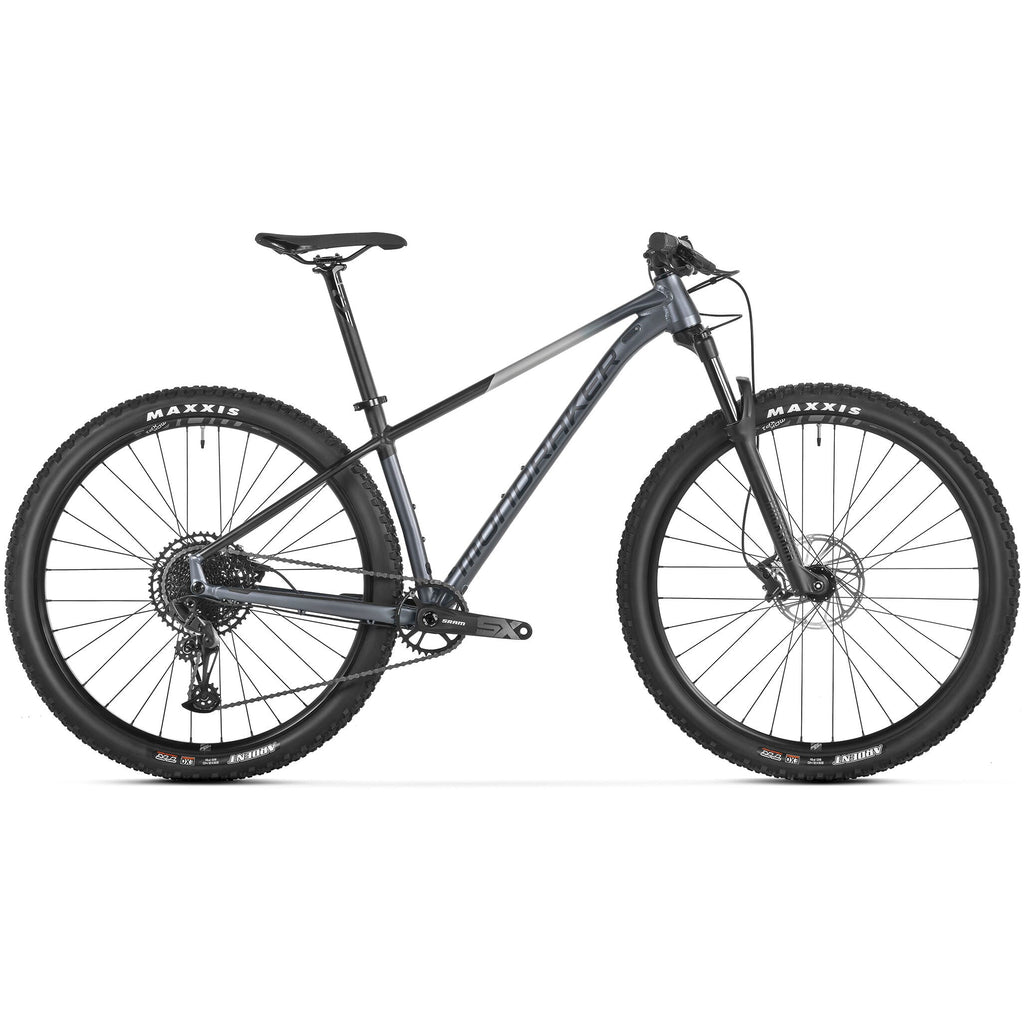

Mondraker Chrono DC

The Mondraker Chrono DC is a hardtail mountain bike designed to offer more trail-oriented performance than classic XC models. In other words, it is designed for those who want a bike that rides well but can also tackle technical descents and more challenging terrain.

Tech Specs

• Frame: Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
• Fork: RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 51mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload
• Fork remote: RockShox PopLoc
• Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem: Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
• Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips: Onoff Twin, 1lock-on, 135mm
• Seatpost: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31,6mm, length 400mm
• Saddle: Mondraker XC Series, steel rail
• Front brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
• Rims: MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
• Spokes: CN round stainless steel
• Front hub: Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts
• Rear hub: Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
• Front tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
• Rear tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
• Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
• Rings: 34T, steel, X-Sync 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram SX Eagle, 12s, Powerlock
• Rear derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
• Casette: Sram PG-1210, 11-50T, 12s
• Derailleur hanger: Mondraker M068
• Producer's weight: 13,6 kg

Producer's weight: Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
