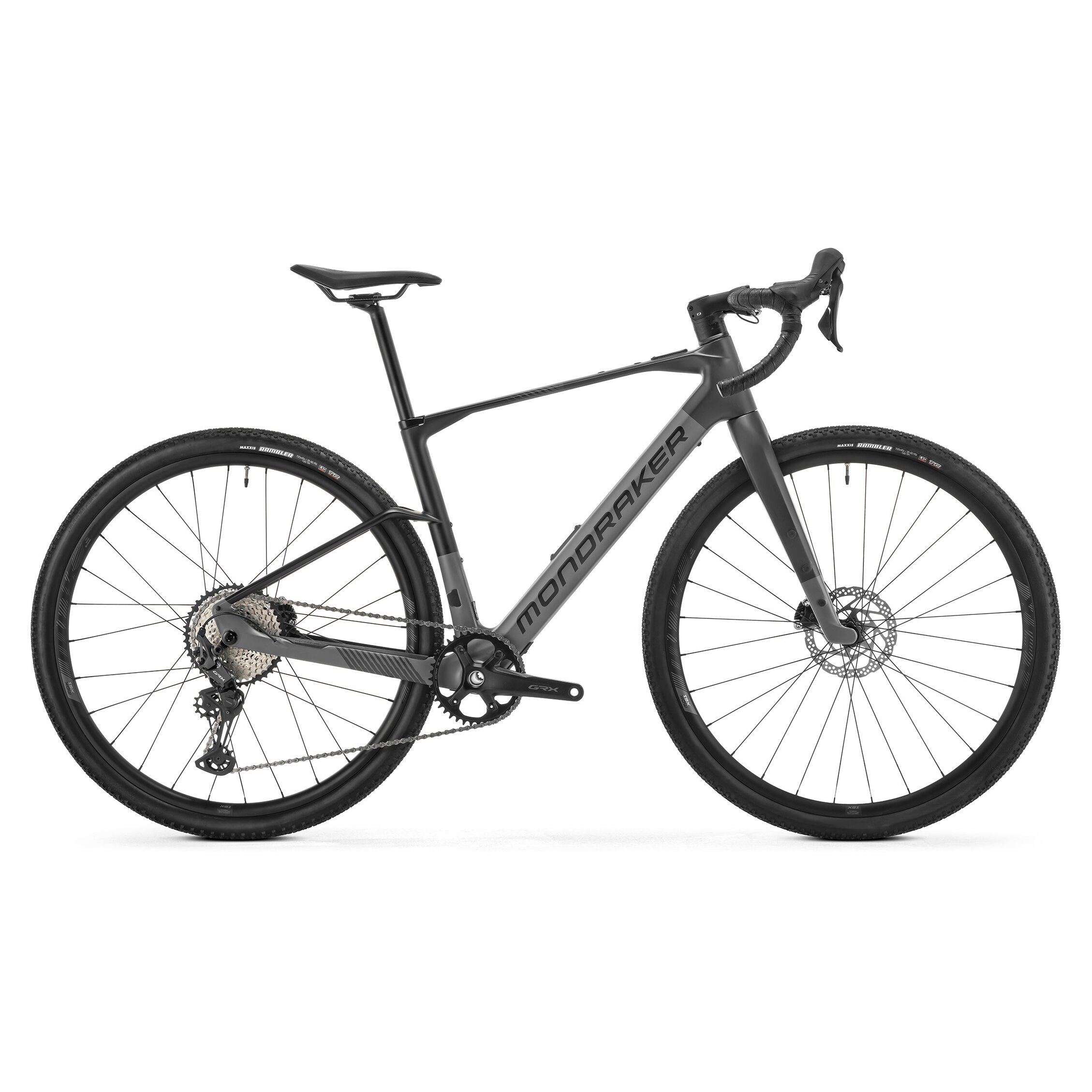

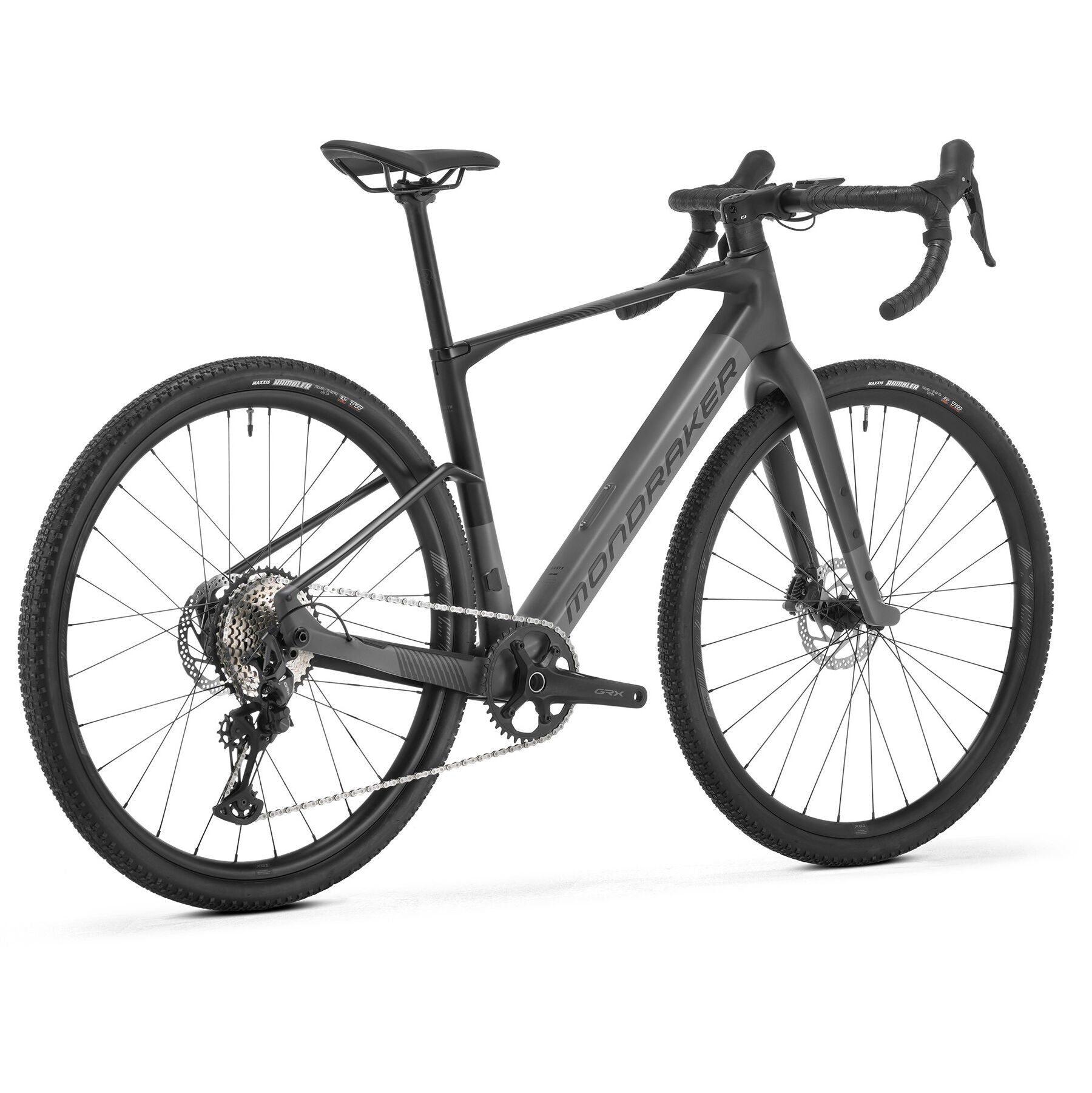

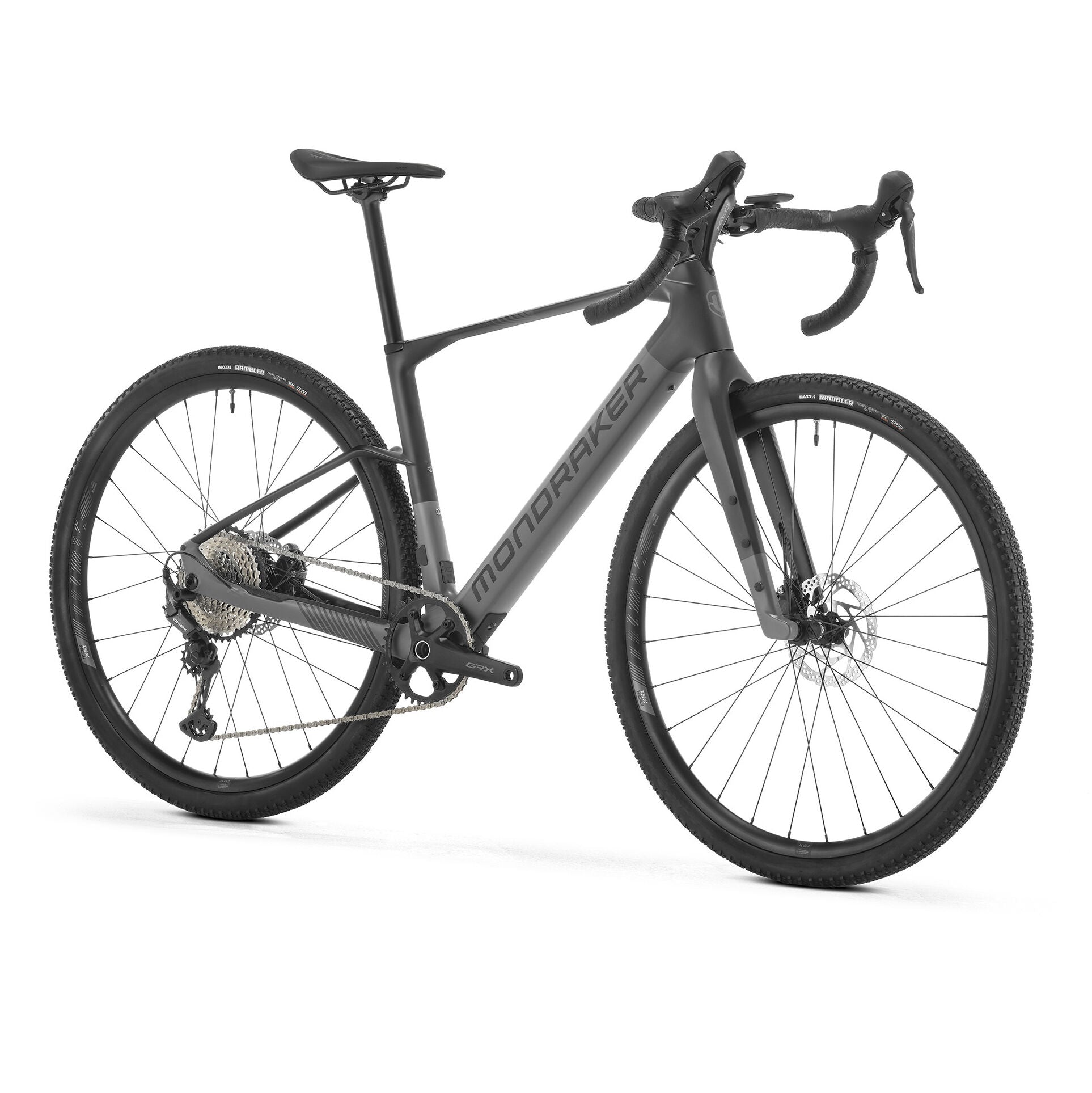

Mondraker Dusty

An electric bike designed to tackle mixed terrain and gravel with agility and comfort. With a powerful motor and geometry optimized for cycle touring, it offers a smooth and safe riding experience, both on paved and unpaved roads. Its long-lasting battery guarantees autonomy for long excursions, while its modern and lightweight design makes it perfect for those looking for a versatile, high-performance bike. Ideal for adventure lovers and long-distance riders.

Tech spec

• Frame: e-Gravel Stealth Air Carbon, 386 EVO Press-fit bottom bracket, tapered head tube, HHG internal cable routing, integrated non-removable internal battery, 12x142 mm rear axle, 1X or 2X drivetrain design, Flat-Mount brake compatible, integrated dropout speed sensor.

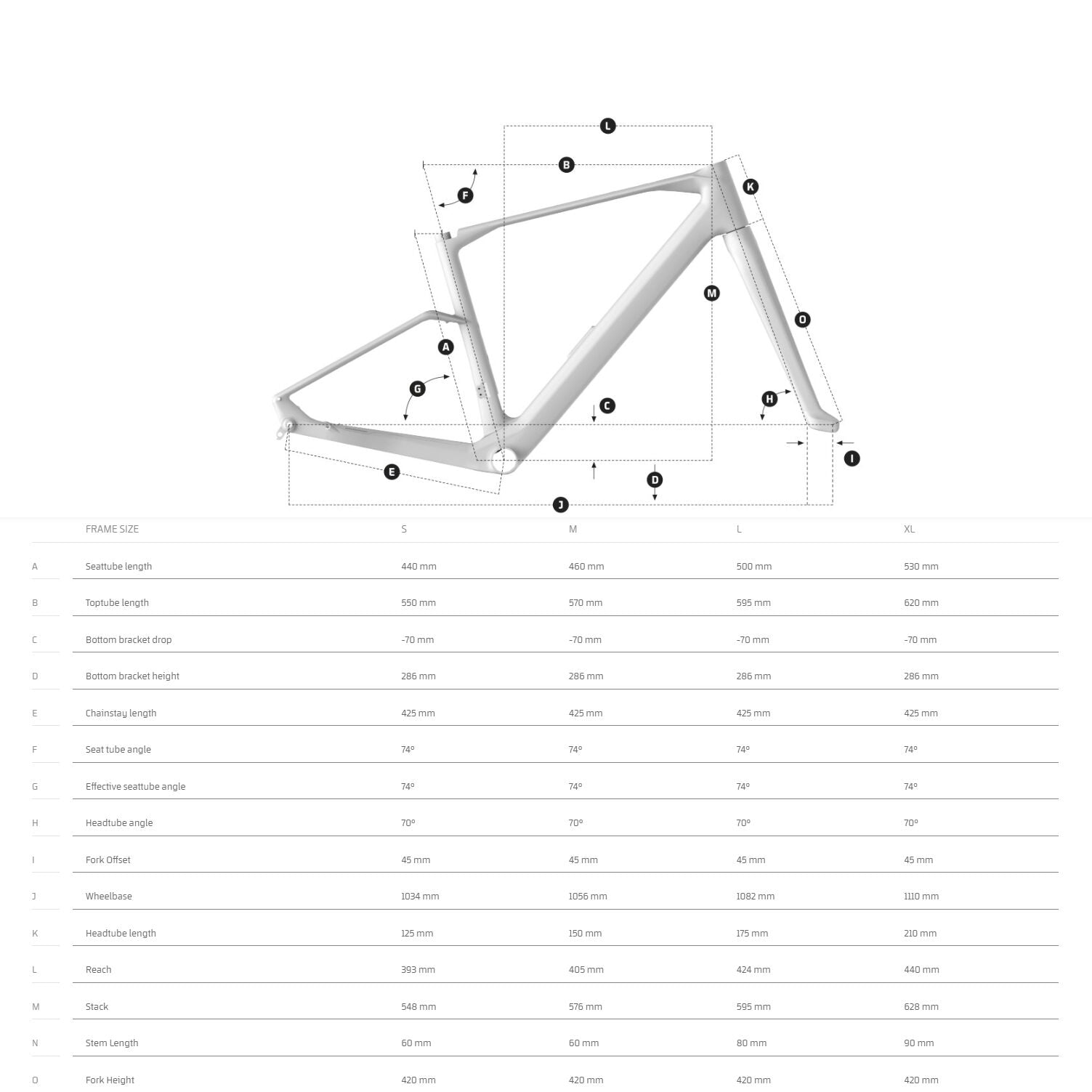

• Sizes: 440 mm / M: 460 mm / L: 500 mm / XL: 530 mm
• Fork: Stealth Air Carbon tapered head tube, HHG, integrated Flat-Mount fork
• Steering: ONOFF IS52/IS52, 1-1/8“, 1.5” head tube, sealed bearings, internal cable routing
• Stem: ONOFF S3 GR 6061 T6 alloy, 31.8 mm bore, rise: -7º, length: size S: 60 mm, size M: 70 mm size L: 80 mm, size XL: 90 mm
• Handlebar: ONOFF S3 GR 16º flare. Width dimensions size S: 440 mm size M: 440 mm size L: 460 mm size XL: 460 mm
• Grips: ONOFF HEX Bartape
• Seatpost: ONOFF S3 0-R, diameter 31.6 mm, length 400 mm
• Saddle: FIZIK Terra Argo X7 150 mm
• Front brake: Shimano GRX RX-610, RX-400 caliper, RT56 IS 6-bolt rotor, resin pad
• Rear brake: Shimano GRX RX-610, RX-400 caliper, RT56 brake disc with 6 IS bolts, resin pad
• Brake levers: Shimano GRX RX-610, contact point adjustment, reach adjustment with tools, aluminum lever
• Rims: MDK-XG1, internal width 25mm, tubeless ready, 28 spokes
• Spokes: Round stainless steel Nc
• Front hub axle: Novatec D041, Boost 12x100mm, sealed bearings, 6 IS bolts
• Rear hub axle: Mahle X20 drive unit, MS freehub
• Front tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Rear tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Cranks: Shimano GRX RX-610, size S: 170mm size M: 170mm size ML: 172.5mm size L: 172.5mm size XL: 175mm, CL 49.7
• Chainring: Shimano 40T, direct mount, steel
• Bottom bracket: Mahle DUB Pressfit, sealed bearings, with torque sensor
• Chain: Shimano SLX M7100, Quick link
• Rear derailleur: Shimano GRX RX-822-GS, 12s
• Shifters: Shimano GRX RX-610 dual control, alloy lever
• Sprocket cassette: Shimano SLX M7100, hiperglide+, 10-45, 12s
• Dropout: Mondraker M076
• Producer's weight: 13.9 kg
• Display: Pulsar One Wireless
• Motor: Mahle X20 drive system
• Battery: Mahle X20 IX350Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
