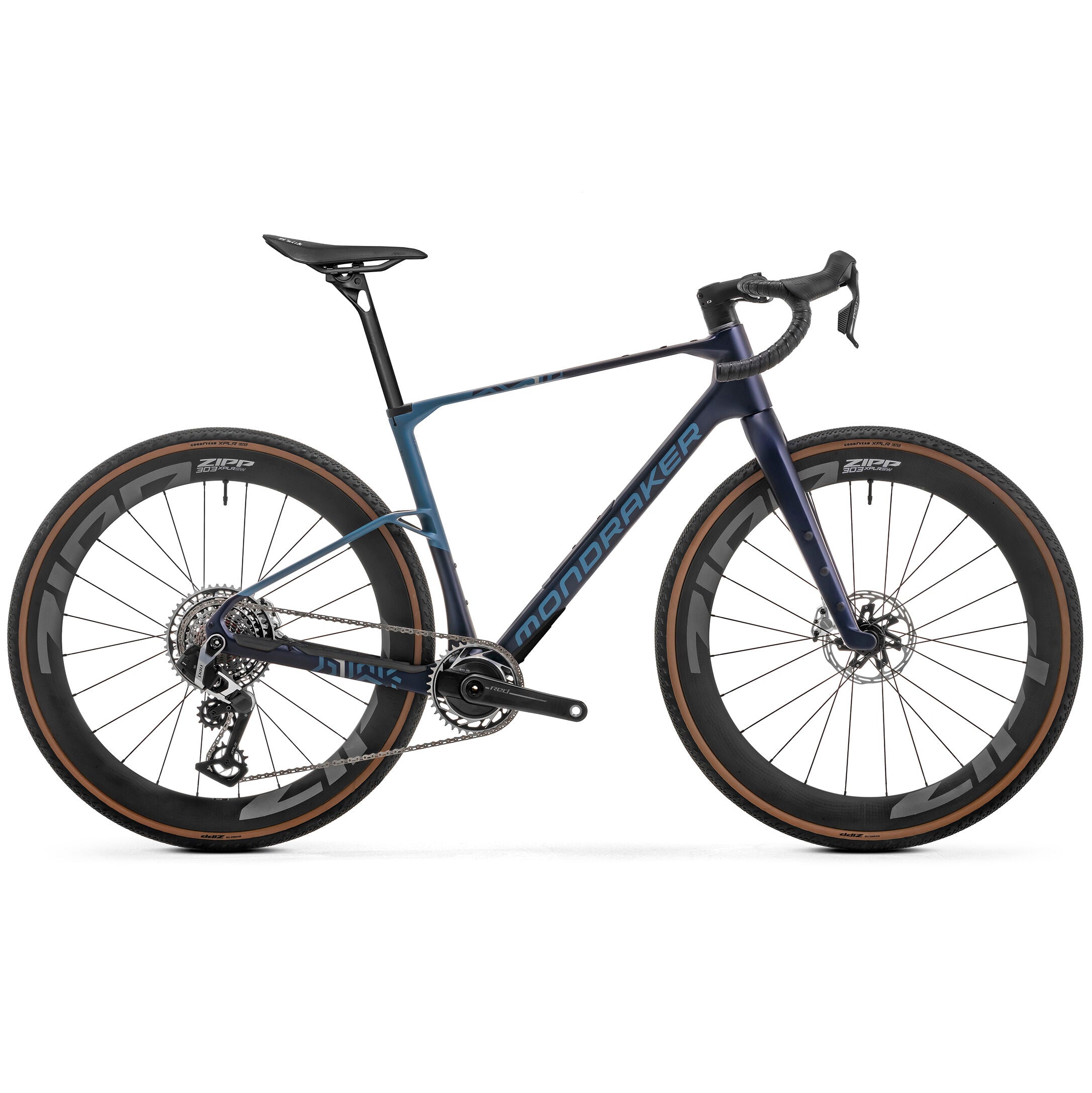

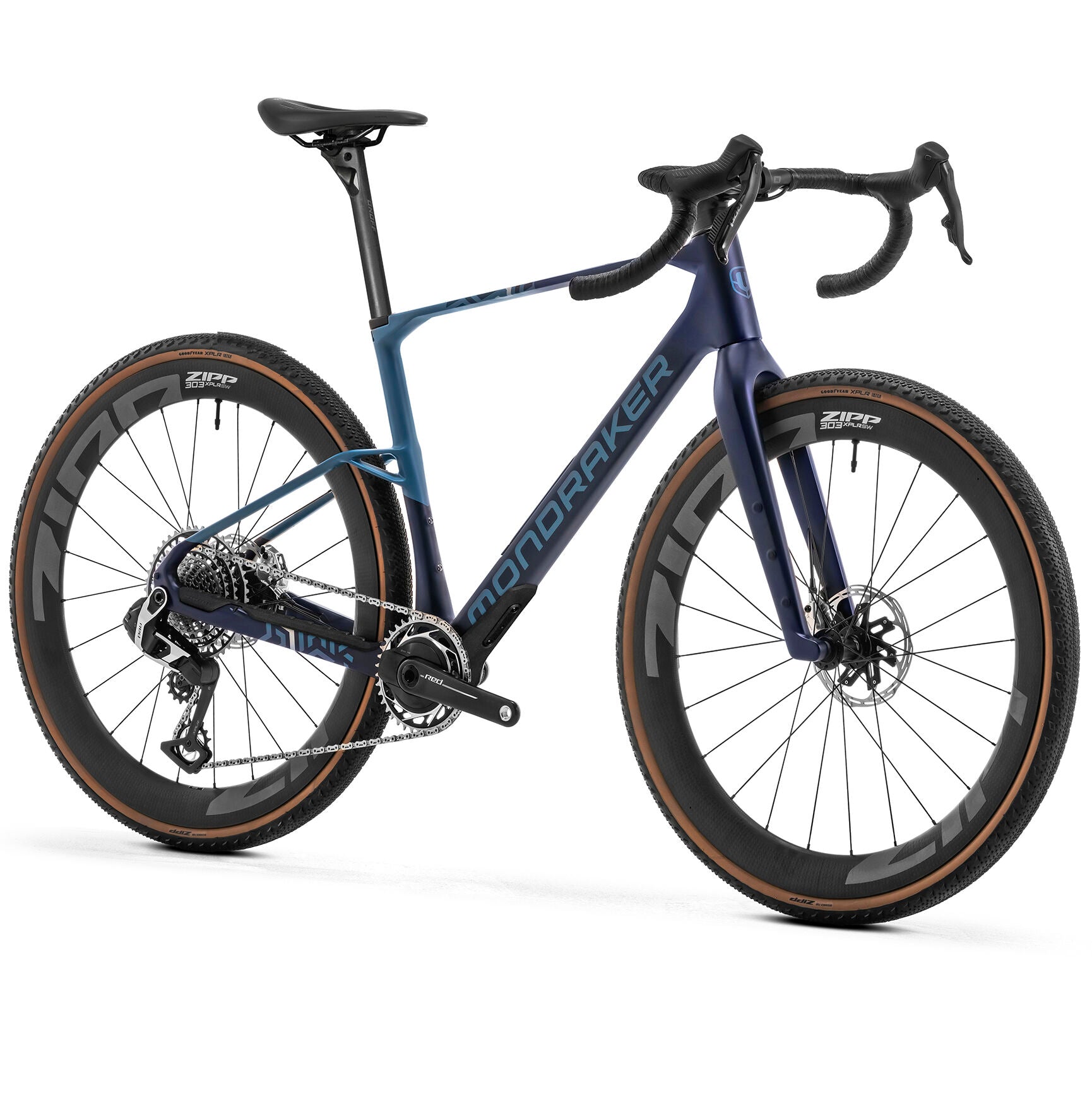

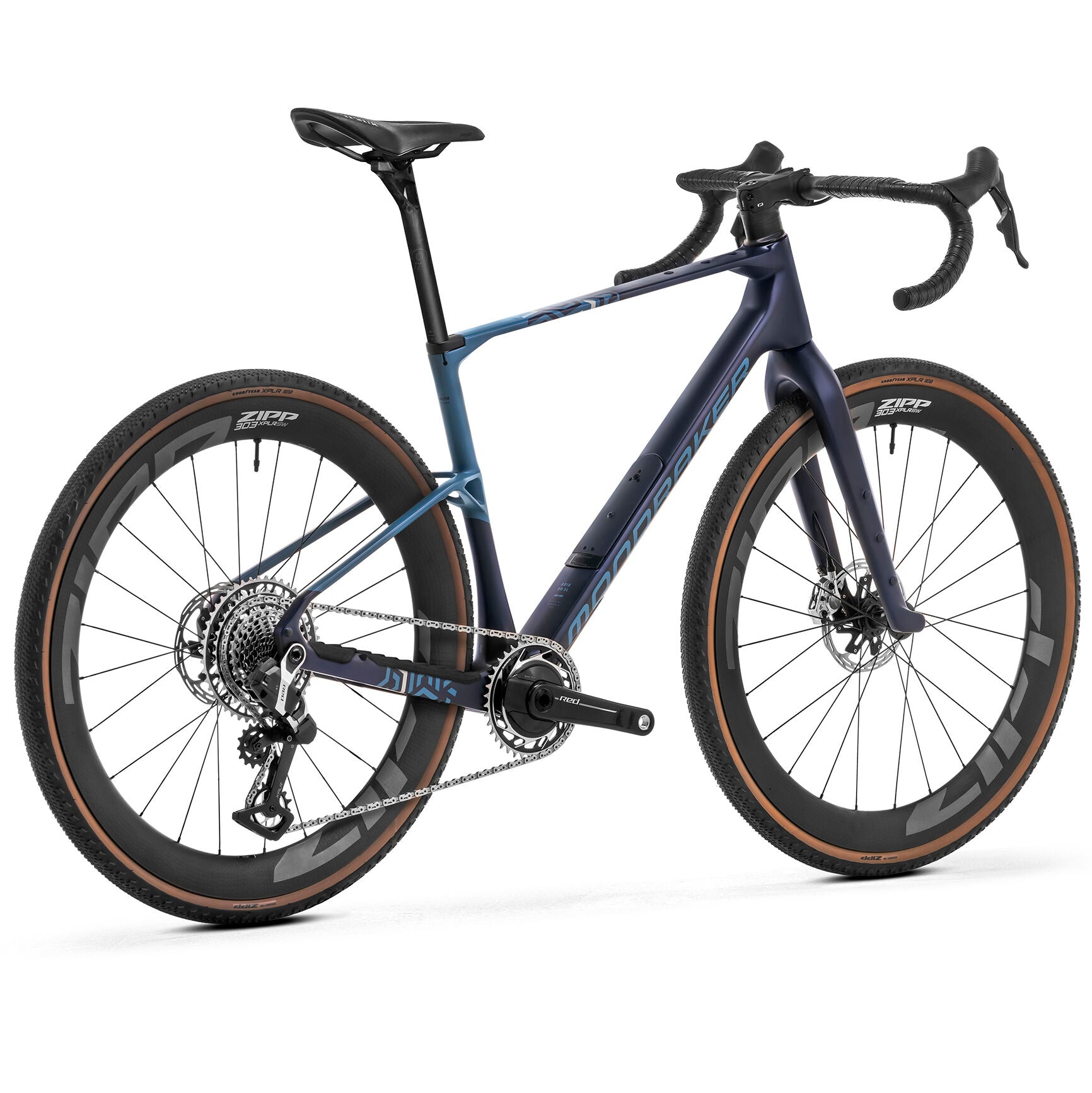

Mondraker Gravel Arid Carbon RR SL

Arid Carbon RR SL: crème de la crème

The range-topping RR SL is our high-performance gravel bike par excellence. ZIPP 303 XPLR wheels (54mm deep and 32mm wide (internal)), coupled with 45mm Goodyear XPLR tyres make this model stand out from the rest of the range while offering even better acceleration and ride characteristics. It also comes with SRAM transmission and brakes in the form of SRAM RED AXS with a 40-tooth chainring and a 13-speed, 10-46 cassette. This model is also available as a frame-only option and comes in the Midnight Blue / Denim Blue / Bunker Grey colourway.

Tech Specs

• Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
• Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
• Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
• Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
• Handlebar: OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
• Grips: OnOff HEX Bartape
• Seatpost: Onoff S9 Carbon 15-R,15mm offset, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
• Saddle: FIZIK Vento Argo 00 140mm
• Front brake: Sram RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
• Rear brake: Sram RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
• Brake lever: Sram RED, contact point adjustment, tooled reach adjust, carbon levers
• Rims: Zipp 303 XPLR SW, 32mm internal width,54mm rim depth, hookless, infinity hubs, 24 spokes
• Spokes: CX-Ray - Black
• Front hub: ZR1 Disc Brake, 12x100mm,Centerlock
• Rear hub: ZR1 Disc Brake, 12x142mm, XDR 6 Pawls, Compression Springs, Centerlock. XD Freehub
• Front tire: Goodyear XPLR Inter 700x45
• Rear tire: Goodyear XPLR Inter 700x45
• Crankset: Sram RED XPLR carbon, Power meter, DUB axle, thread-mount chainring, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
• Rings: Sram 40T Thread Mount, alloy, narrow-wide,
• Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85,5mm
• Chain: Sram RED, 13s, Powerlock
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Rear derrailleur: Sram RED XPLR AXS, Magic wheel, cage lock, 1x13s,
• Shift levers: Sram RED XPLR AXS, Magic wheel, cage lock, 1x13s,
• Casette: Sram XG-1391, 10-46T, 13s
• Others: Carry-On Bags System
• Producer's weight: 7,9 kg

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
