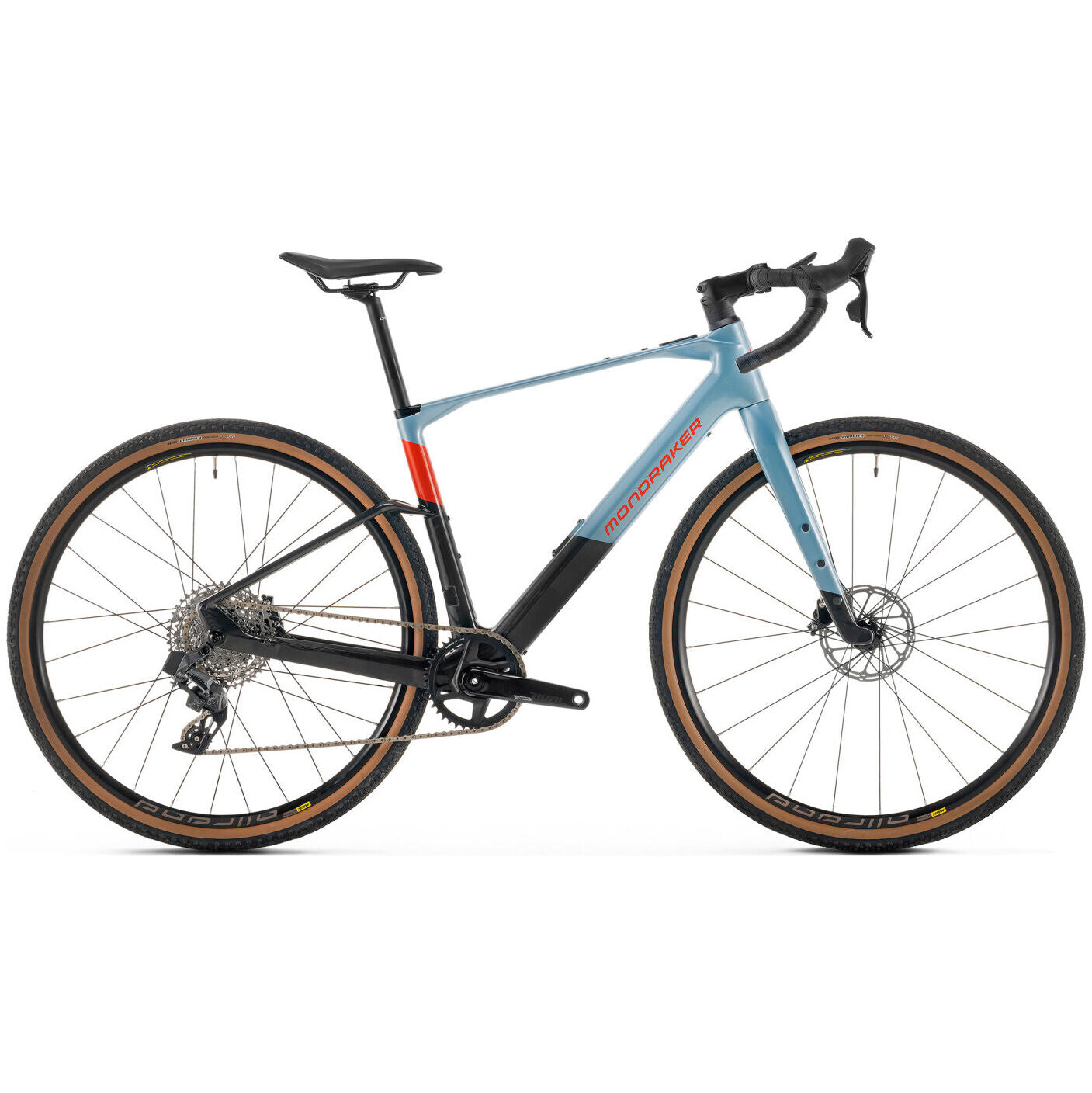

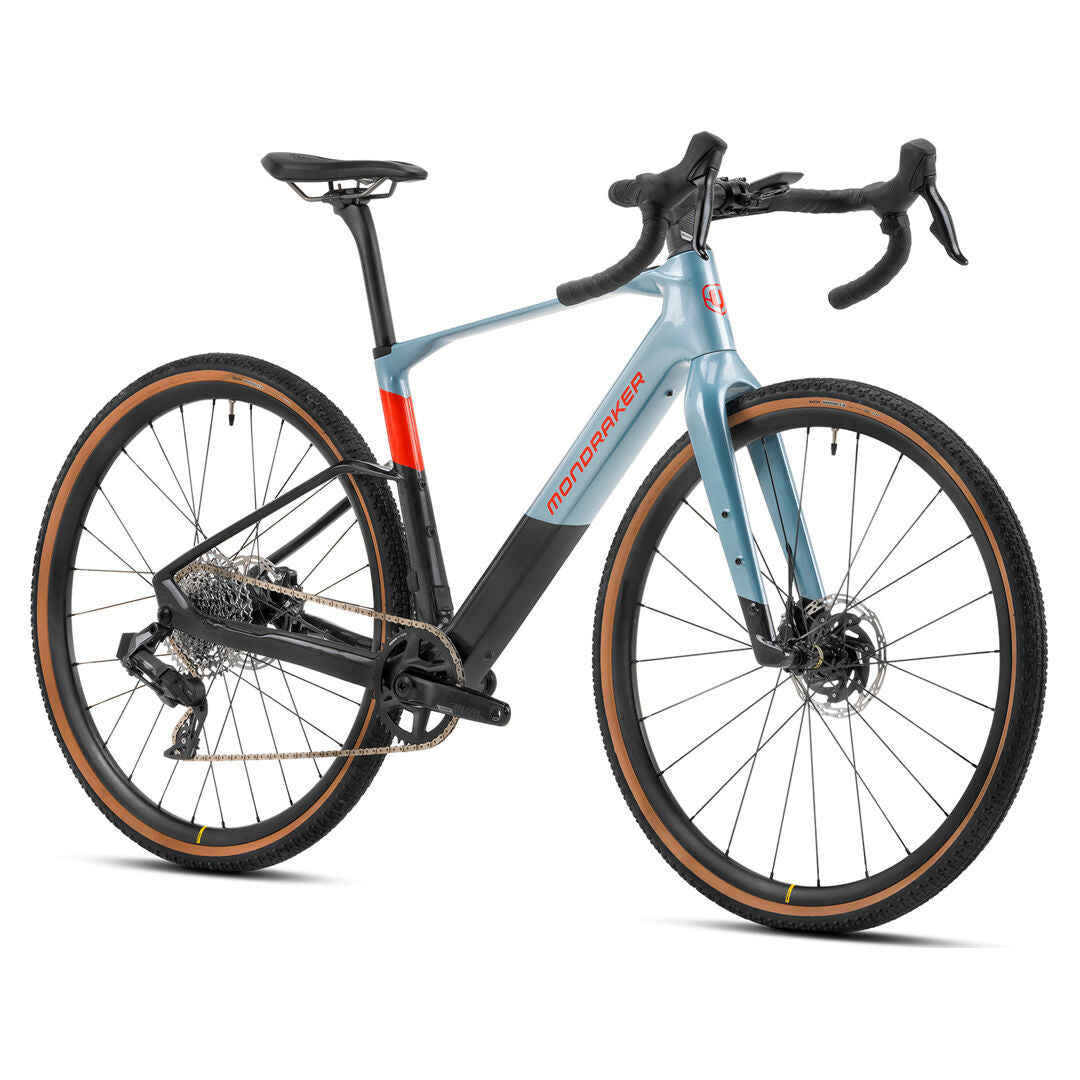

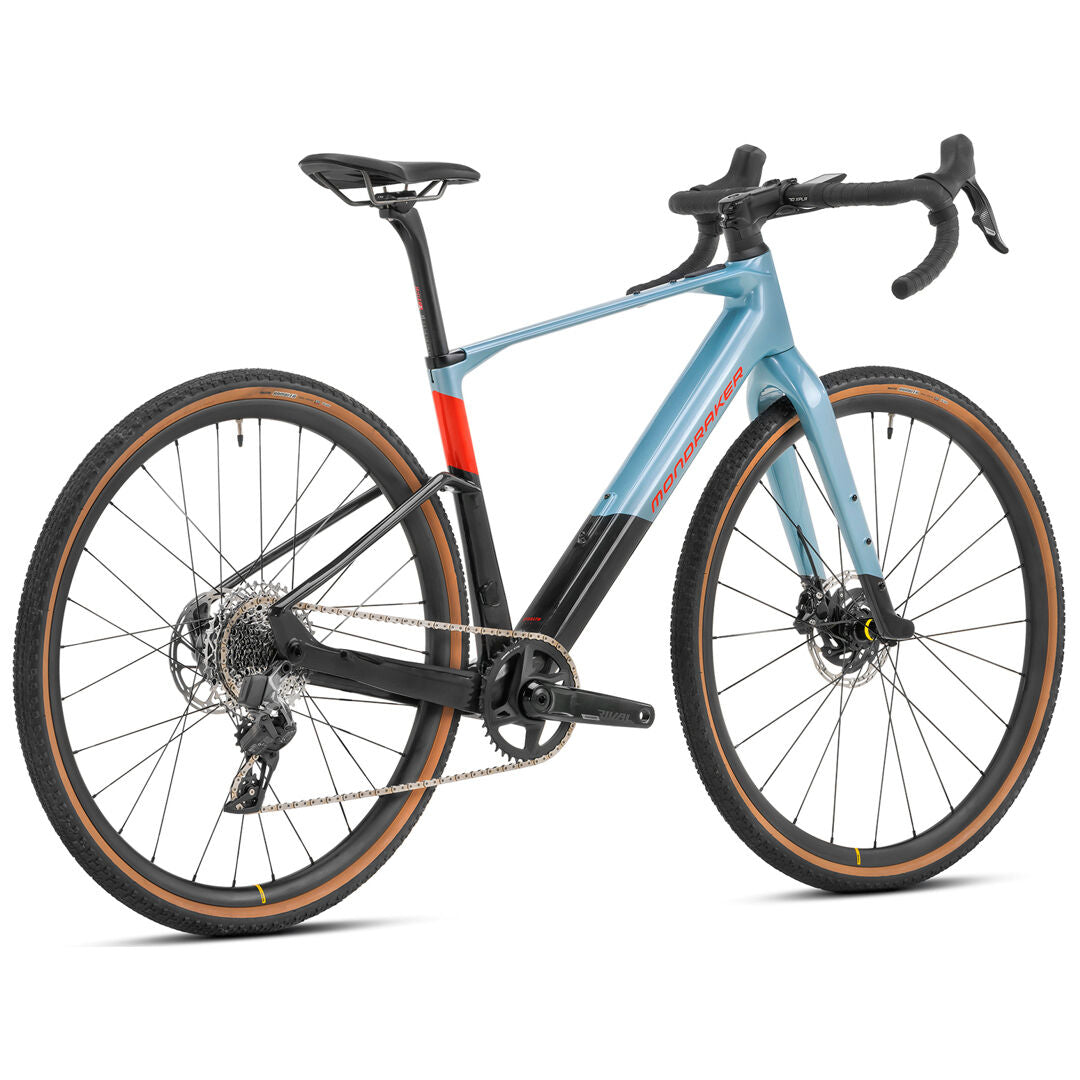

Mondraker Gravel Dusty RR

Dusty is Mondraker's first electric gravel bike, designed to combine the versatility of gravel biking with electric assistance: suitable for both bikepacking on dirt roads and excursions with significant elevation gains.

Tech Specs

• Frame: Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
• Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
• Headset: OnOff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 52x40x8x45ºx45º, bottom 52x40x7x45ºx45º
• Stem: OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm
• Handlebar: OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm
• Grips: Barium gravel dark grey
• Seatpost: OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm
• Saddle: FIZIK Terra Argo X7 150mm
• Front brake: Sram Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Rival, contact point adjustment, tooled reach adjust, plastic levers
• Rims: Mavic Allroad Disc, UST, 22mm internal width, hookless, 24 spokes
• Spokes: Mavic Steel double butted flat spokes
• Front hub: Mavic, 12x100mm, IS 6 bolts
• Rear hub: Mahle X20 Drive Unit, XDR freehub
• Front tire: Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall
• Rear tire: Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall
• Crankset: Sram Rival 1 GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
• Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
• Bottom bracket: Mahle pressfit, sealed bearings, w/ torque sensor
• Chain: Sram Rival, 12s, Powerlock
• Rear derrailleur: Sram Rival XPLR Etap AXS, 12s
• Shift levers: Sram Rival Etap AXS 12s
• Casette: Sram XG-1251 10-44T, 12s
• Others: *Optional range extender: Mahle e185 , 172Wh
• Display: Pulsar One Wireless
• Motor: Mahle X20 Drive Unit
• Battery: Mahle X20 IX350Wh

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
