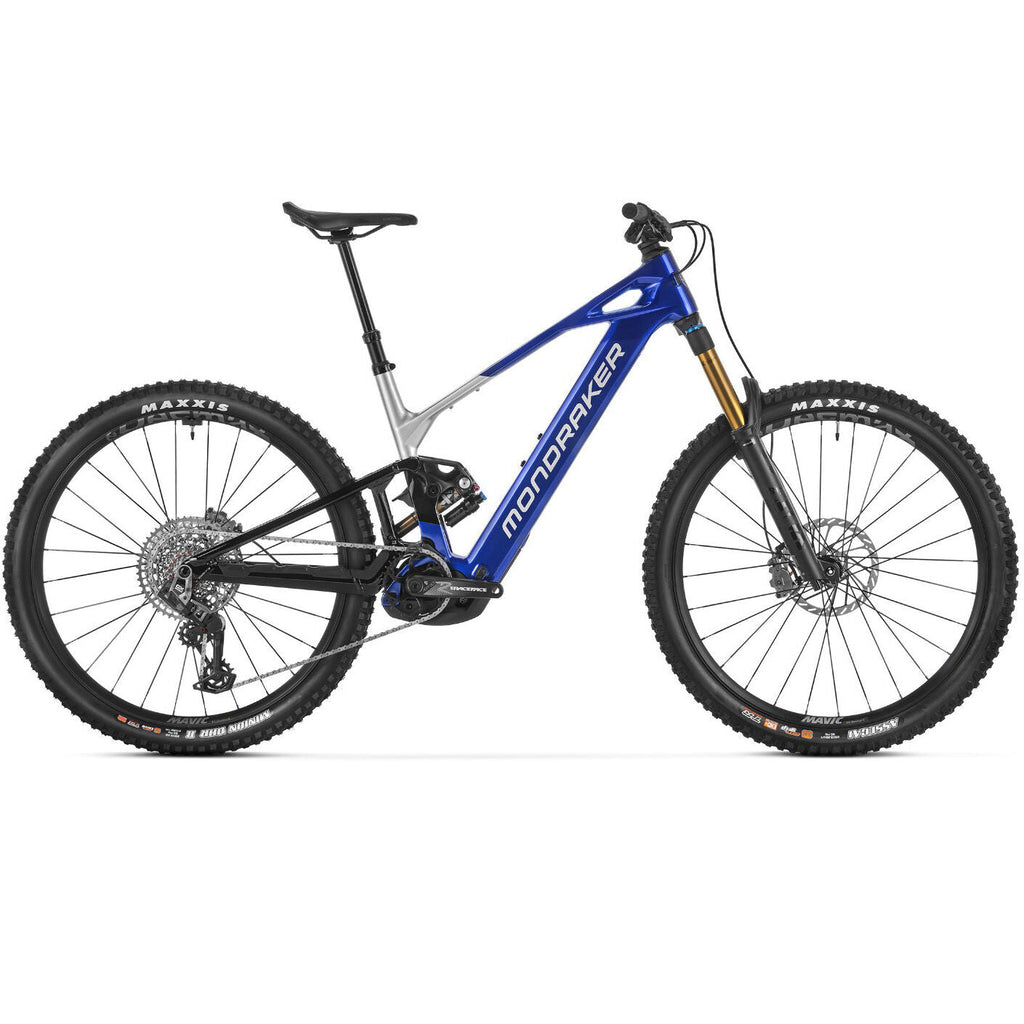

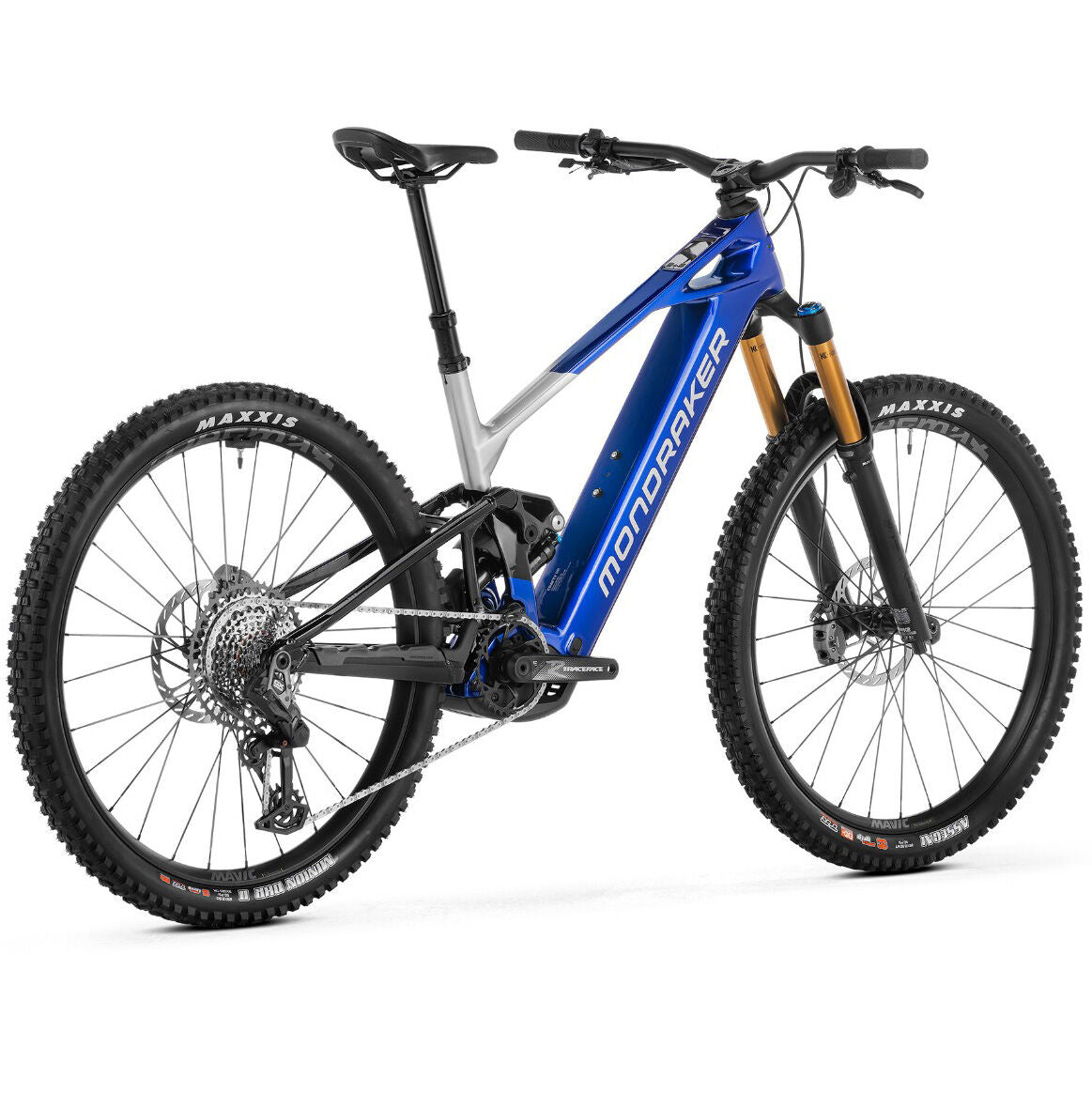

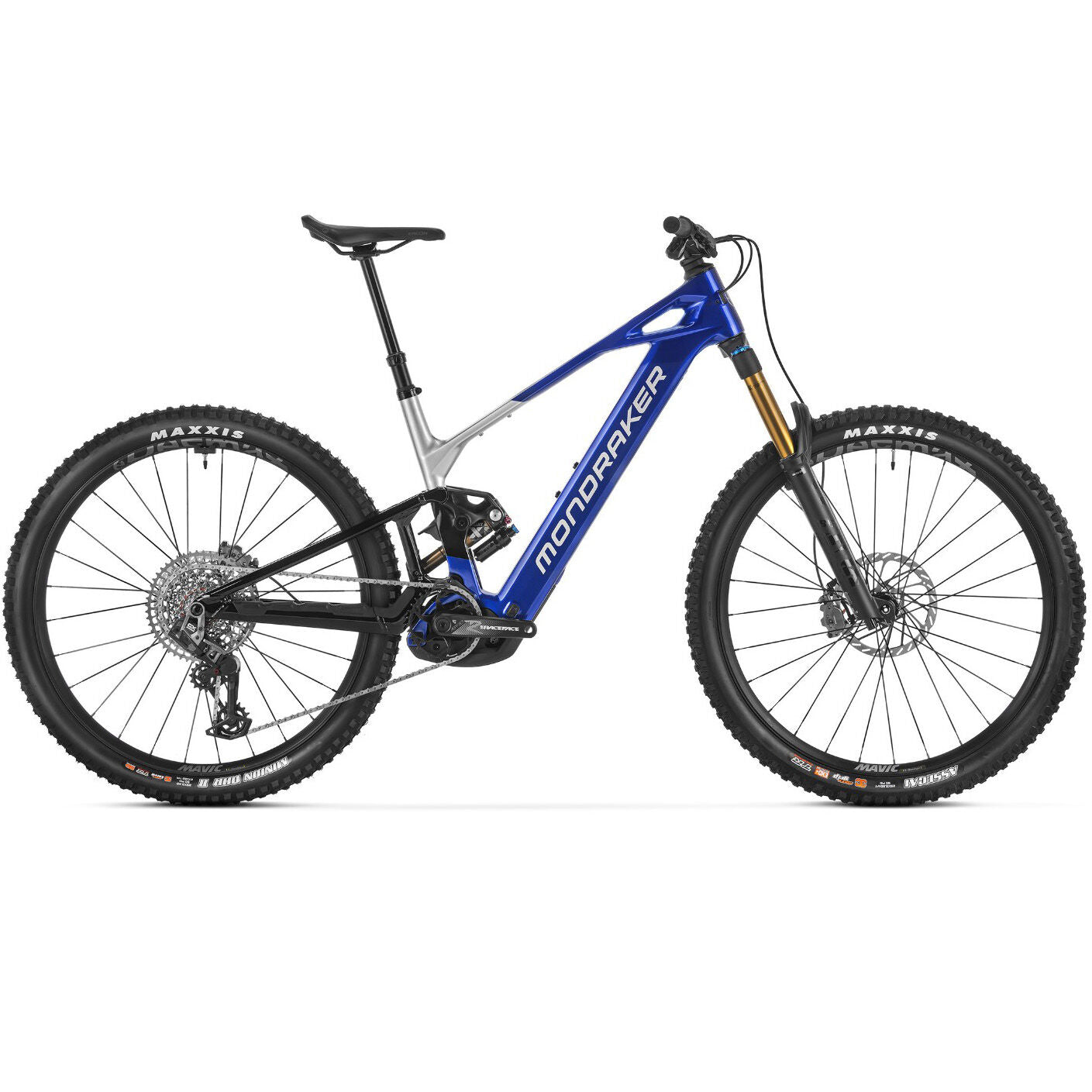

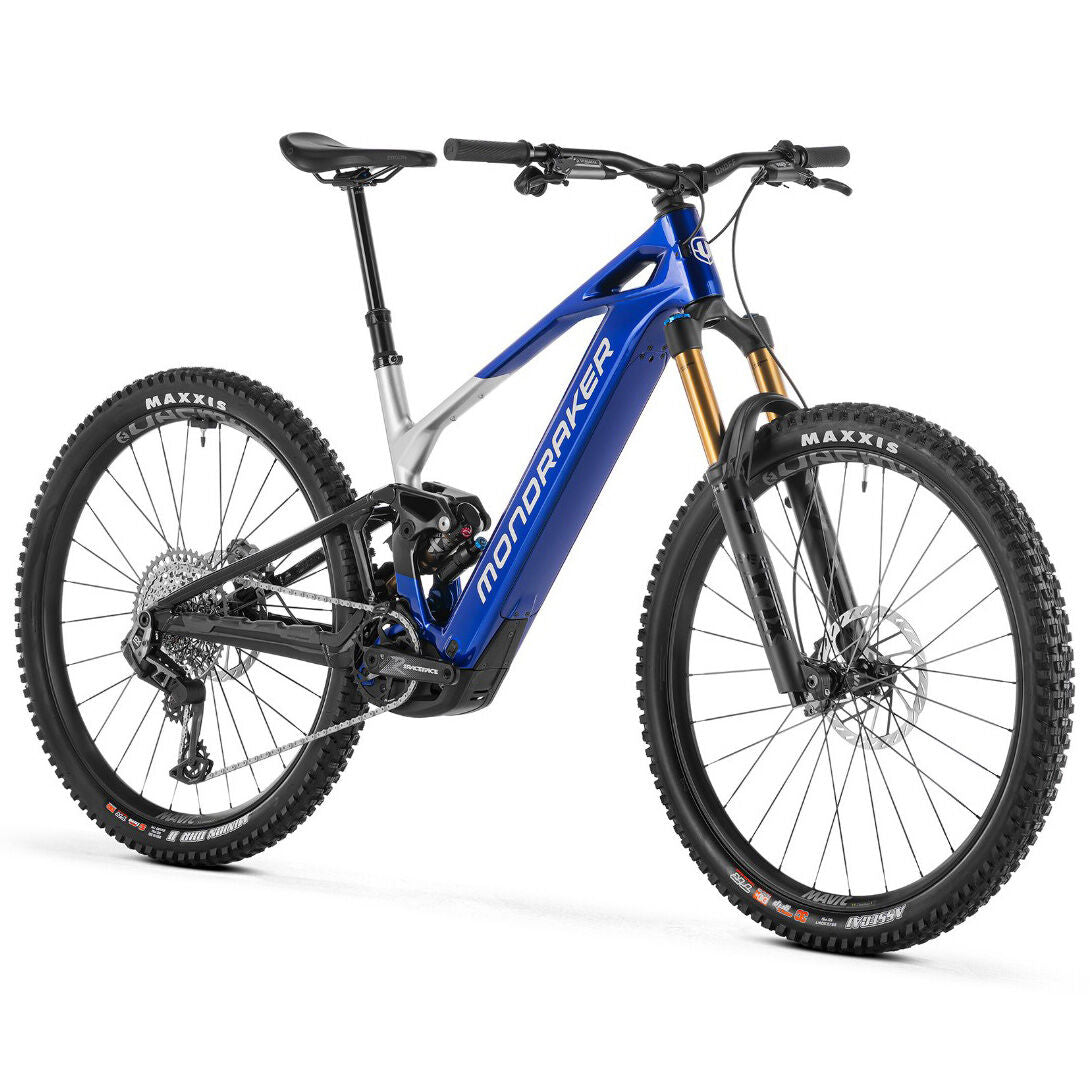

Mondraker MTB Crafty Carbon RR 2026

You’re just a few clicks away from unlocking the most powerful ride you’ve ever experienced on an ebike

The new Crafty Carbon range as well as the newly updated Level, both equipped with Bosch’s new CX Gen 5 motor (BDU 384Y), are now over-the-air upgradable. That means you can update them directly from the Bosch eBike Flow app without leaving your home.

Tech Specs

• Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
• Rear shock: Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Shock settings: CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
• Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
• Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
• Saddle: Ergon SM-10
• Front brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Brake lever: Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
• Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
• Spokes: Mavic J-bend double butted, contactless lacing
• Front hub: Mavic, Boost 15x110mm, IS 6 bolts
• Rear hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
• Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
• Rear tire: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
• Crankset: Race Face Aeffect-R ebike, 160mm
• Rings: Sram Eagle 34T T-Type, direct mount, steel, CL55
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear derrailleur: Sram GX Eagle AXS, T-Type, 12s
• Shift levers: Sram Eagle AXS Pod MMX, 12s
• Casette: Sram XS-1275, 10-52T, T-Type, 12s
• Producer's weight: 24,4 kg
• Display: Kiox 400C / Bosch Mini Remote
• Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
• Battery: Bosch Powertube 800Wh

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
