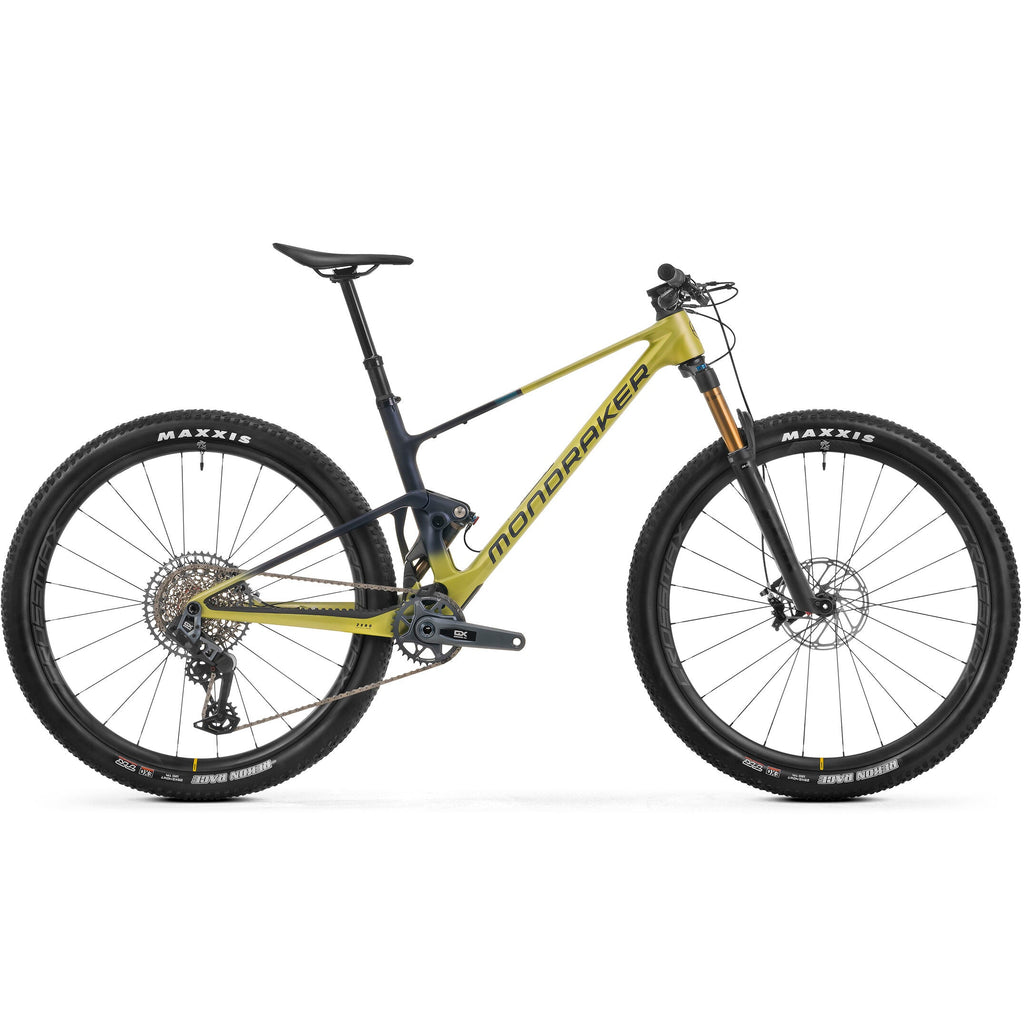

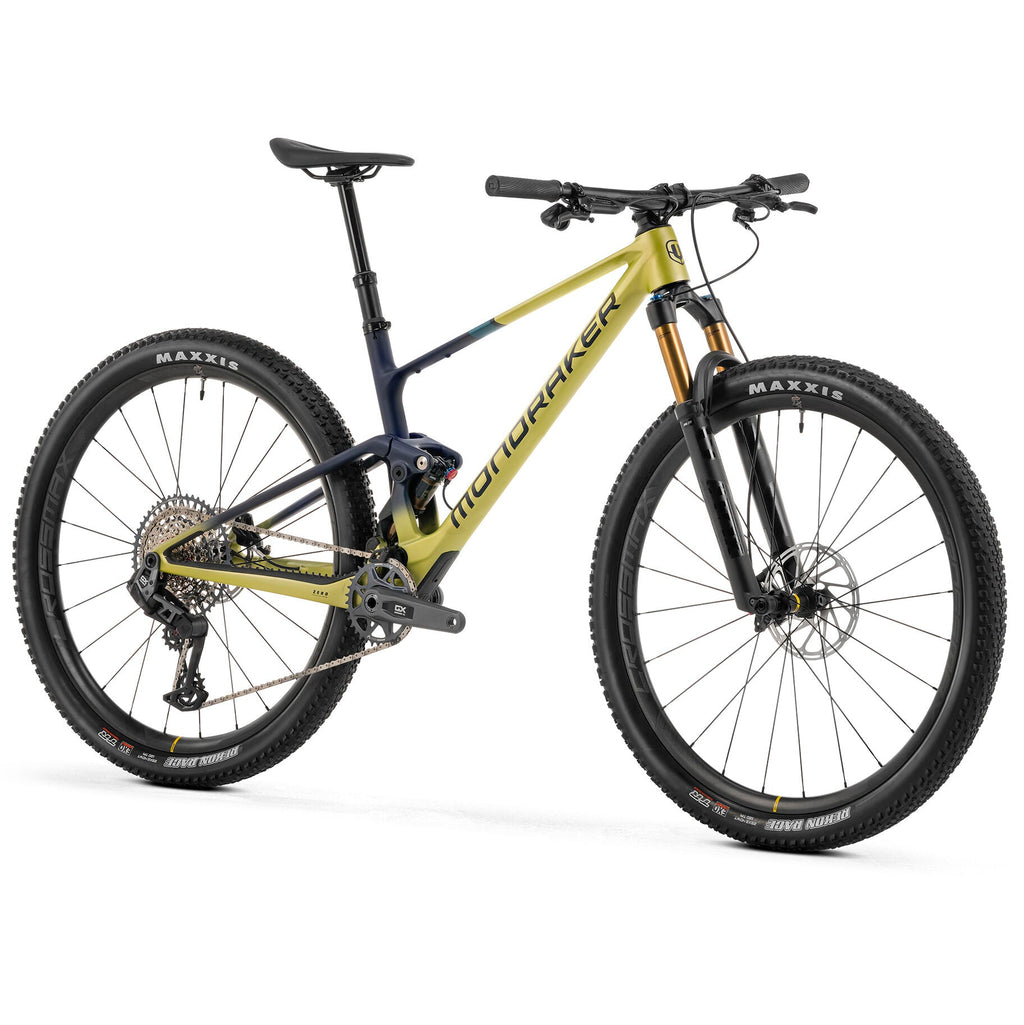

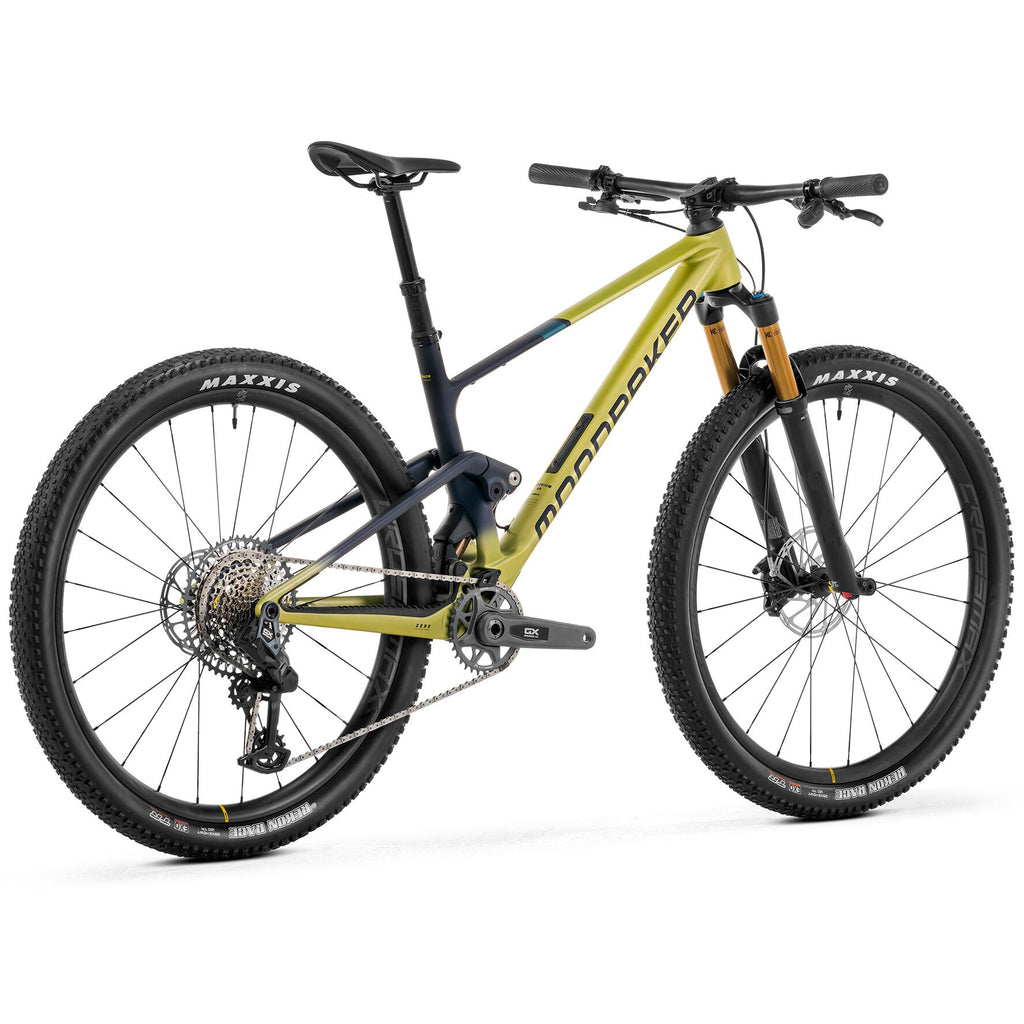

Mondraker MTB F-Podium RR 2025

A Stealth Air carbon cross-country full-suspension bike with 110 mm rear travel and XC Forward geometry for maximum climbing efficiency and downhill stability.

Tech Specs

• Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Rear shock: Fox Float SL Factory Kashima SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Shock settings: BC002 compression, Medium rebound, CMF
• Fork: Fox 34 Step Cast Float SL Factory Kashima, GRIP SL, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload
• Fork remote: Fox 3 position dual pull push to lock
• Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
• Stem: Onoff S6 6061 T6 Alloy + CNC, 31.8mm barbore, rise: -7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
• Handlebar: Onoff S6 Carbon 0.2, rise: 5mm, width: 760mm, 8º backsweep, 4º upsweep, 31.8mm barbore
• Grips: Onoff Foam lightweight 135mm
• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 2-BY Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
  Saddle: Fizik Vento Argo X5
• Front brake: Sram Level Silver 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Level Silver 4P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Level Silver, tools-free reach adjust, lever pivot bearings
• Rims: Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
• Spokes: Mavic 24 straight-pull double butted spokes
• Front hub: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
• Rear hub: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
• Front tire: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tire: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
• Crankset: Sram GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55
• Rings: 34T, CNC-machined alloy, T-Type
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram GX Eagle, 12s, Powerlock
• Rear derrailleur: Sram GX Eagle AXS T-Type,12s
• Shift levers: Sram Eagle AXS Pod Ultimate, 12s
• Casette: Sram XS-1275, 10-52T, 12s
• Producer's weight: 11,8 kg

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
