Mondraker MTB Foxy Carbon R 2026

The Mondraker FOXY CARBON R is a high-end full-suspension mountain bike designed for enduro/all-mountain riding, combining a top-of-the-line carbon frame with high-performance components and modern geometry. This bike is designed for those who love to push beyond familiar trails: technical descents, steep climbs, challenging trails. The carbon frame ensures stiffness and lightness (compared to many aluminum frames), and the Forward geometry gives you confidence on fast sections.
It keeps up the pace on climbs, but expresses its full potential when the gradient drops and the terrain becomes more challenging: generous suspension, optimized set-up, and high-performance components allow you to tackle drops, roots, jumps, and demanding excursions with confidence.

Tech spec

• Frame: Foxy 29 Stealth Air full carbon, Zero Suspension system, 150 mm travel, Forward Geometry, monoblock carbon upper link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock absorber fender, ISCG 05, custom frame guards.

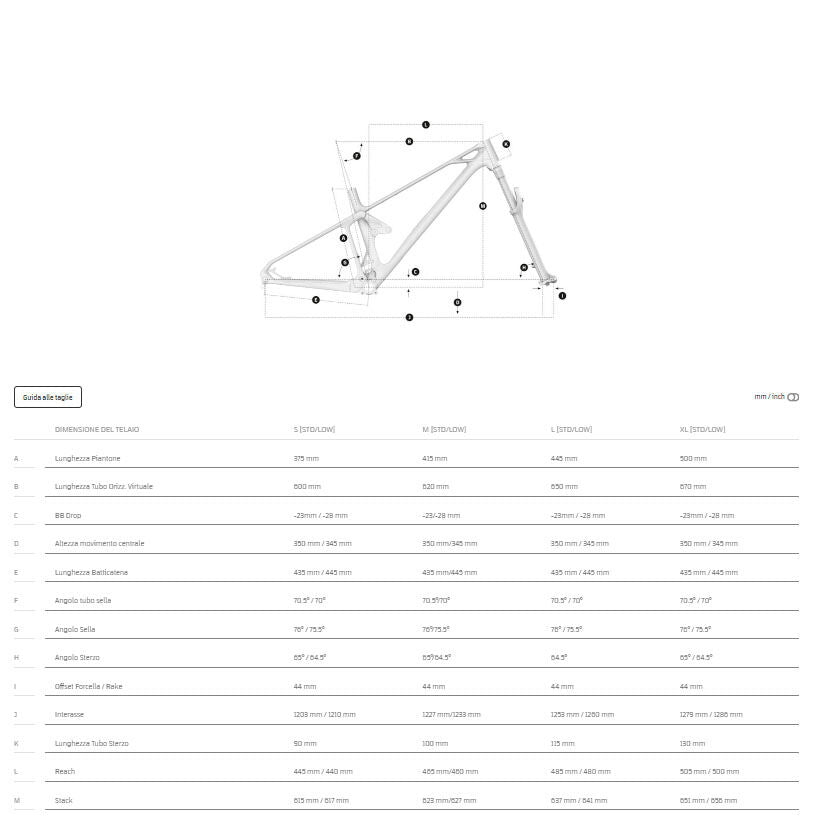

• Sizes: S: 375 mm / M: 415 mm / L: 445 mm / XL: 500 mm
• Shock absorber: Fox Float-X LV Performance, 205x65 mm. Adjustments: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8 mm lower bushings
• Shock adjustment: Light compression, light rebound, air spring spacer 0.6
• Fork: Fox 36 29 Float Performance GRIP, 160 mm, 3 positions, tapered head tube, Boost 15x110 mm axle, 44 mm offset. Adjustments: compression extension adjustment, low speed extension, air preload
• Headset: Custom Acros IS52/ZS56, 1-1/8“, 1.5” steerer tube, internal cable routing, blocklock-free seal caps
• Stem: Onoff S6 30 mm 0º, forged 6061 alloy + CNC, 31.8 mm bore
• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Size L and XL: 38 mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135 mm. L and XL: thicker size
• Seatpost: Onoff Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Saddle: Ergon Enduro SPS20
• Front brake: Sram Maven Base, 4-piston caliper 18 and 19.5 millimeters, Centerline 200 mm one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Rear brake: Sram Maven Base, 4-piston caliper 18 and 19.5 mm, Centerline 180 mm one-piece brake disc with 6 IS bolts, sintered metal pads with steel backing
• Brake levers: Sram Maven Base, SwingLink and lever pivot bushings, tool-free reach adjustment
• Rims: DT Swiss E1900 Spline 29, internal width 30 mm, aluminum sleeve, tubeless ready, 28 spokes
• Spokes: DT Champion, straight pull
• Front hub: DT 370, Boost 15x110 mm, 6 IS bolts
• Rear hub: DT 370, Boost 12x148 mm, 18T Ratched LN system, 6 IS bolts
• Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead
• Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
• Cranks: Sram 1000 Eagle T-Type, Boost, DUB axle, direct mount chainring, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm, CL 55
• Chainring: 32T, CNC machined alloy, T-Type
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm, wide
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear derailleur: Sram S1000 Eagle AXS T-Type, 12s
• Shifters: Sram Eagle AXS Pod, 12s
• Cassette: Sram XS-1270, 10-52T, T-Type 12s
• Producer's weight: 14.8 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
