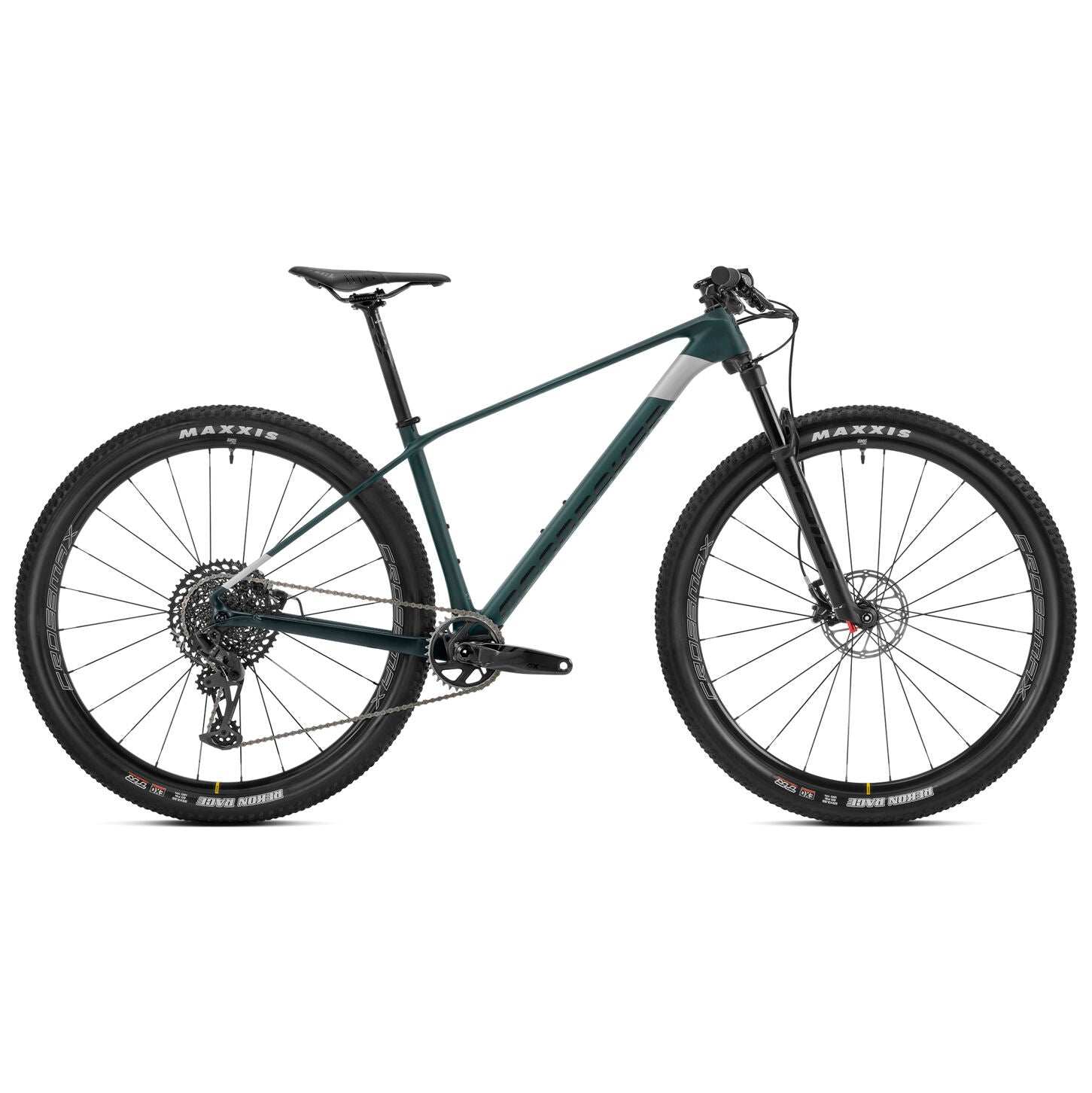

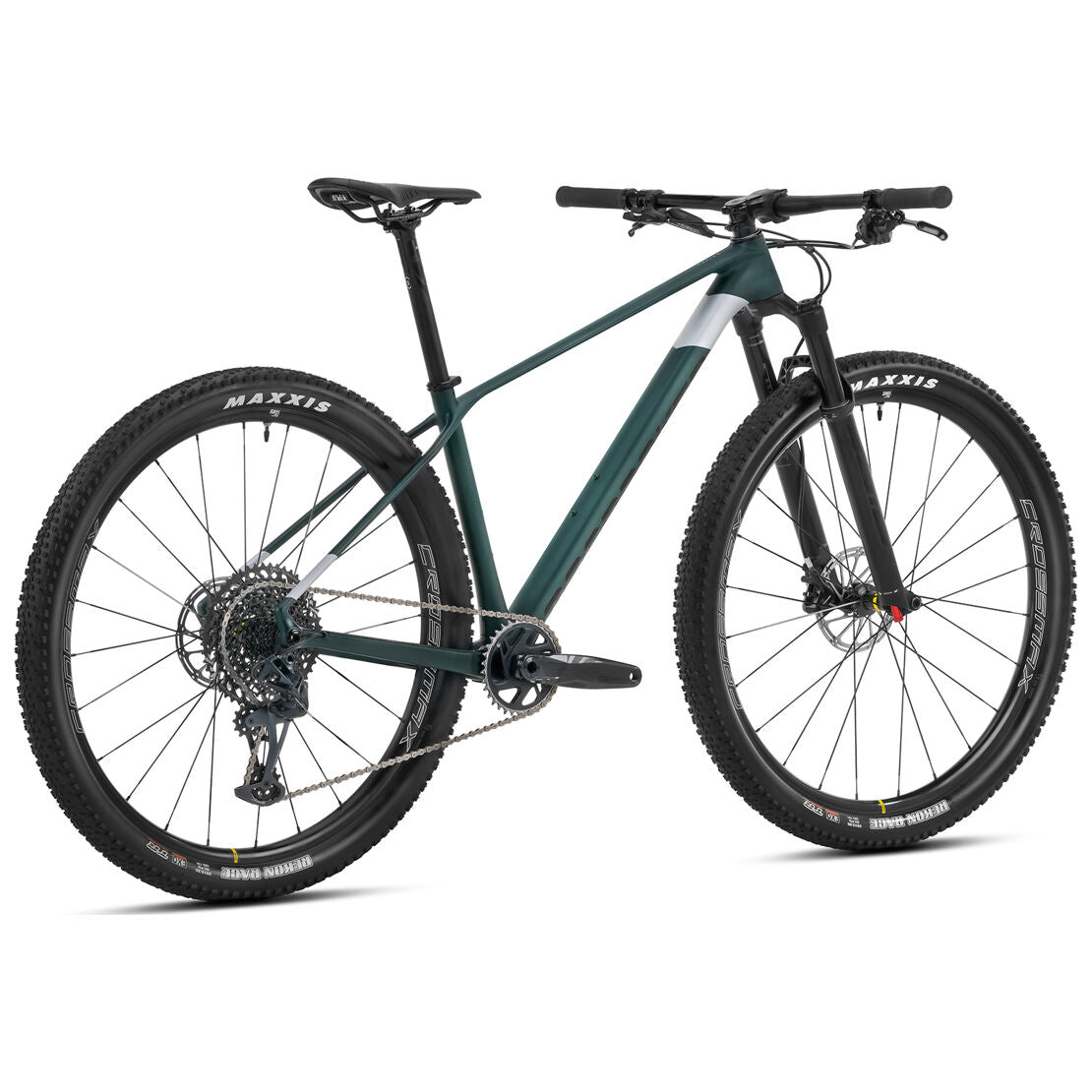

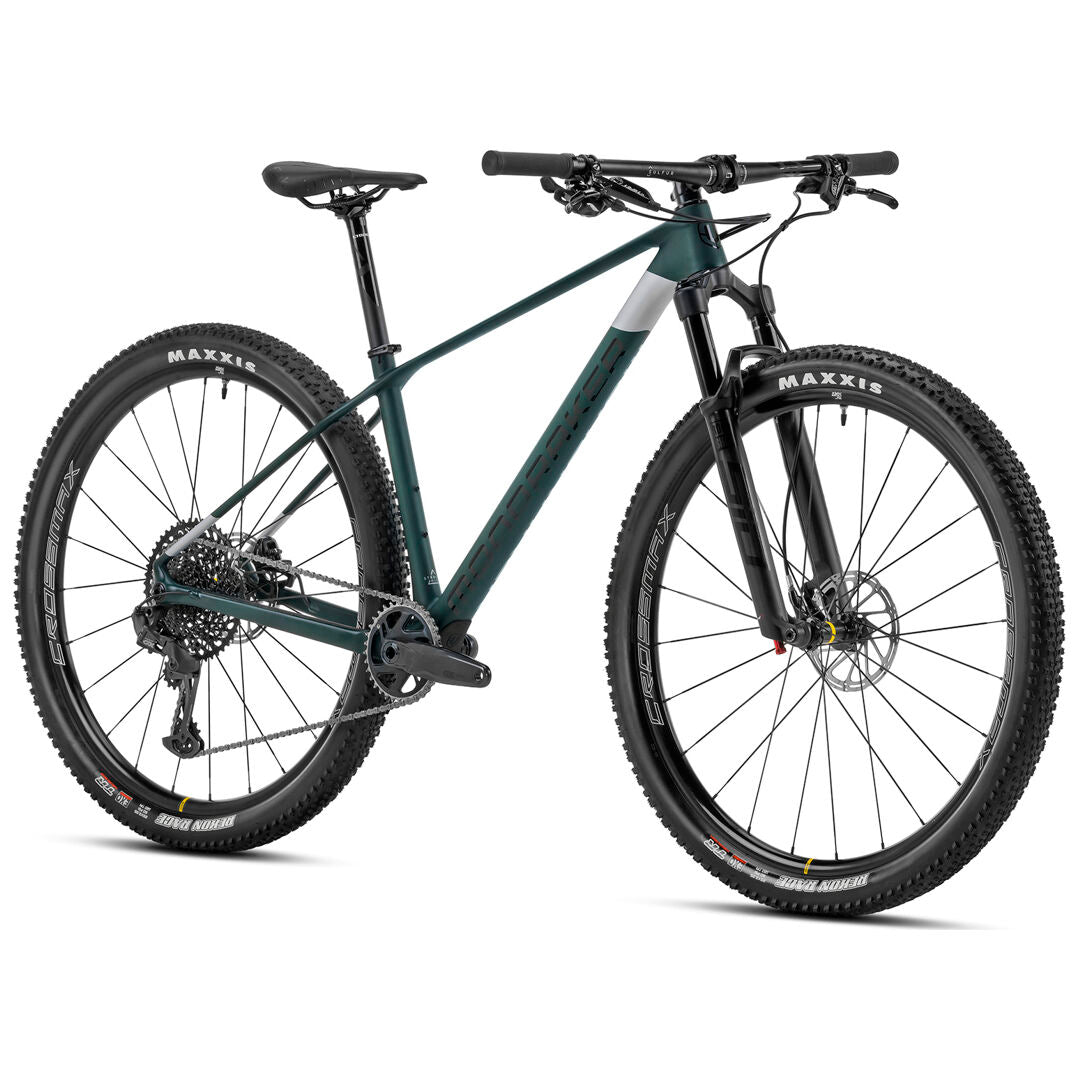

Mondraker MTB Podium

The Podium is a hardtail MTB optimised for competitive cross country racing with a frame made from Stealth Air Carbon, a high modulus carbon fibre with a minimalist design that reduces weight and increases rigidity. The bike features Mondraker's Forward Geometry: long reach, short stem, to improve stability and control on descents and maintain an efficient position on climbs.

Tech Specs

• Frame: Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148 mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible
• Sizes: M: 420 mm / L: 470 mm / XL: 510 mm
• Fork: Rockshox SID SL Base RL 29, 100 mm, battery charger, DebonAir, tapered head tube, Boost 15x110 mm axle, 32 mm aluminium outer tubes, 44 mm offset. Settings: OneLock remote compression with 2 positions (open/locked), low-speed extension, air preload
• Fork remote: RockShox OneLoc
• Headset: ONOFF Titan tapered for 1-1/8‘ to 1-1/2’ head tube, sealed ACB bearings, upper 41.8x30.5x8x45ºx45º, lower 51.9x40x8x45ºx45º
• Stem: MDK, 6061 T6 alloy, 31.8 mm bore, rise: +/-5°, length: sizes S/M: 60 mm, size L: 70 mm, size XL: 80 mm
• Handlebar: ONOFF Sulphur 0.2, double-thickness 6061 alloy, rise: 4.8 mm, width: 760 mm, backsweep 9º, upsweep 0º, 31.8 mm bore
• Grips: ONOFF Twin, 1 lock-on, 135 mm
• Seatpost: ONOFF Sulphur 0-R, 6061 T6 alloy, 3D forged, diameter 27.2 mm, length 400 mm
• Saddle: Fizik Antares R7
• Front brake: Sram Level TL, 2-piece caliper, 160 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram Level TL, 2-piece caliper, 160 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram Level TL, Direct Link actuation, lever reach adjustment with tools, lever rotation bushings
• Rims: Mavic Crossmax 29, internal width 25 mm, welded rim, hookless, tubeless ready, 24 spokes
• Spokes: Mavic double-thickness straightpull, contactless lacing
• Front hub axle: Mavic, Boost 15x110 mm, 6 IS bolts
• Rear hub axle: Mavic, Boost 12x148 mm, ID360 ratchet system, 6 IS bolts, hub with integrated XD freehub body
• Front tyre: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tyre: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
• Cranks: Sram GX Eagle, Boost, DUB axle, direct mount chainring, size S: 170 mm, sizes M/L/XL: 175 mm
• Chainring: 34T, CNC machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm
• Chain: Sram NX Eagle, 12s, Powerlock
• Rear derailleur: Sram GX Eagle, type 3 roller bearing clutch, cage lockout, 1x12s, X-Actuation 1:1
• Shifters: Sram Trigger GX Eagle, 12s, X-Actuation 1:1
• Cassette: Sram XG-1275, 10-50T, 12s
• Dropout: Sram UDH
• Weight without pedals: 9.7 kg

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
