Park Tool bottom bracket headset press install tool

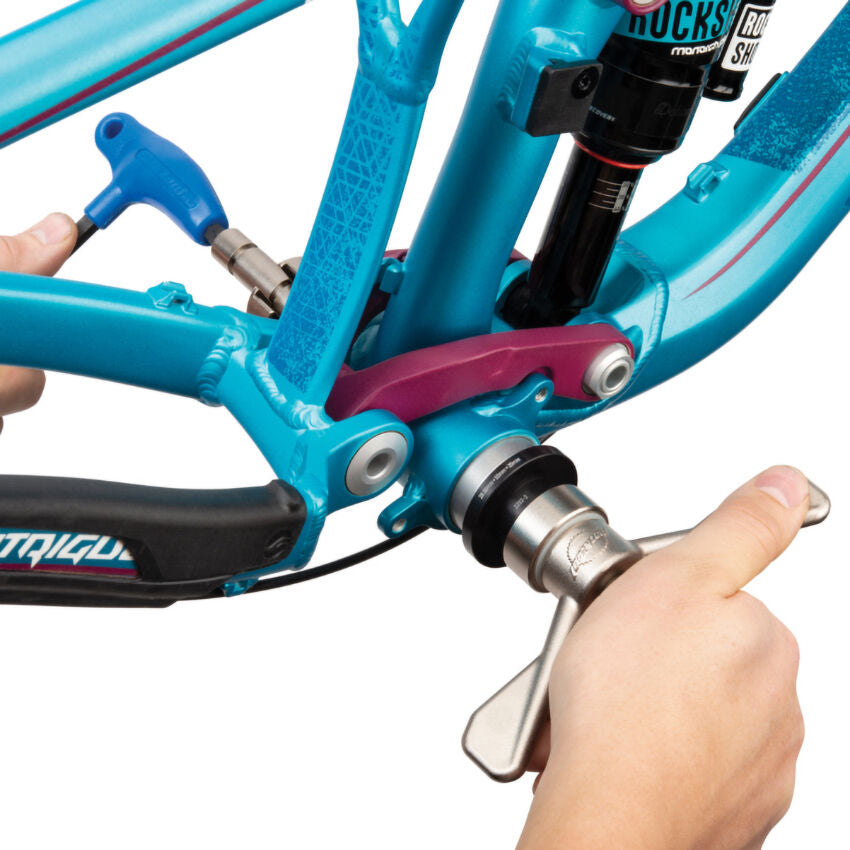

The BBP-1.2 quickly and accurately installs bottom bracket bearings, cups and adapters into press fit bottom bracket shells. The complete set of precision-machined bushings matches up with most common bottom bracket cup dimensions. The press assembly features a comfortable handle, oversized shaft, and magnetic back plate for quick and easy assembly.

Features

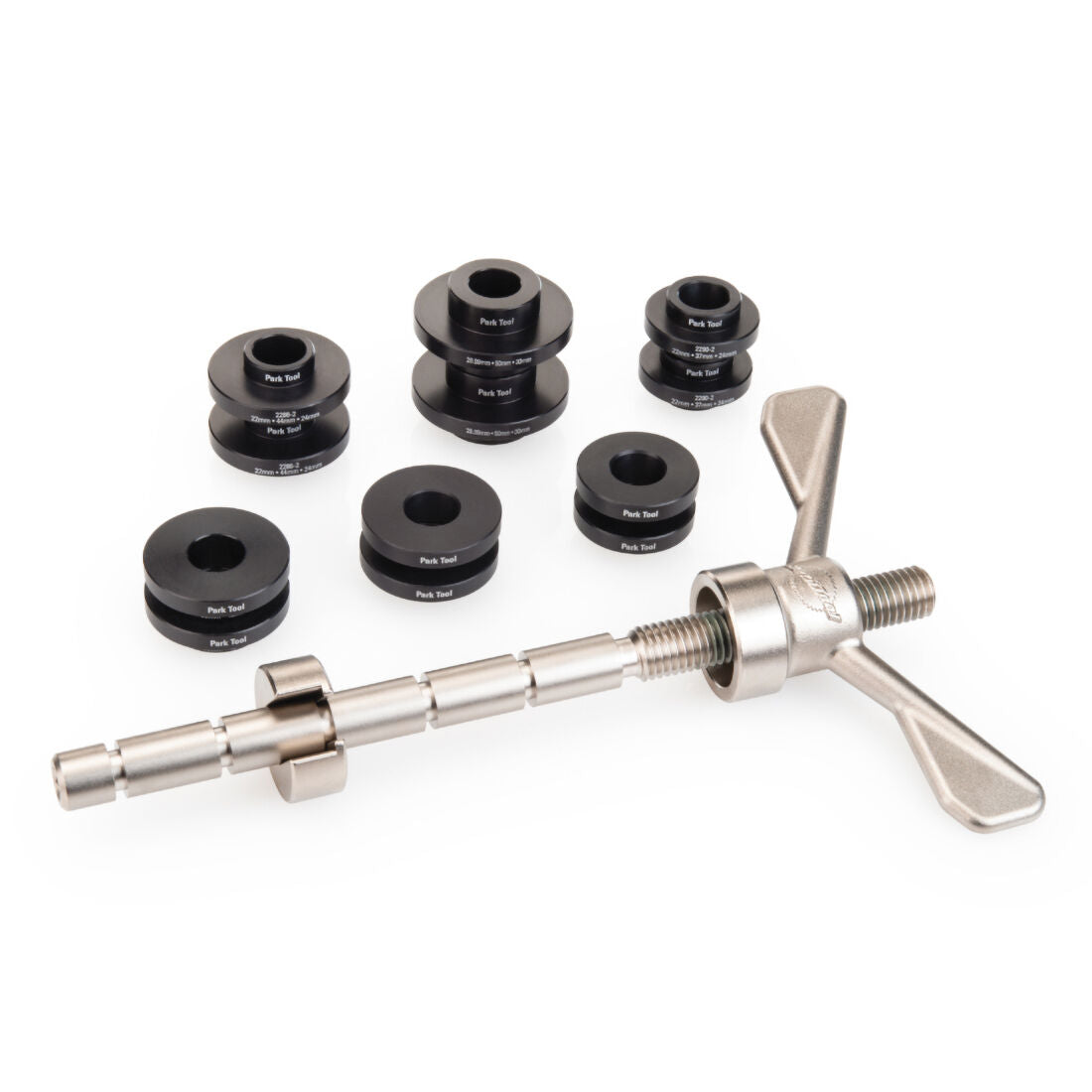

• Six sets of precision-machined bushings in nine sizes
• Compatible with bottom bracket shell widths from 68 mm to 150 mm
• Magnetic quick-release design allows for fast installation and removal of tool
• Organized in a convenient storage case

Fits these bottom bracket configurations

• 386EVO
• BB30
• BB86
• BB90
• BB92
• BB95
• BB121
• BMX Mid
• BMX Spanish
• OSBB
• PF30
• PF41
• Press Fit 24
• PressFit GXP®
• BBright™ Direct Fit
• PF30 BBright™ Press Fit
• Shimano® Press Fit
• All Press Fit DUB®
• Mid and Spanish and DUB®
• Suitable for use on 68 to 150 mm boxes

Producer's note: The BBP-1.2 can be configured to remove bottom bracket bearings, cups, and adaptors using the extraction tools included with the BBP-AOS Bottom Bracket Bearing Extractor Add-On Set (requires BBP-1.2 for use).

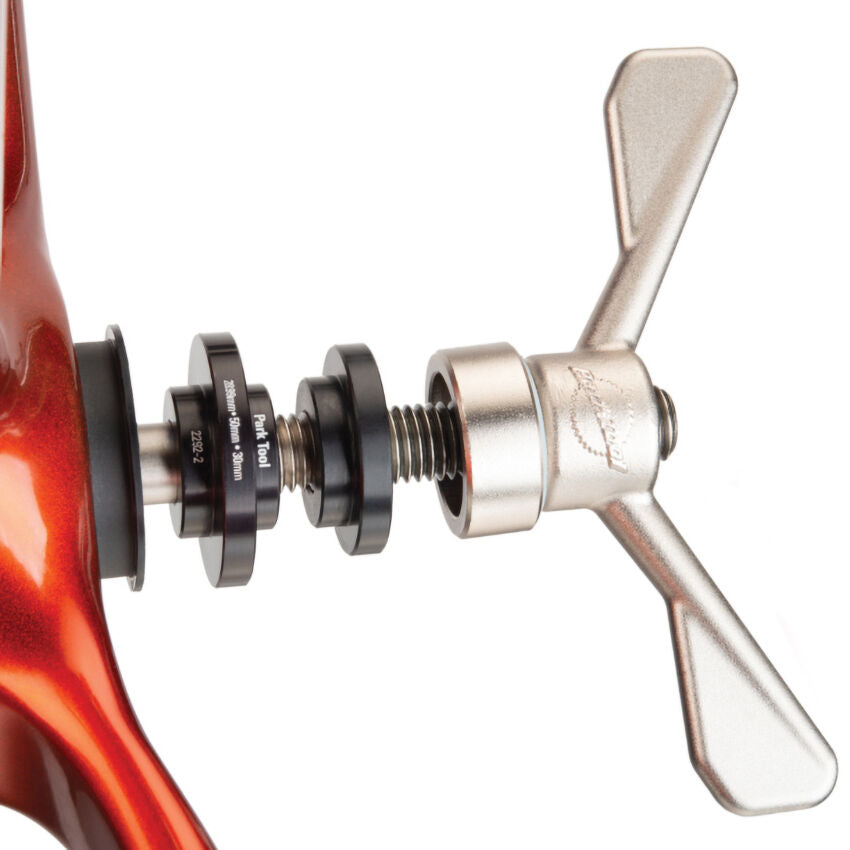

Bottom bracket bearings for 30 mm spindles use 2292-2 drifts. It is important to first install any other drift from the BBP-1.2 against the handle assembly before using the 2292-2 drifts (see image gallery). This extra drift prevents the smaller (DUB®/28.99 mm) side of the 2292-2 drift from contacting the handle press plate and being pushed into the handle.
