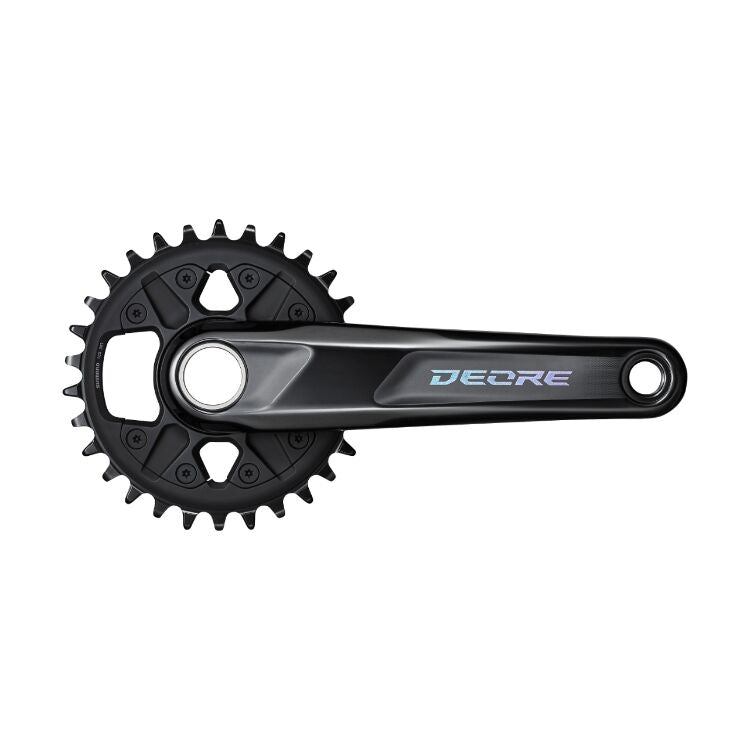

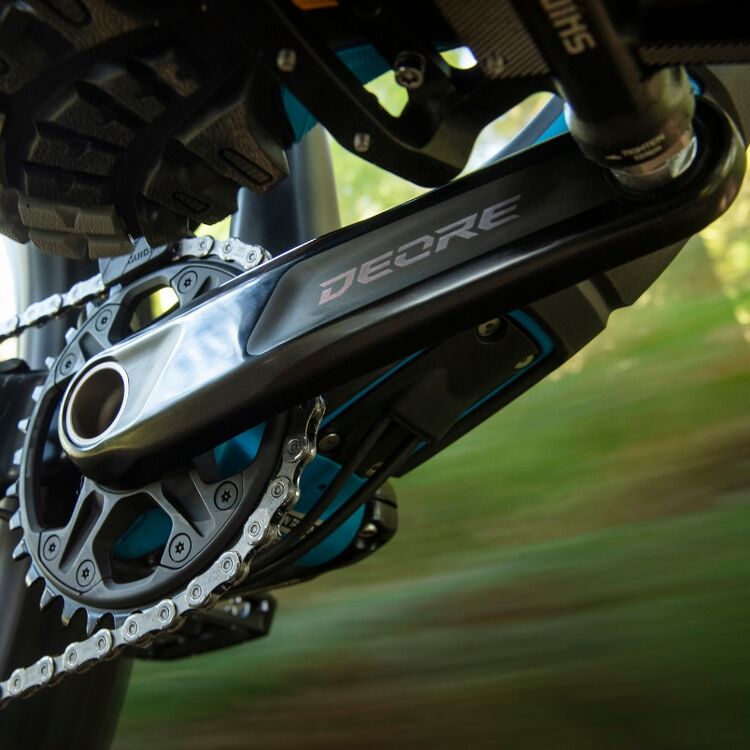

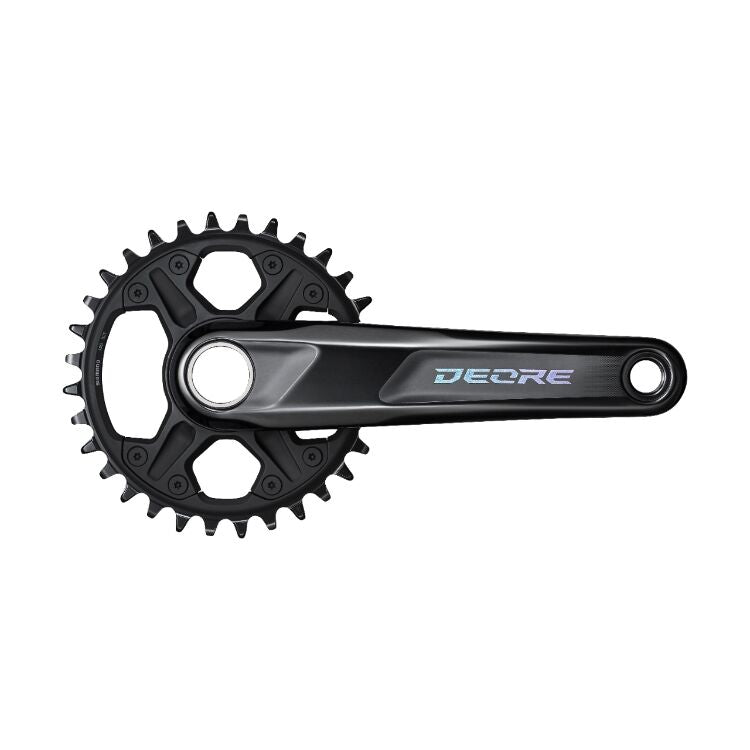

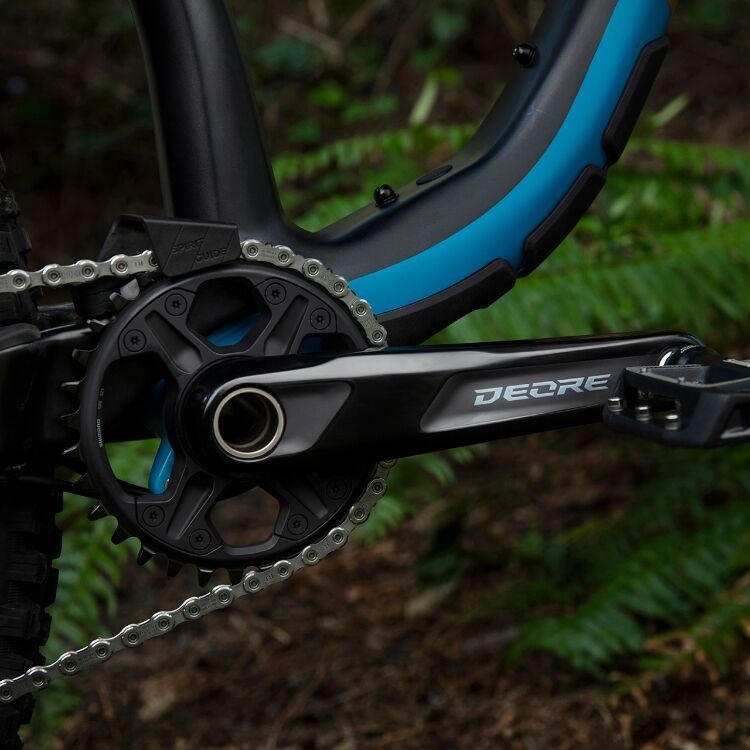

Shimano Deore FC-M6100-1 1x12S crankset

The SHIMANO DEORE FC-M6100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172 mm Q-factor that is compatible with 142 mm or 148 mm O.L.D. frames.

Features

• Superior chain retention for smoother riding even over rough terrain
• DYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retention
• Direct mount chainring

Technical specifications

• Series: DEORE M6100 Series
• Rear speeds: 12
• Compatible chain: HG 12-speed
• Chain line (mm): 52
• O.L.D.|Thru (mm): 142, 148
• O.L.D.|QR/Nut (mm): 135, 141
• P.C.D. (mm): Direct
• Spider/gear arms: 4
• Chainring combination: 30T, 32T
• Q-factor (mm): 172
• 2-Piece crankset
• Recommended bottom bracket|Threaded (normal): BB-MT501
• Recommended bottom bracket|Press-Fit: BB-MT500-PA
• Threaded bottom bracket shell width (mm): 68
• Threaded bottom bracket shell width (mm): 73
• Crank fixing screw included

Technology

Dynamic Chain Engagement+
Special gear teeth function
SHIMANO’s DYNAMIC CHAIN ENGAGEMENT+ is a special gear teeth profile designed for use in single-chainring configurations for XC, enduro, and trail riding.
It gives more chain retention and smoother pedaling - even over bumpy terrain. Chain retention of any gear will reduce abrasion and worn out.

2-piece crank set
Integrated crank arm and bottom bracket
Increased rigidity with less weight
Wider bearing positioning
Rigidity is enhanced and pedaling force is efficiently transmitted
Precision Bearings
Low maintenance and simplified installation

HG chain design for Hyperglide+
HYPERGLIDE+ dedicated chain delivers greater chain retention, improved shifting efficiency, and smoother transmission over rough terrain.
Benefits & Features: Improved chain retention encourages more aggressive all-terrain riding and relieves chain-issue anxiety. Smoother drivetrain transmission and enhanced shifting performance sharpens riders’ concentration and improves acceleration. Better chain engagement cuts abrasion, reduces maintenance, and lengthens the lifespan of the chain.
Revamped HG chain features an extended inner link plate that connects seamlessly with new chainring tooth shape for ultra-efficient drivetrain performance.
This design change reduces the vibrations normally caused by the inner and outer chain plates rolling onto the chainring, and provides better chain engagement, stronger retention, and smoother pedaling.
