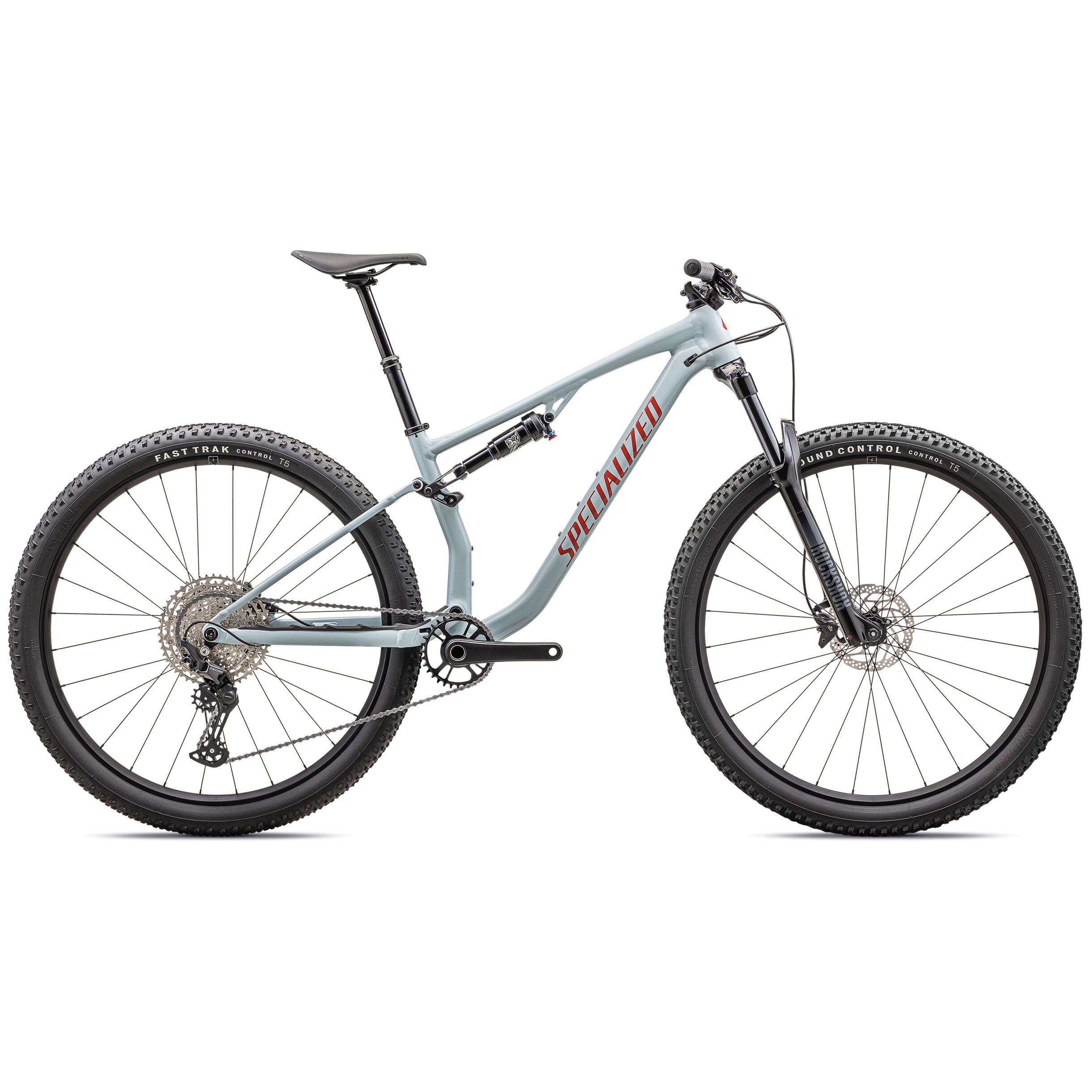

Specialized Chisel

The new Specialized Chisel, the lightest and fastest full suspension bike in its class.

Technical Specifications

• Frame: Specialized D'Aluisio Smartweld M5 Alloy, hydroformed tubes, Progressive XC geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm wheelbase, compatible with 30.9mm dropout.
• Rear Shock: X-Fusion PRO-02, 190x40mm, Ride Dynamics Tuned, rebound adjustment, compression adjustment
• Fork: Rockshox Recon Silver RL, 120mm travel, Motion Control shock, 42mm offset, Maxle Stealth, 15x110 thru axle
• Handlebar: Specialized, 3D forged alloy, 4 bolts, 7 degree rise
• Grips: Specialized Trail grips
• Handlebar: Specialized Alloy, 20 mm rise, 31.8 mm, 760 mm width
• Front brake: Shimano M4100, 2-piston caliper, hydraulic disc, 180 mm rotor
• Rear brake: Shimano M4100, 2-piston caliper, hydraulic disc, 160 mm rotor
• Rear derailleur: Shimano Deore, M6100, 12pd, Shadow Plus
• Shifters: Shimano Deore, M6100, I-Spec EV, 12-speed
• Sprocket Pack: Shimano Deore M6100, 12spd with Hyperglide+, 10-51t
• Chain: KMC X12EPT, 12-speed, anti-corrosion/reusable coating, Missing Link
• Crankset: Alloy crankset, 1x direct mount chainring, 165/170/175mm
• Chainrings: 32t
• Bottom Bracket: BSA Bottom Bracket, PW-MBB73
• Rims: Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h
• Front hub: Shimano MT410-B, Centerlock 28h, 15x110 Boost
• Rear hub: Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline
• Front tyre: Specialized Ground Control, Control Casing, T5 Compound, 29x2.35
• Rear tyre: Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
• Spokes: Stainless, 14g
• Inner tubes: Standard 40mm PV 29x1.75-2.4
• Saddle: Body Geometry Power Sport, steel rails
• TranzX Dropper seatpost, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL:, 150mm
• Saddle Collar: Specialized Alloy, 34.9mm
• Manufacturer weight: 13.73kg (30lb, 4.3oz)
• Weighted measurement: MD
