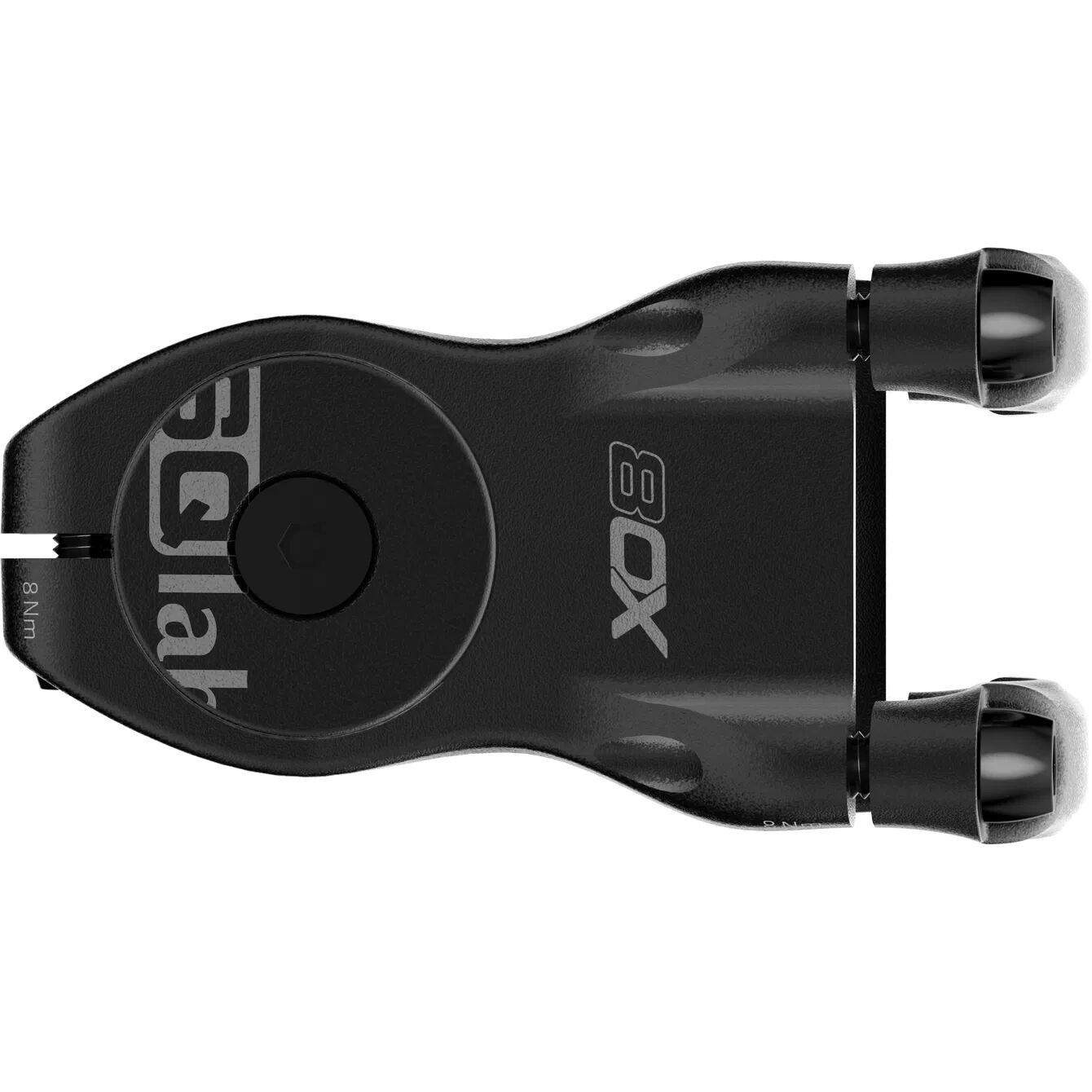

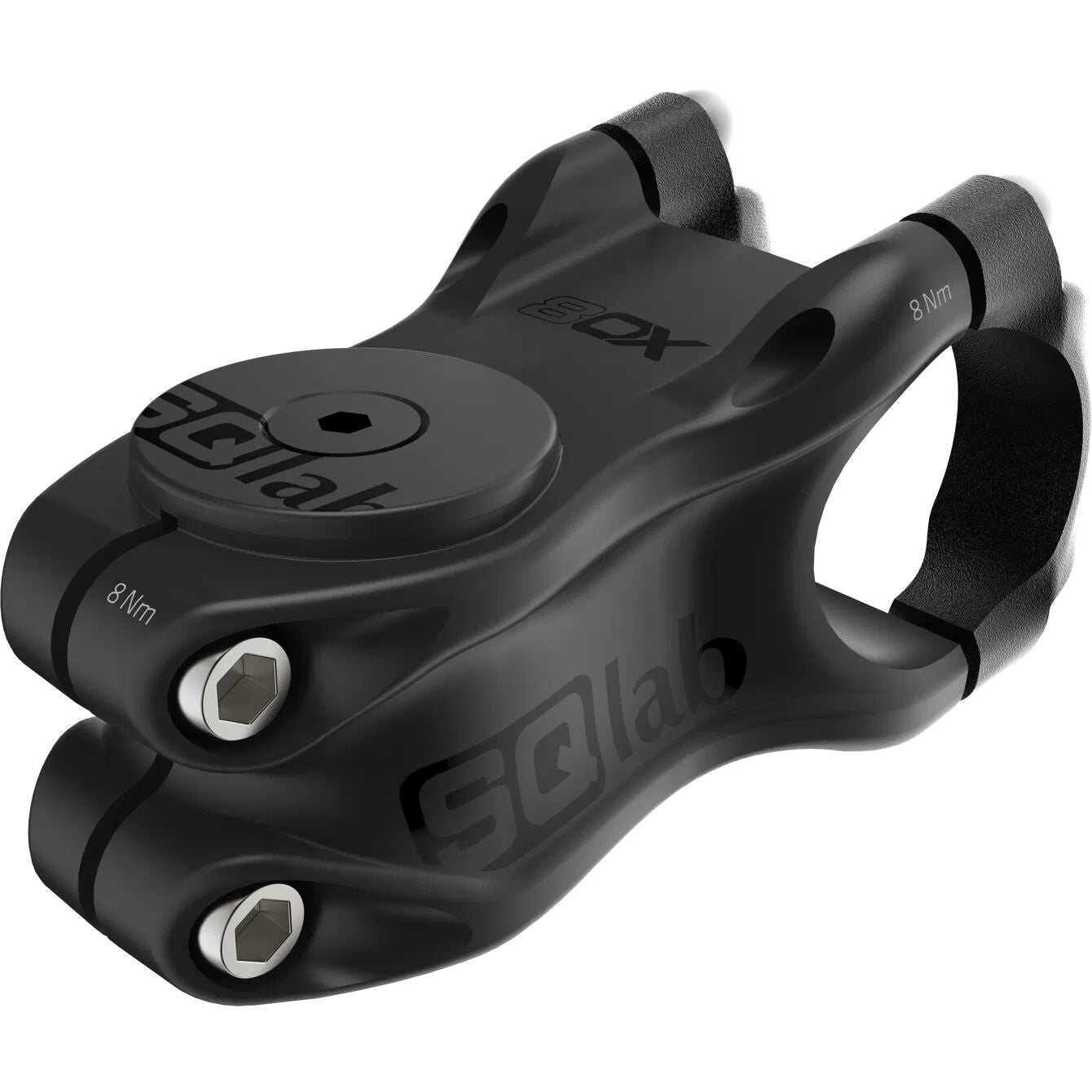

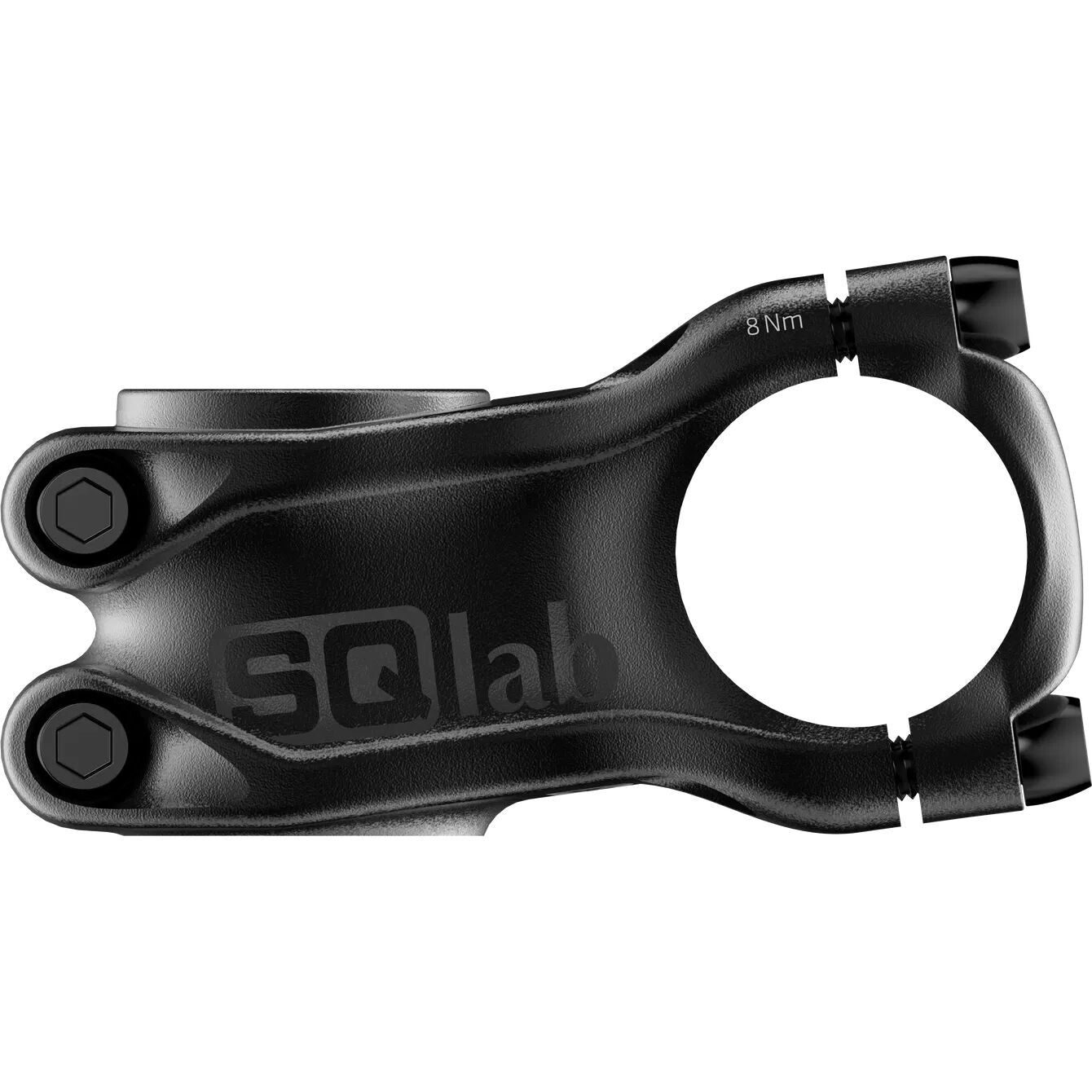

SQlab 80X stem

The SQlab 8OX stem is designed for maximum load capacity with minimal weight. Made from high-strength aluminum, it offers an ideal combination of stability and performance, tailored to the high forces required for All Mountain and Enduro. The design is functional and reduced to the essentials for a durable, robust connection between fork and handlebar. With an angle of 6° and available in nine lengths, the 8OX allows for precise adjustment to individual geometry and seating position.

Features

• Made from high-strength aluminum for maximum stability with minimal weight
• Available in nine lengths (35–120 mm)
• 31.8 mm clamp diameter
• Ahead cap and ahead cap screw not included in delivery

Tech spec

• Area of use: All Mountain & Enduro
• Producer's weight: 145 g / 156 g / 167 g / 184 g / 193 g
• Material: Aluminum 7050
• Material screws: Steel
• Stem angle: +6°
• Legnth: 35 / 50 / 60 / 70 / 80 / 90 / 100 / 110 / 120 mm
• Reach: 34,8 / 49,7 / 59,7 / 69,6 / 79,6 / 89,5 / 99,5 / 109,4 / 119,3 mm
• Rise: 3.7 / 5.2 / 6.3 / 7.3 / 8.4 / 9.4 / 10.5 / 11.5 / 12.5 mm
• Clamp diameter handlebar: 31.8 mm
• Clamp width handelbar: 50 mm
• Clamp diameter head tube: 28.6 (1 1/8") mm
• Clamp height head tube: 39 mm
• Minimum head tube overlap: 32 mm
• Maximum torque: 8 Nm
• E-bike ready: Yes
