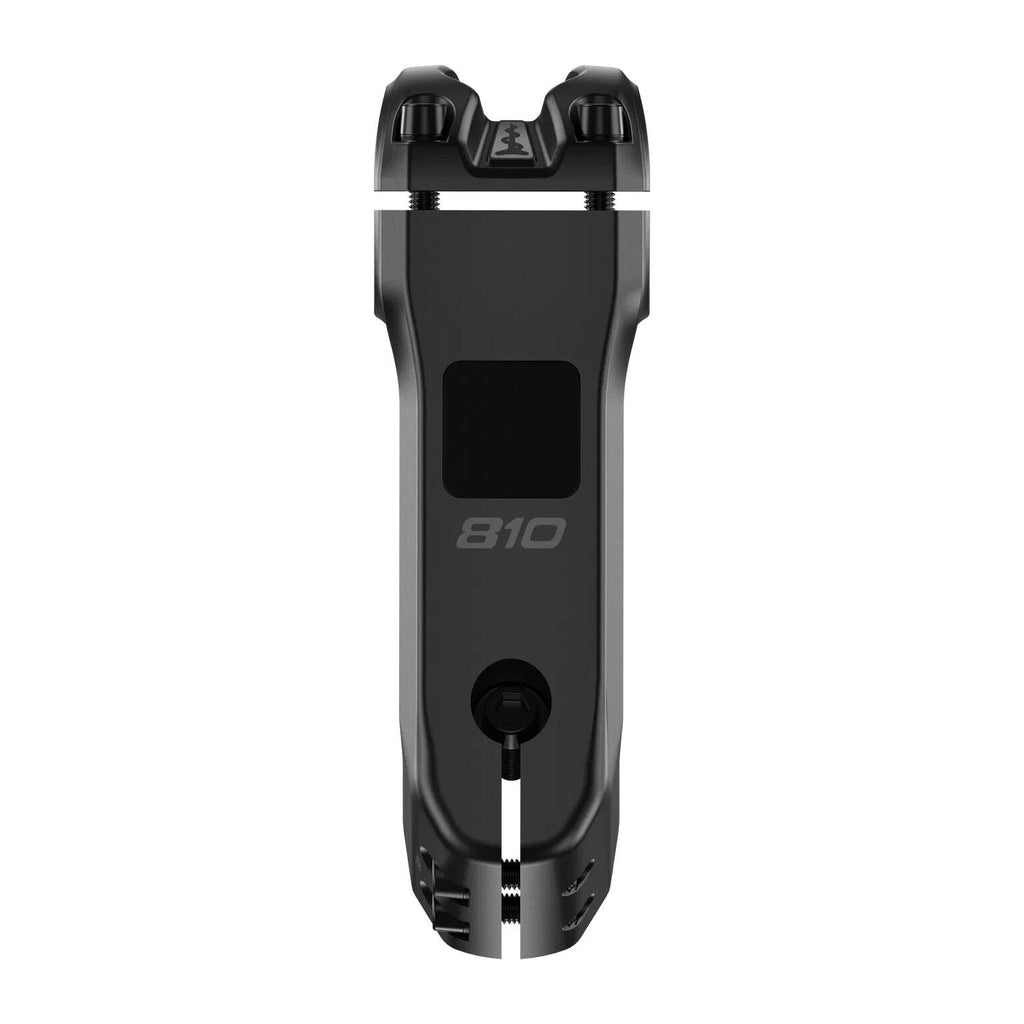

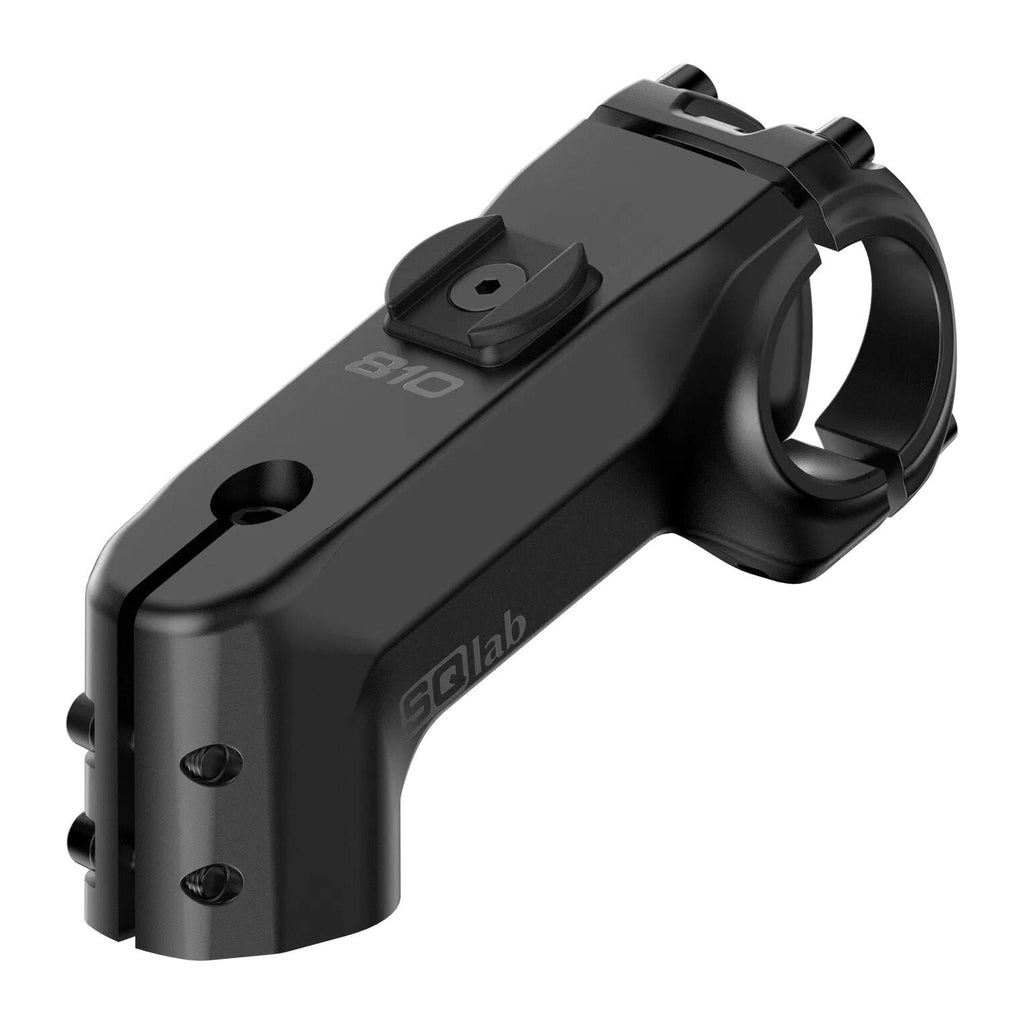

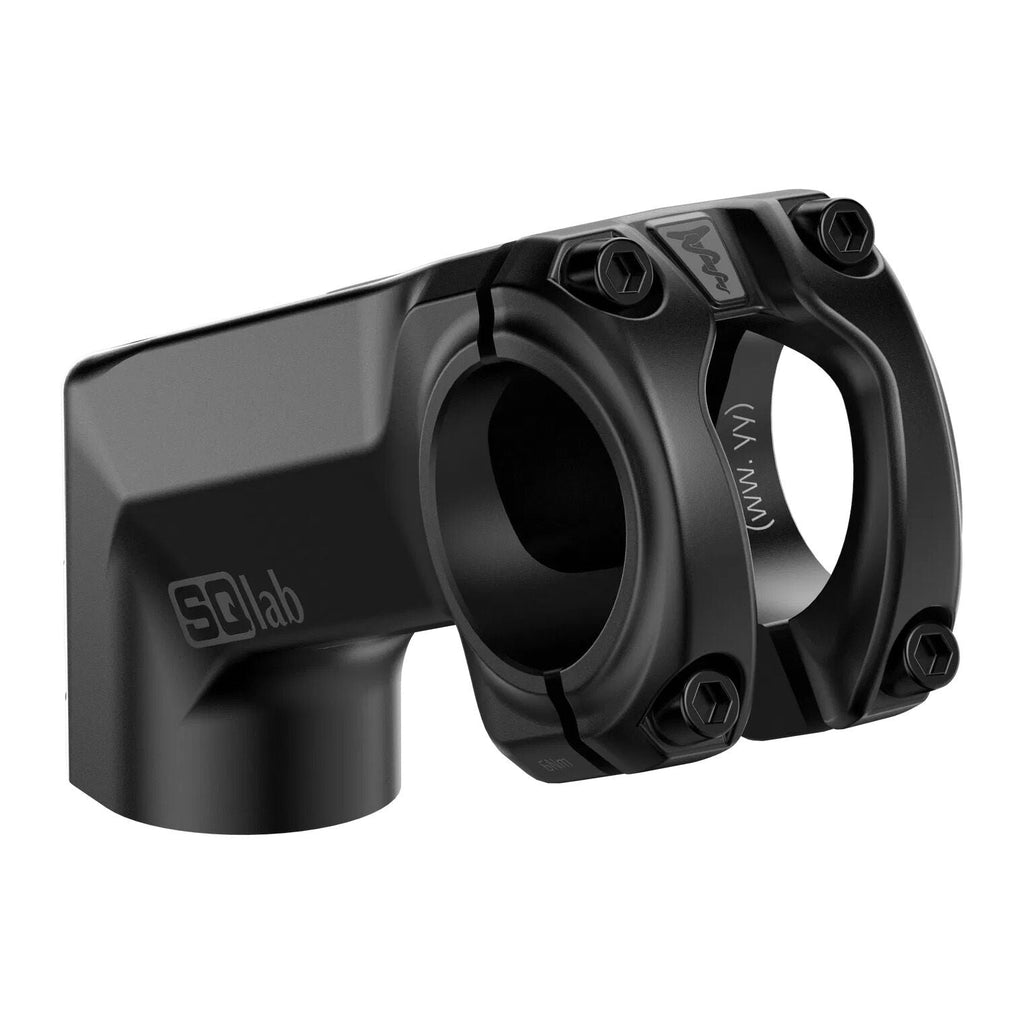

Sqlab 810 3.0 stem

Perfect ergonomics and versatility for the comfort-oriented mountain bike

The comfort upgrade for comfort-oriented mountain bike tours. This stem combines outstanding ergonomics with versatile mounting options for smartphones, lights or a camera. Ideal for extended MTB tours - this stem is the ideal choice for uncompromising riding comfort.

3 lengths for individual needs
For taller riders or those who prefer a slightly more stretched riding position, the 810 stem offers three different length options: 70 mm, 90 mm and 100 mm. In combination with the 310 3.0 handlebars, which have an 18° backsweep, an ergonomic and relaxed position on the mountain bike is made possible.
The 18° backsweep of the handlebars ensures a straight transition of the wrist, which promotes a natural hand position. This combination relieves the carpal tunnel and the median nerve, which effectively prevents numb and tingling hands and fingers

20° stem for comfortable riding
Developed for relaxed mountain bike tours, the 810 3.0 stem offers an ergonomic inclination of 20°, which ensures a natural and comfortable riding position.
This ergonomic alignment reduces the strain on the wrists, shoulders and neck, which helps to prevent fatigue and makes the riding experience more comfortable.

SP-Connect
The integrated option for mounting a smartphone using an SP-Connect™ adapter makes it possible to securely and visibly attach a smartphone with an integrated holder to the stem.

Mounting options
The 810 3.0 stem also offers the option of mounting a light or camera. For extended mounting options, the 802/821 faceplate must be replaced, which is available separately. Thanks to the high-quality and robust design, your equipment sits securely - even on the most demanding routes.

Features

• SP Connect™ interface for secure smartphone mounting
• Available in 70, 90, and 110 mm for individual cockpit configuration
• Optional mount for light or camera (separately available from the SQlab webshop)
• 20° angle for ergonomically optimized riding position on sporty trekking bikes
• Tested to MTB standard for highest safety and durability

Tech spec

• Area of use: Trekking Sport
• Producer's weight: 246 / 254 / 291 g
• Material: Aluminum 6061
• Material screws: Steel
• Stem angle: +20°
• Legnth: 70 / 90 / 110 mm
• Reach: 66 / 85 / 103 mm
• Rise: 24 / 31 / 38 mm
• Clamp diameter handlebar: 31.8 mm
• Clamping width handelbar: 44 mm
• Clamp diameter head tube: 28.6 (1 1/8") mm
• Clamp height head tube: 40 mm
• Minimum head tube overlap: 35 mm
• Maximum torque: 6 Nm
• E-Bike ready: Yes
• Din/astm categories: 3
