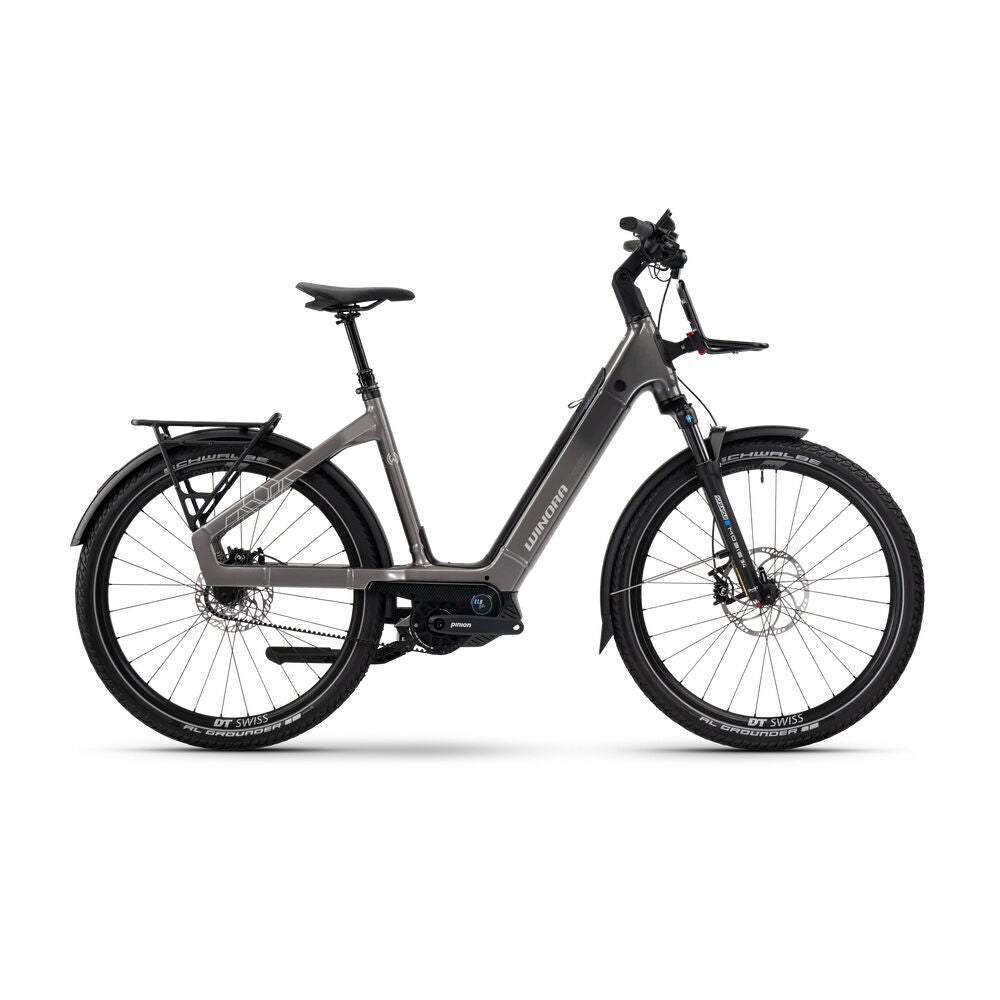

Winora Sinus AS Low

Lightweight, comfortable, automatic

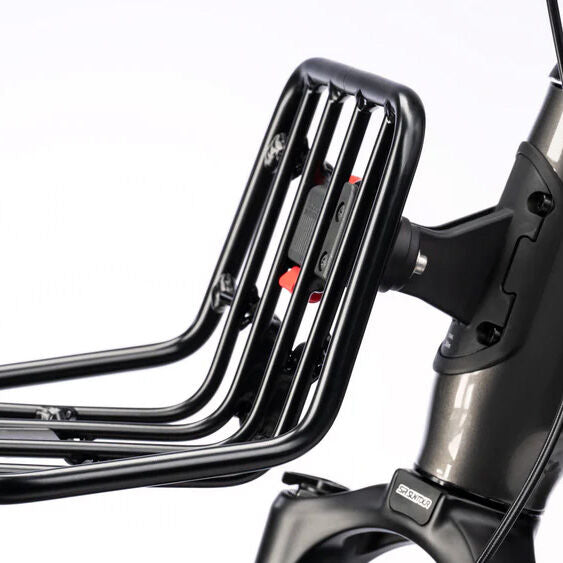

The Winora Sinus AS marks the beginning of a new era in e-bike technology. Its integrated Pinion E-Drive transmission system combines a powerful motor with a 9-speed gearbox and automatic electronic shifting, creating an innovative drive system that offers an exceptionally smooth and worry-free riding experience. However, the automatic gear shifting is just one of the many reasons you will love this comfort e-bike: its elegant design stands out for its practicality in everyday life. Two racks, front and rear, are part of the equipment, along with a total load capacity of 180 kg. In addition, the 800Wh battery ensures that you never have to worry about range again. It's comfortable: the low-step frame and adjustable telescopic seat post make it even easier to get on and off the bike. Riding an e-bike has never been so comfortable.

Tech spec

E-System

• Battery: Tubepack 800Wh
• Charger: Pinion Fit 3-4,8A 48V

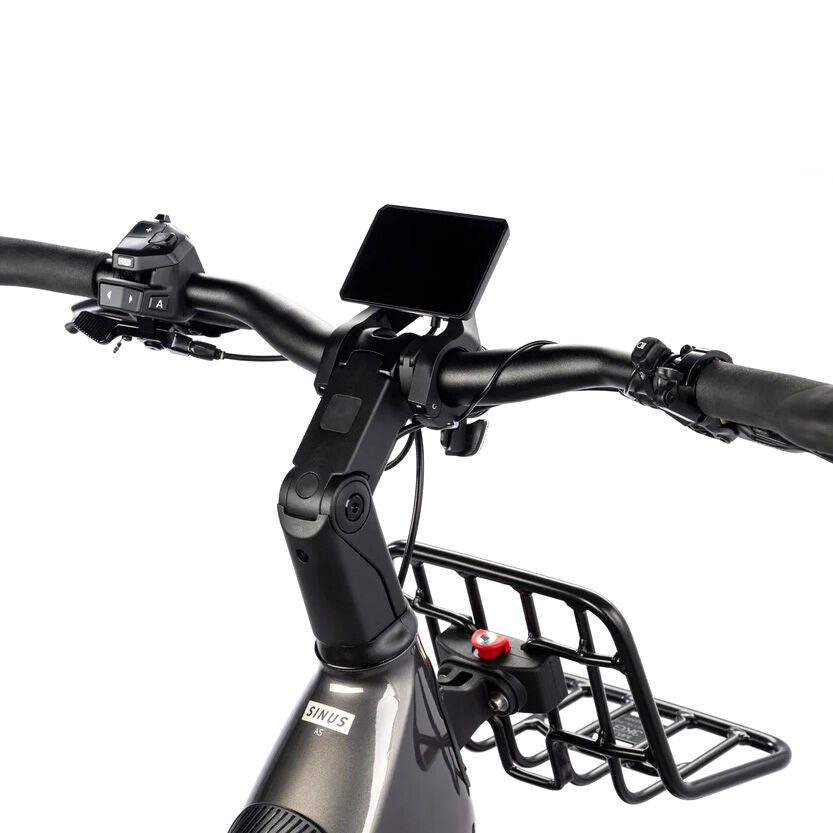

• Display: Pinion Comfort Fit + Remote eShift Fit

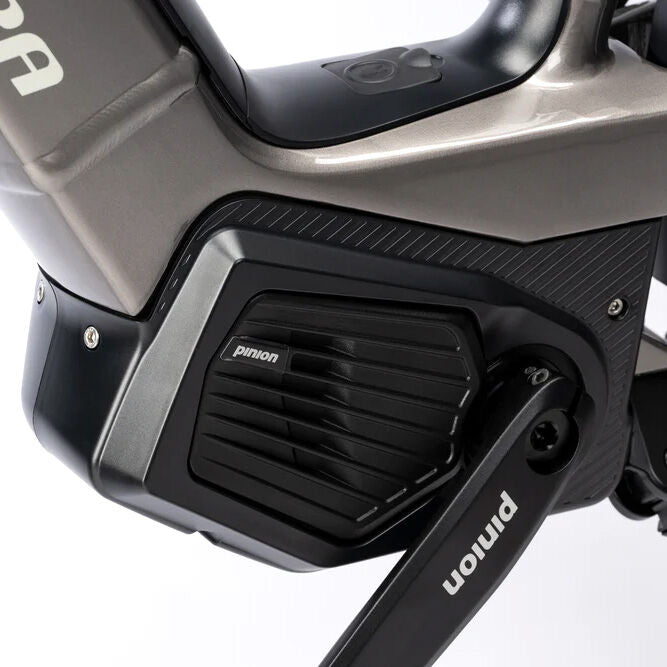

• Motor: Pinion E1.9 MGU, 600W, 85Nm, 25km/h

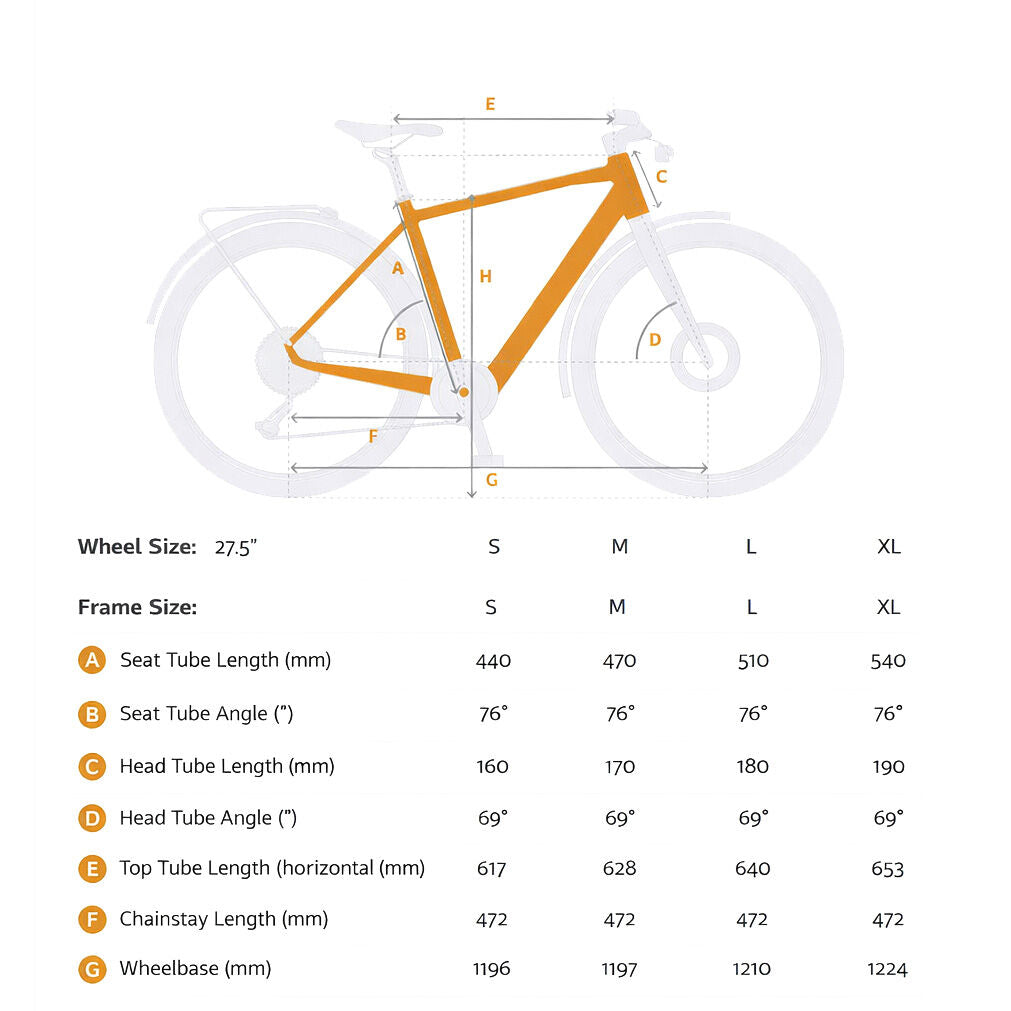

Frame

• Frame: aluminium, disc brake Post Mount
• Maximum loadable weight: 180kg

Drive

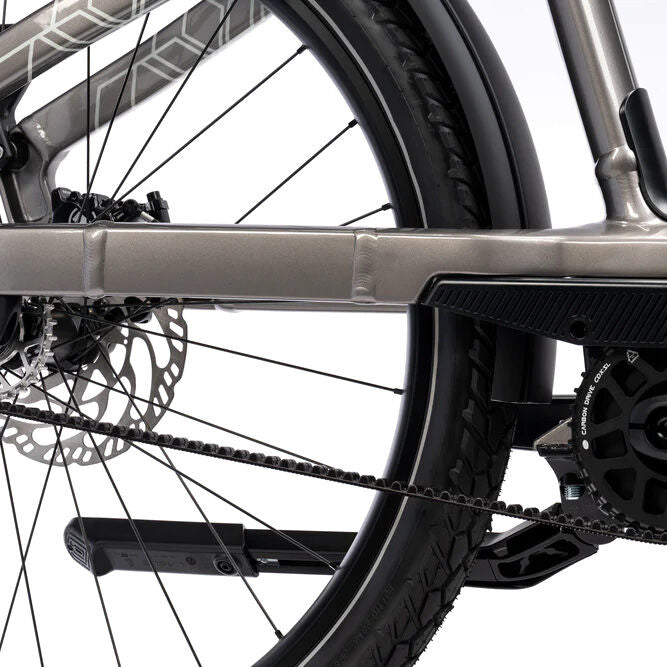

• Chain: Gates Carbon Drive Belt CDX, 120T
• Gear: Pinion Motor-Gearbox-Unit
• Shifter Right: Fix Remote Basic-eShift

Suspensions

• Front Fork: SR Suntour Mobie 34 Boost D2CR DS, Travel: 100mm

Components

• Front Brake: Magura MT-C, 203mm
• Rear Brake: Magura MT-C, 180mm
• Headlight: Litemove AC-210U, 11-16V
• Rear Light: Supernova Supernova TL3 Z integrated in the fender
• Grips: Herrmans DD42, Lockable Grips
• Handlebar: JD TR28AL, Dia. 31.8 mm, Rise: 19 mm 680 mm
• Pedal: VP Components VPE-541P w. Reflector
• Saddle: Selle Royal Vivo
• Seatpost: JD YSP28J, Dia. 34,9 mm, Travel: 100 mm

Wheelset

• Front wheel set: DT Swiss HU 1900 Spline 27.5" 15x110 mm, Centerlock
• Rear wheel set: DT Swiss HU 1900 Spine 27.5" 12x148 mm, 6 bolt Disc
• Tyre: Schwalbe AL Grounder Performance, DD RaceGuard, 60-584, reflex

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
