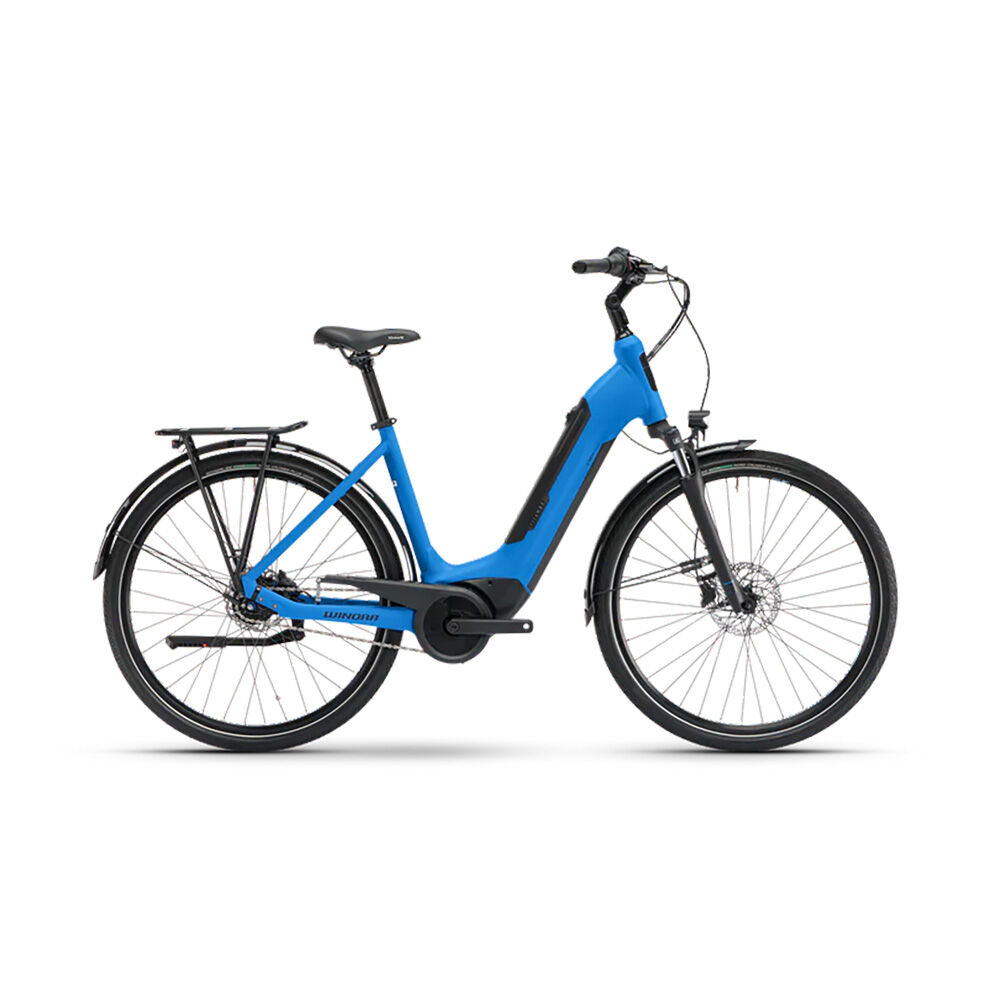

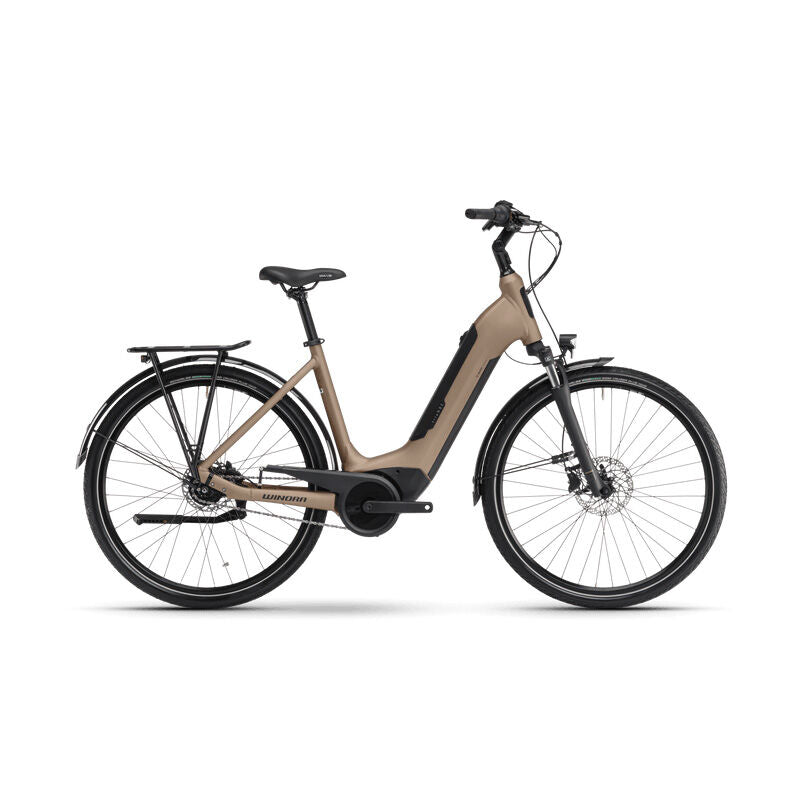

Winora Tria N8 E Low e-bike

Cycling can be so easy

The Winora Tria N8 E Low is the perfect example of why e-bikes have taken the roads by storm. The motto of this bike is: maximum comfort and maximum riding pleasure. The Bosch Active Plus Smart System motor accelerates smoothly up to 25 km/h, allowing you to breeze through rush hour traffic with a smile on your face. The relaxed, upright seating position makes you forget the stress of everyday life in no time. Reliable components such as the easy-to-clean Shimano Nexus hub gear, hydraulic disc brakes with coaster brake and 63 mm travel suspension fork ensure your safety at all times. Get on the Tria N8 E Low and leave your car in the garage from now on: cycling has never been easier.

Tech spec

E-System

• Battery: Bosch PowerTube 500Wh
• Charger: Bosch Charger 2A 220-240V
• Display: Bosch Intuvia 100 + LED Remote

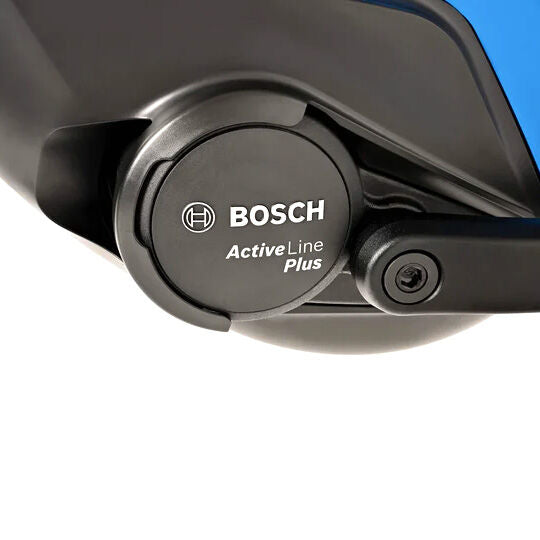

• Motor: Bosch Active Plus Smart System, 250W, 50Nm, 25km/h

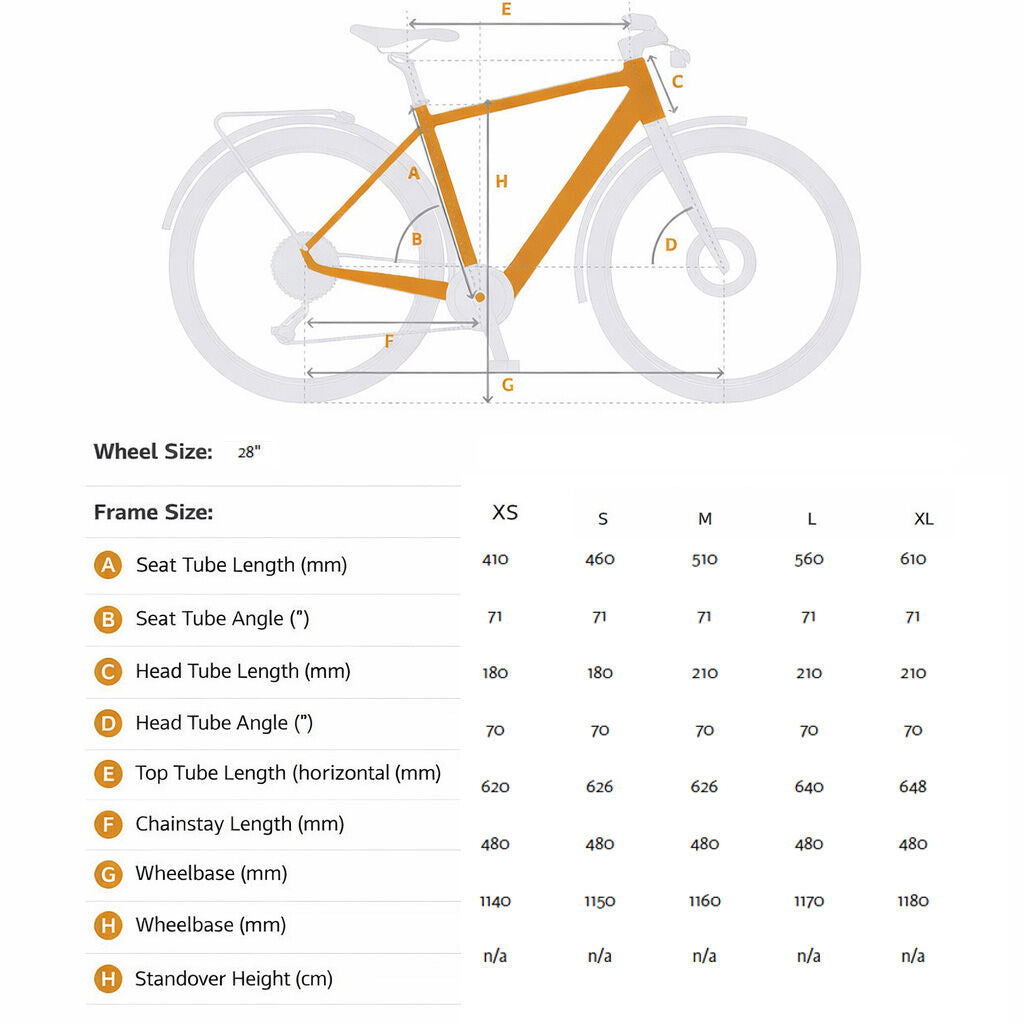

Frame

• Frame: aluminium 6061, disc brake Post Mount
• Maximum loadable weight: 130kg

Drive

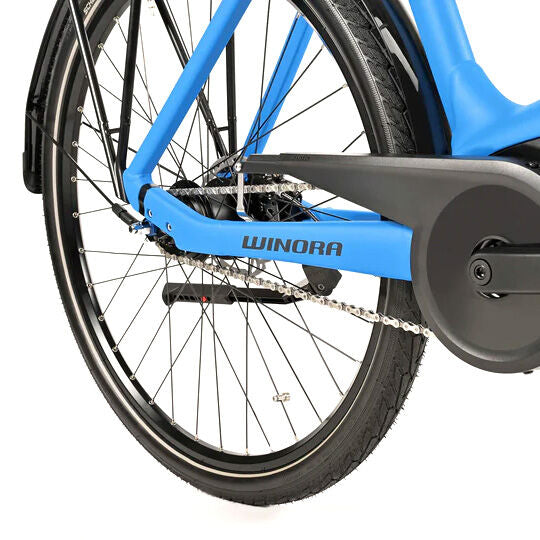

• Chain: KMC X8 8s

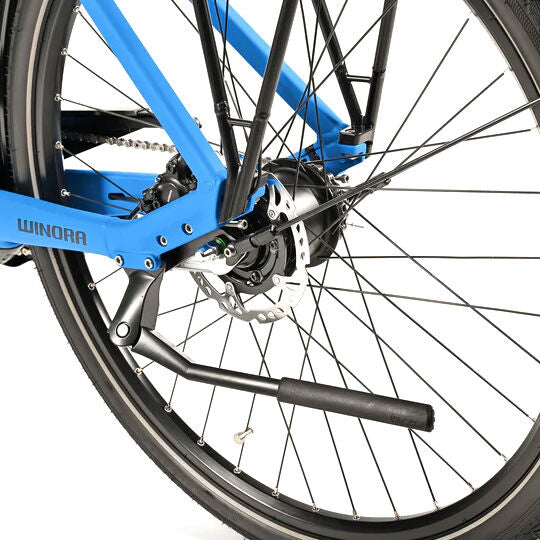

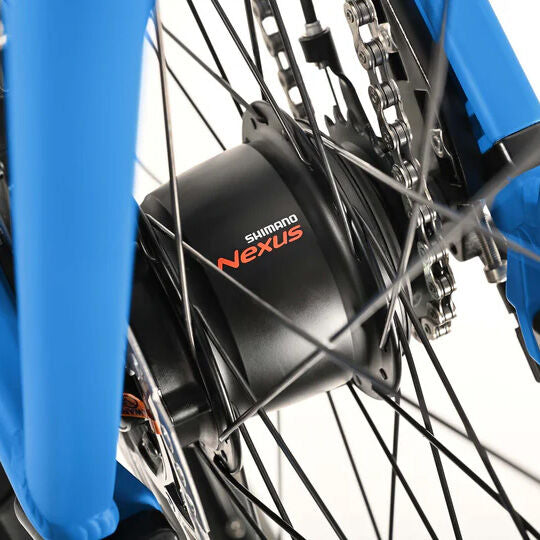

• Gear: Shimano Nexus SG-C6001-8CD, Internal Geared Hub, 8-speed
• Number of gears: 8-speed
• Shifter Right: Shimano Nexus SL-C6000-8, Revoshift Lever, Gripshift

Suspension

• Front Fork: SR Suntour 28 SR NEX-E25, Travel: 63mm

Components

• Front Brake: Shimano BR-MT200, 2 pistons, resin pad, 180 mm
• Rear Brake: Shimano BR-MT200, 2 pistons, resin pad, 160 mm, Rücktritt
• Headlight: Herrmans Nordic CL3 E, 6-12V
• Rear Light: AXA Juno E-Bike, 6-12V
• Grips: Herrmans DD42, Lockable Grips
• Handlebar: JD TR25AL Dia. 31.8 mm, Rise: 25 mm 640 mm
• Pedal: VP Components VPE-461 MTB Alloy Pedal w/ Reflector
• Saddle: Selle Royal Wave
• Seatpost: XLC SP-DC1, Dia. 31.6 mm, L: 300 mm

Whelset

• Rim: Ryde Eco21, eyed, double-walled rim, aluminium
• Tyre: XLC Traverse CTC, 50-622

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
