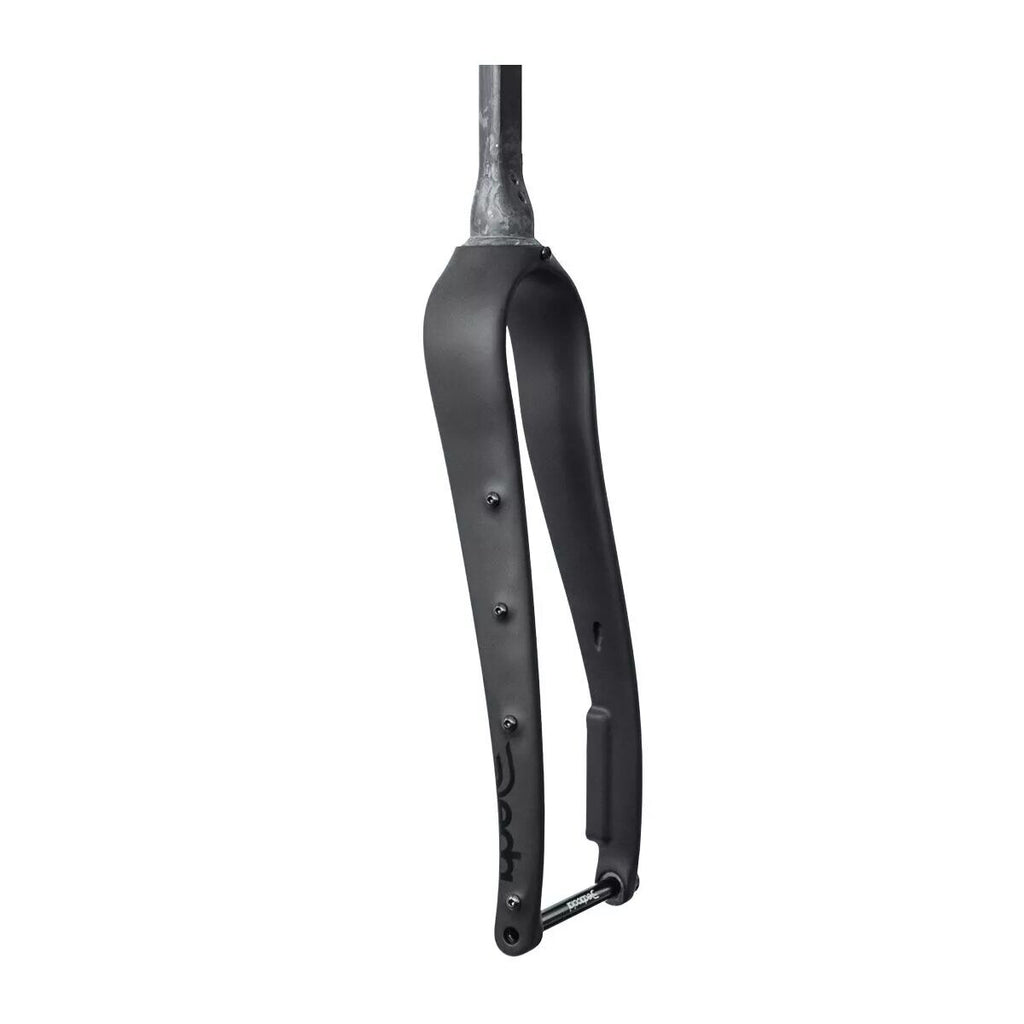

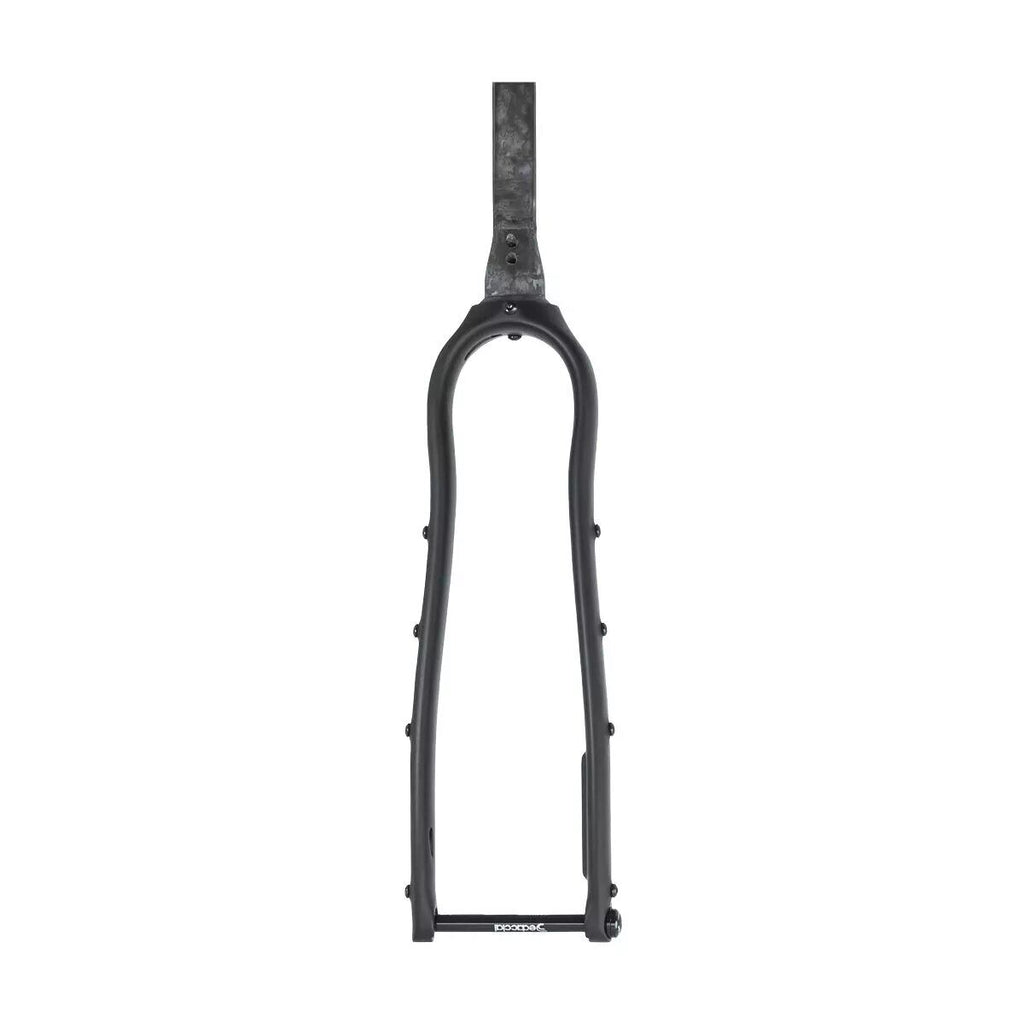

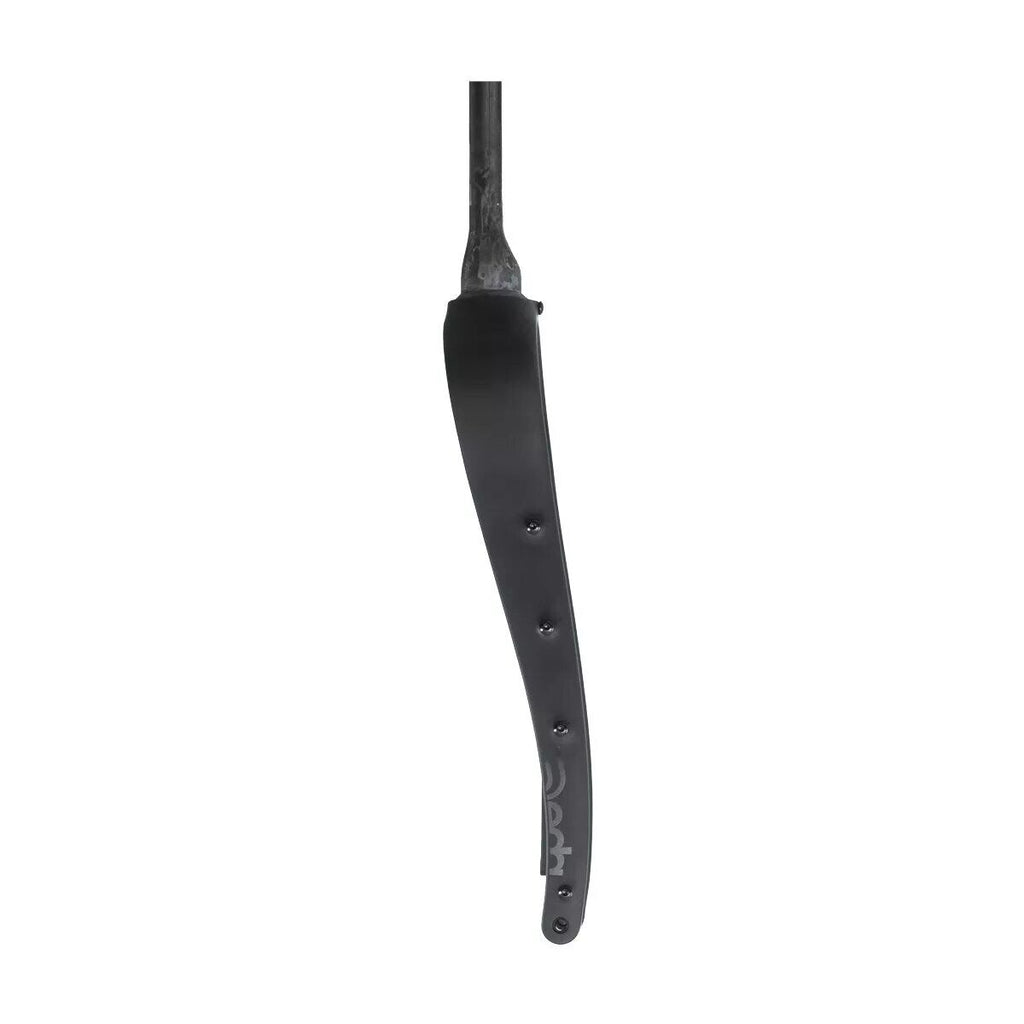

Deda Gera Curvy Gravel D-Shape DCR POB fork

Gera Curvy is the perfect gravel fork for adventure and bikepacking in which all the details have been designed with the aim of responding to a specific need. The first gravel fork fitting a 180mm rotor disc to guarantee the best possible braking even under heavy load conditions. The fork has been designed to allow the integration of the cables inside the frame thanks to a D-shape fork steerer and the DCR system. It is compatible with most of the frames on the market, both carbon and metal. It features a full carbon construction with an integrated 45° crown race, triple cage mounts on each fork blade for bikepacking front bags as well as inserts for fender mounts. Tire clearance up to 57mm (29”) or 65mm (27.5”).  It is ready for dynamo hubs, such as SON®, for optimal integration of the electric cables inside the fork.

Technical specifications

• Material: Full carbon fiber, UD finish
• Fork steerer: 1” 1/8 with D-shape and integrated 45° crown race
• Steerer length: 350mm
• Axle-crown lenght: 395mm
• Rake: 50mm
• Axe compatibility: 100x12mm thru-axle (included)
• Crown diameter: 56mm
• Disc brake rotor compatibility: flat mount, 160mm or 180mm
• Max. fork load: 15 kg per side (5 kg per eyelet)
• Finish: UD carbon with POB logo
• Accessories included: thru-axle (M12xP1.5x120), D-shape custom expander and topcap
• Note: fender mounts, ready for SON®-dynamo hub
• Frames compatibility: any bicycle frame featuring internal cable routing system and fitting Deda DCR headset, Deda Classic 1 o tapered 1” 1/8-1.5” or 1” 1/4 -1.5”
• Stems compatibility: all the Deda Elementi stems are compatible or the stems with a large opening between the fork steerer and stem body to allow the internal cable routing
• Wheel and tire compatibility: 622x57 (29”x2.25”), 584x65 (27.5”x2.6"), depending on tire/rim manufacturer
• Internal cables routing: with a standard stem up to 3 cables (two brakes housing cables and mechanical/electronic shifting cable); with a DCR stem up to 4 cables (two brakes housing cables and two shifting cables)
• Minimum Tire Clearance at fork blade: 10mm (29”x2.25”), 8mm (27.5”x2.6")
• Producer weight: 545g
