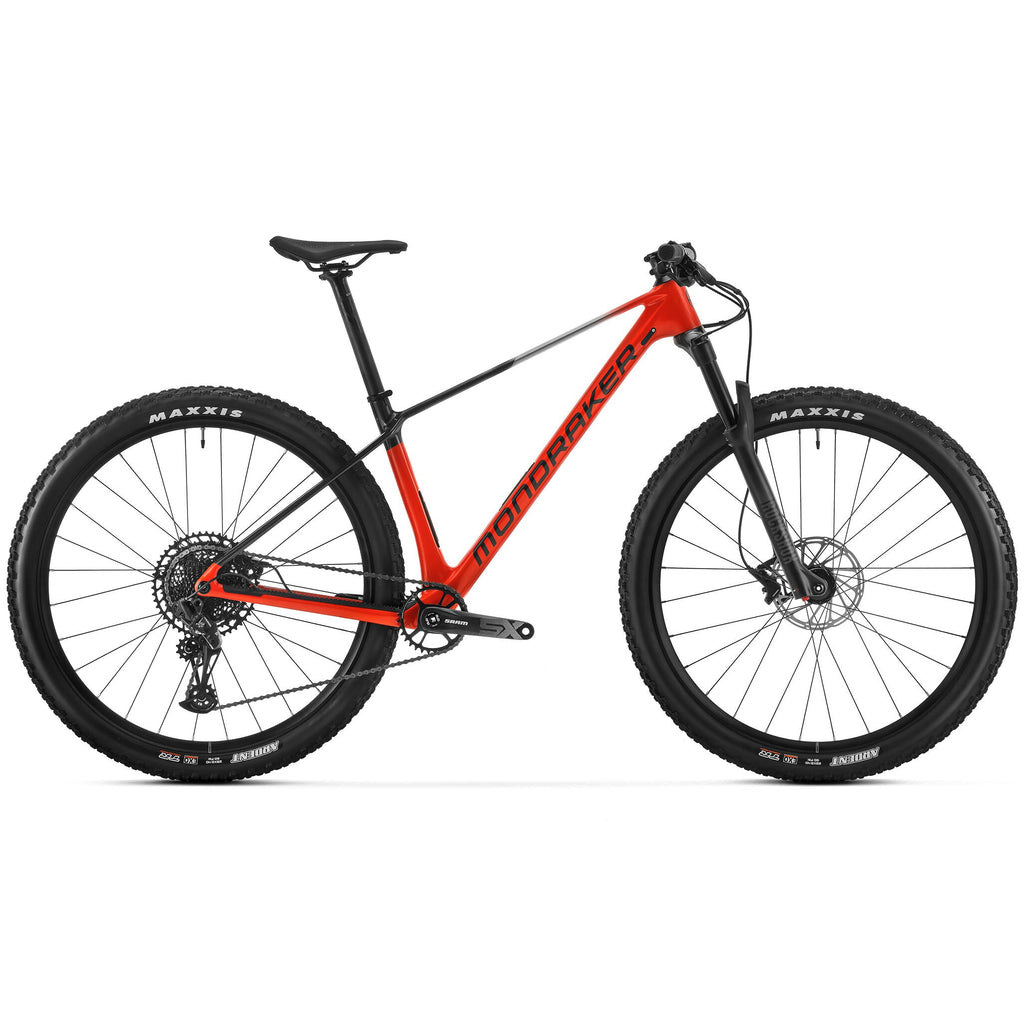

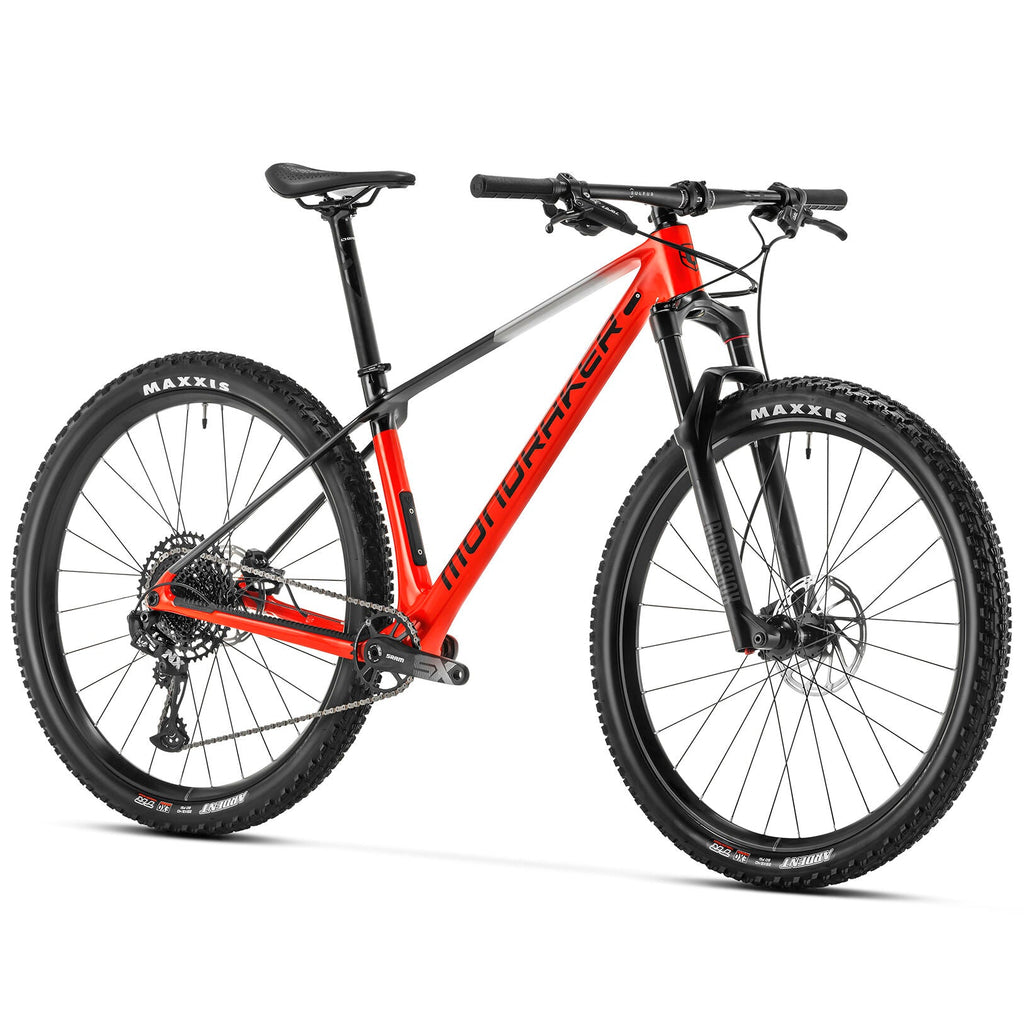

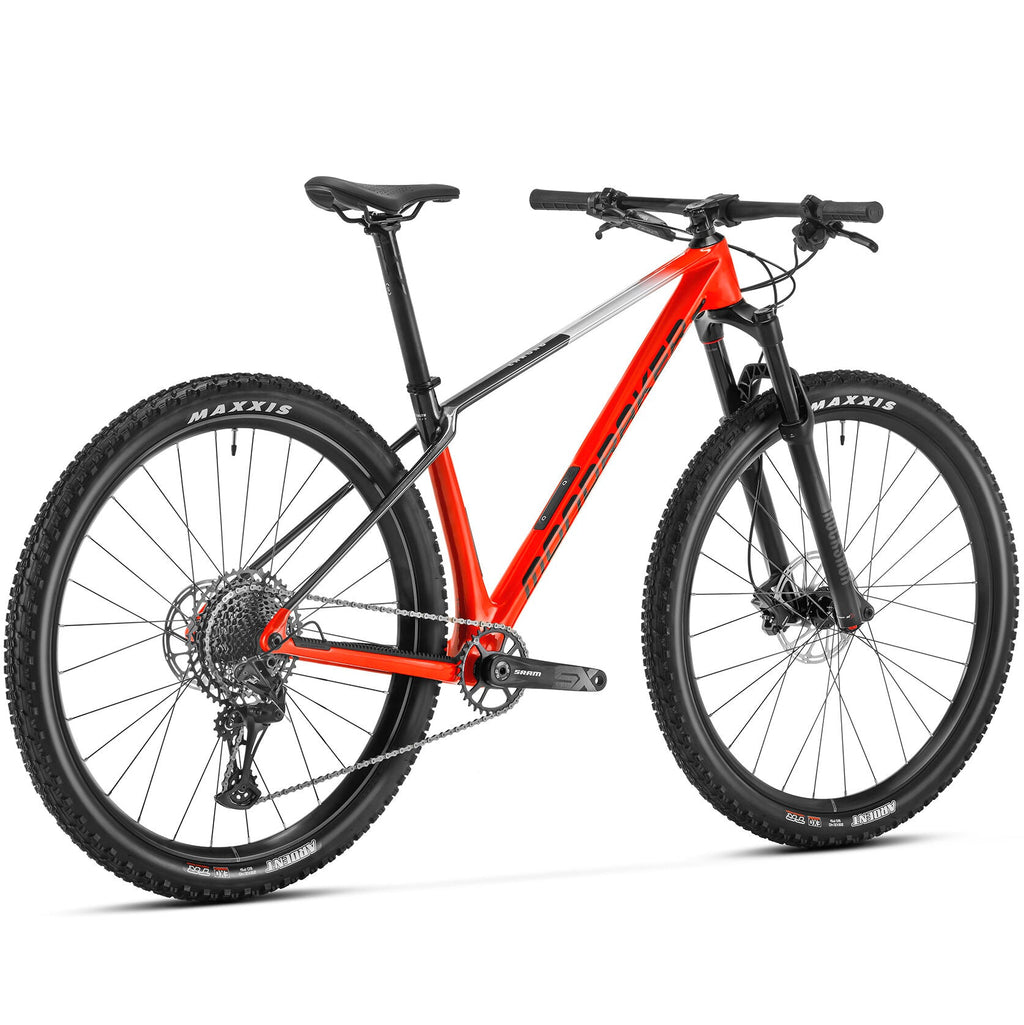

Mondraker Chrono Carbon DC

The most budget friendly model comes with a RockShox Recon Gold RL Remote 2 fork with remote lock-out, an SRAM NX Eagle chainset, SRAM Level 2 brakes and Maxxis Ardent 29x2.4” EXO tyres.

Tech Specs

• Frame: Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
• Fork: RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
• Fork remote: RockShox OneLoc
• Headset: Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 52x42x7 45°x45°, bottom 52x42x7 45°x45°.
• Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
• Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips: Onoff Twin, 1lock-on, 135mm
• Seatpost: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
• Saddle: Mondraker MDK Series, SRX, steel rail
• Front brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
• Rims: Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
• Spokes: Mavic J-bemd steel round spokes
• Front hub: Mavic, Boost 15x110mm, IS 6 bolts
• Rear hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
• Front tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
• Rear tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
• Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
• Rings: 34T, steel, X-Sync 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram SX Eagle, 12s, Powerlock
• Rear derrailleur: Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
• Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
• Casette: Sram PG-1230, 11-50T, 12s
• Derailleur hanger: Sram UDH
• Producer's weight: 12,2 kg

Producer's weight: Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
