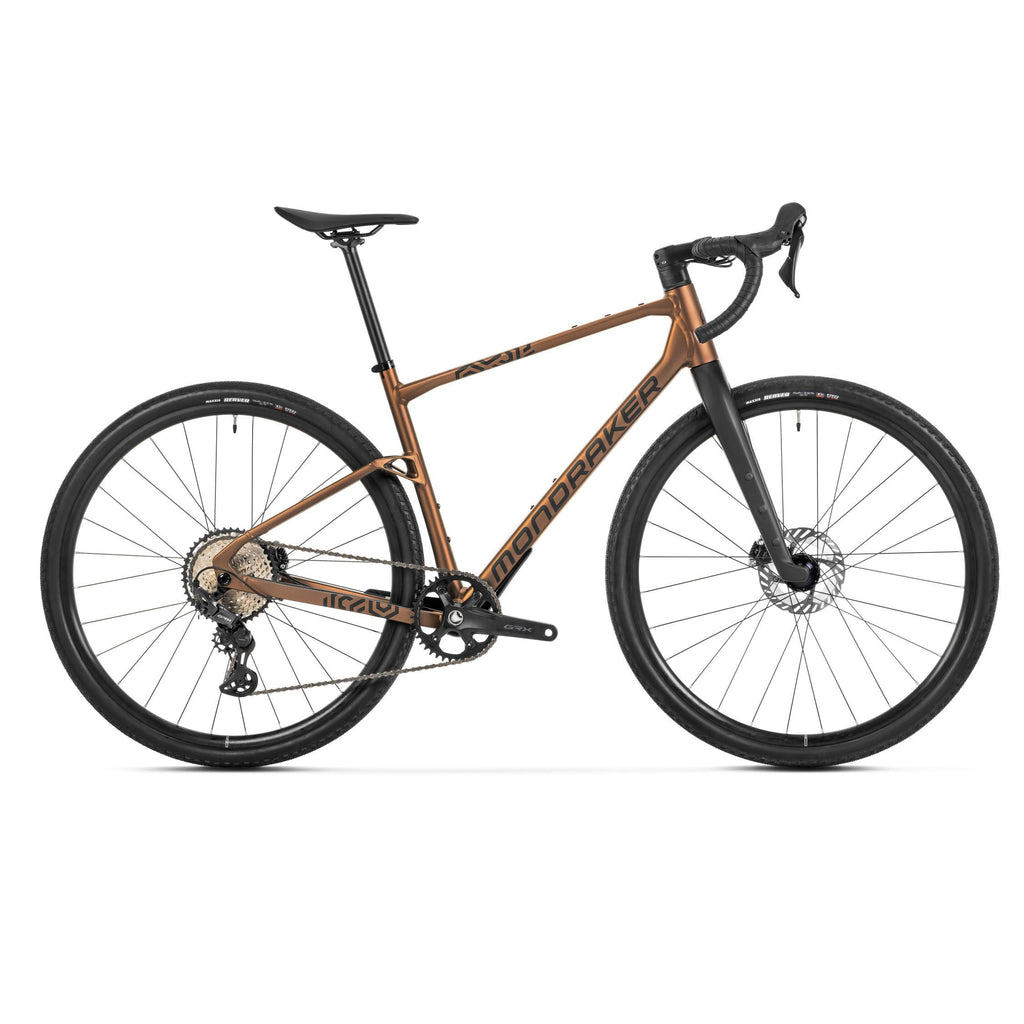

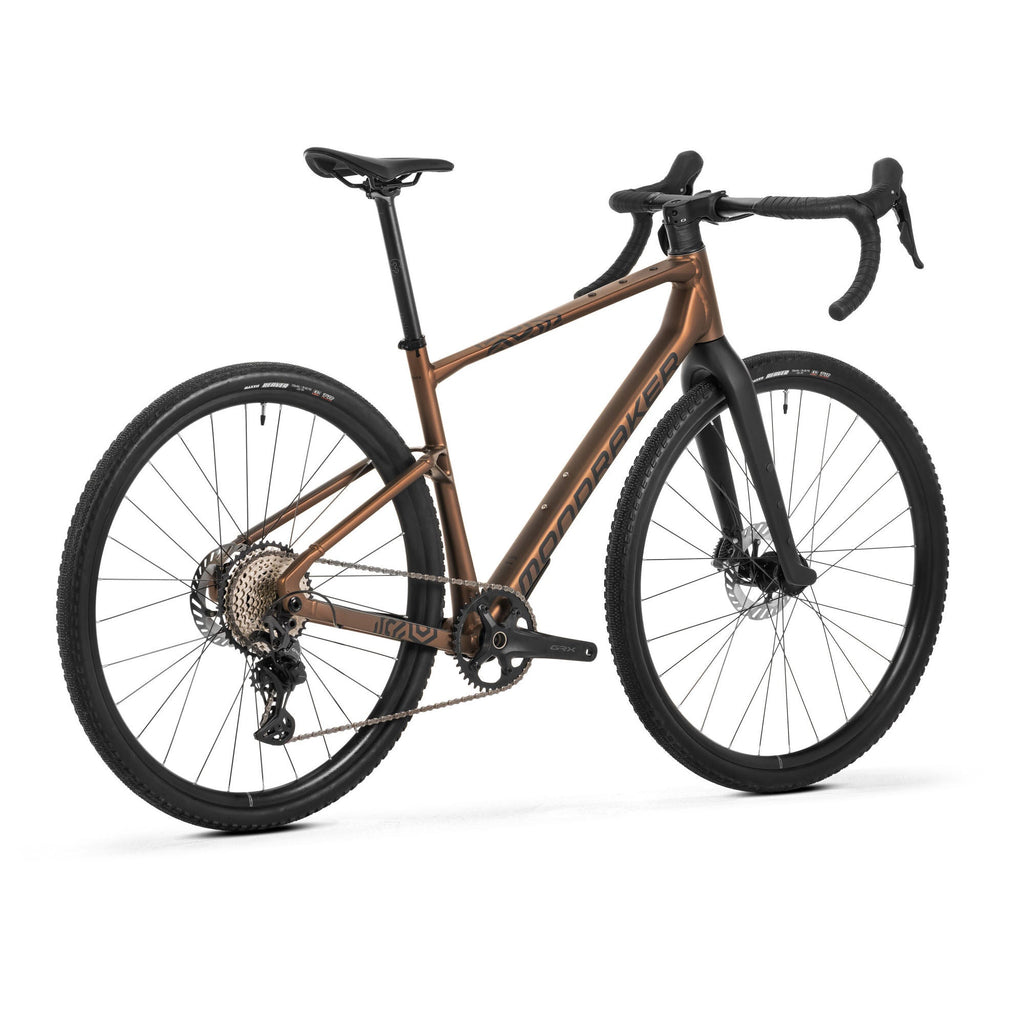

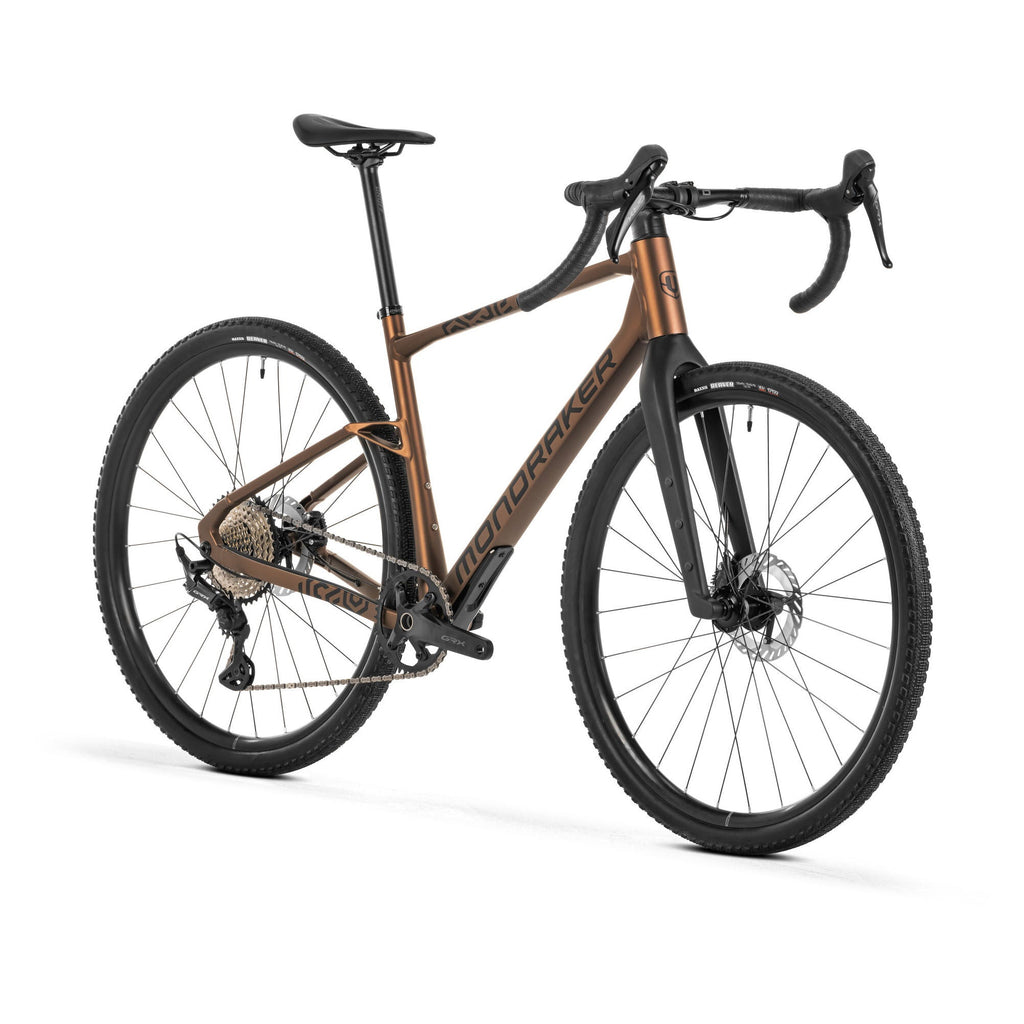

Mondraker Gravel Arid R 2026

Try something new

Ride solo or catch up with the group ahead of you. If you can't beat them, join them. Take a break from mountain biking. Or maybe not. Mix things up with gravel and finish a 200 km race on your own on endless trails. Or get lost in the woods on the weekend. Build a fire and cook dinner. Live the adventure your way. The Mondraker way.

Tech spec

• Frame: Arid alloy, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142 mm rear axle, 1X drivetrain design, compatible with Flatmount brakes.

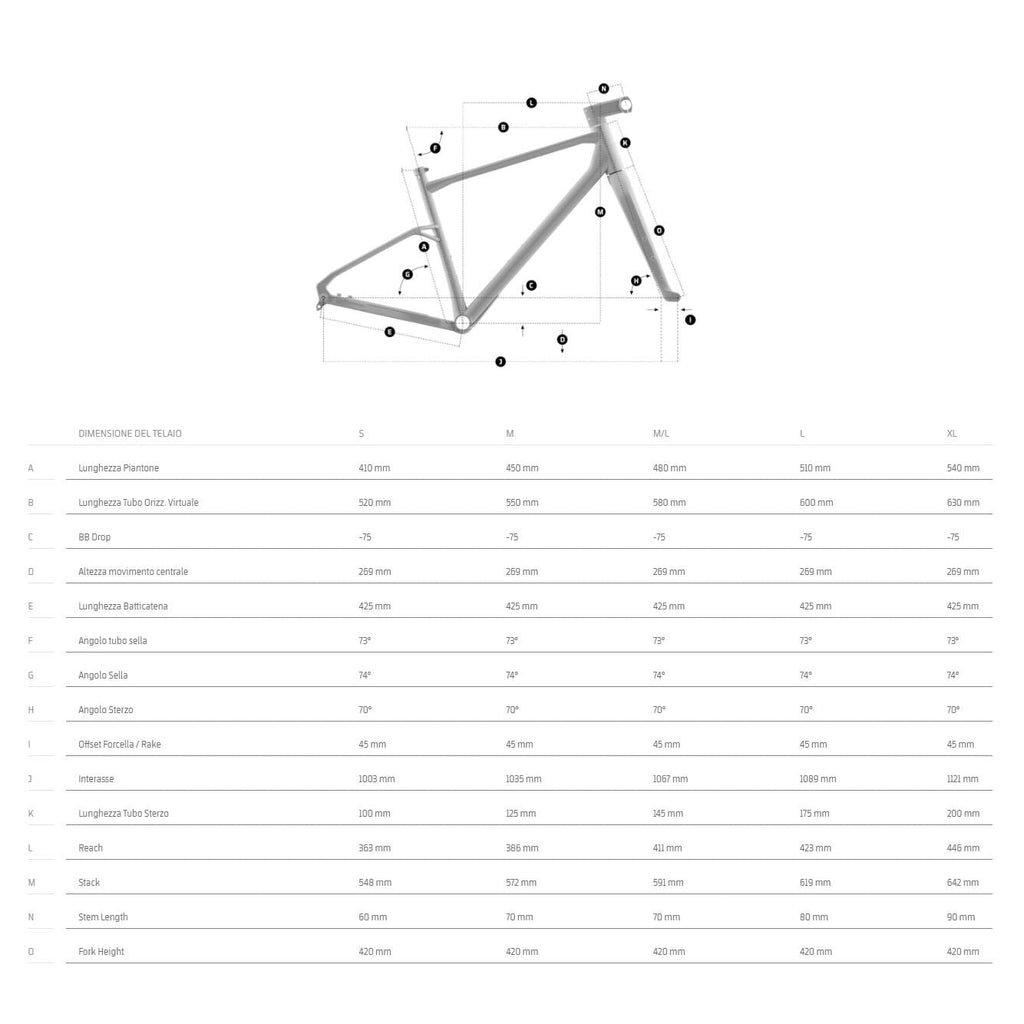

• Sizes: S: 410 mm / M: 450 mm / ML: 480 mm / L: 510 mm / XL: 540 mm
• Fork: Stealth Air Carbon tapered head tube, HHG, integrated Flat-Mount fork
• Headset: ONOFF IS52/IS52, 1-1/8“, 1.5” head tube, sealed bearings, internal cable routing
• Stem: ONOFF S6 6061 T6 alloy + CNC, 31.8 mm bore, rise: -7º, length: size S: 60 mm, size M: 70 mm, size ML 70 mm, size L: 80 mm, size XL: 90 mm
• Handlebar: ONOFF S3 GR 16º flare. Width dimensions size S: 440 mm size M: 440 mm size ML: 460 mm size L: 460 mm size XL: 460 mm
• Grips: ONOFF HEX Bartape
• Seatpost: Onoff S3 0-R, diameter 27.2 mm, length 400 mm
• Saddle: FIZIK Terra Argo X5 140 mm
• Front brake: SRAM Apex AXS, 2-piece caliper, Centerlock Paceline 160 mm rotor, organic pad with steel backing
• Rear brake: SRAM Apex AXS, 2-piece caliper, Centerlock Paceline 160 mm rotor, organic pad with steel backing
• Brake levers: Sram Apex, contact point adjustment, reach adjustment with tools, aluminum levers
• Rims: Mavic Allroad Disc, UST, internal width 25 mm, hookless, infinity hubs, 24 spokes front, 28 spokes rear
• Spokes: Mavic double-thickness flat steel spokes
• Front hub axle: Mavic, 12x100 mm, 6 IS bolts
• Rear hub: Mavic Infinity hub, 12x142 mm, XD ID360 ratchet system, 6 IS bolts, XDR freehub
• Front tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Rear tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Cranks: SRAM Apex 1 Wide, size S: 170mm Size M: 170mm Size ML: 172.5mm Size L: 172.5mm Size XL: 175mm, CL 47.5
• Crankset: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide
• Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85.5 mm Sram Apex, 12s, Powerlock
• Chain: Sram Apex, 12s, Powerlock
• Rear derailleur: Sram Apex XPLR AXS D1 12S
• Shifters: Sram Apex AXS D1 12s
• Cassette: Sram PG-1231 11-44, 12s
• Dropout: Sram UDH
• Producer's weight: 10.9 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only
