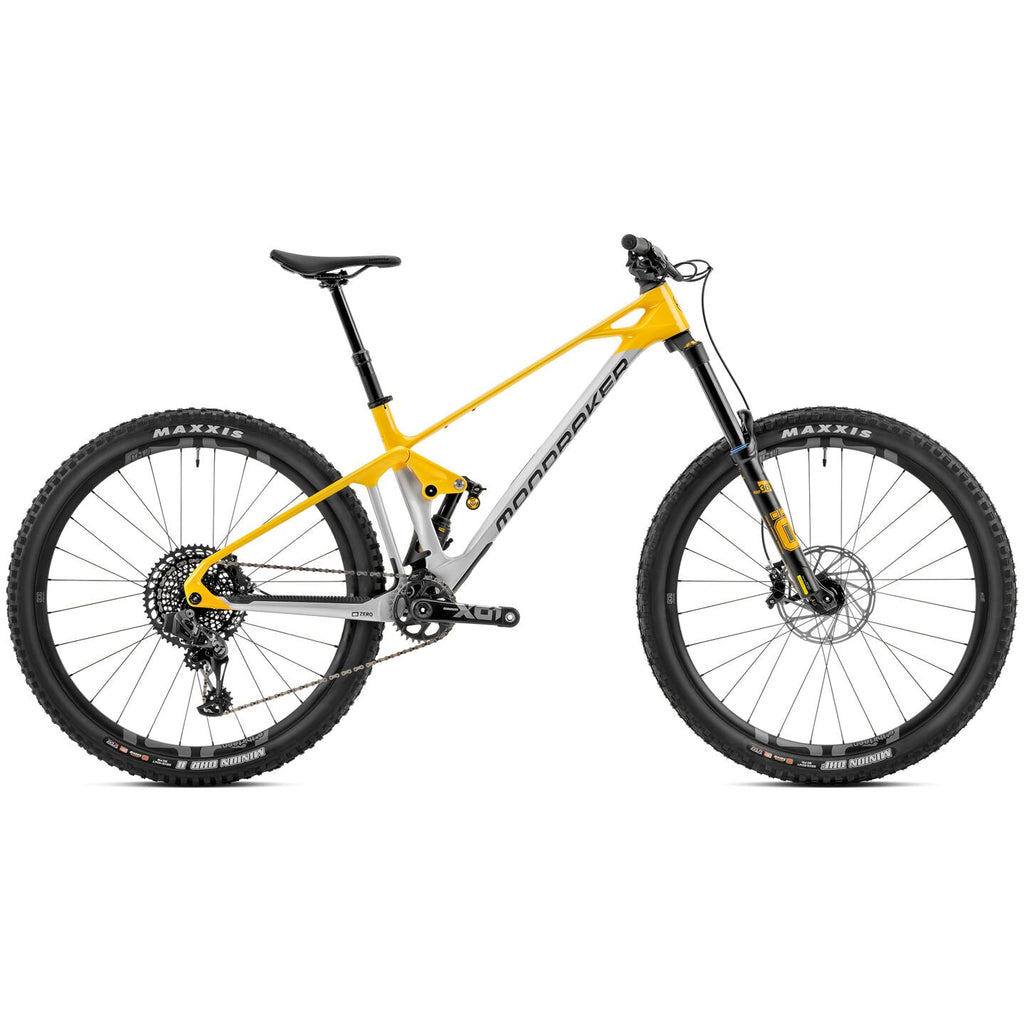

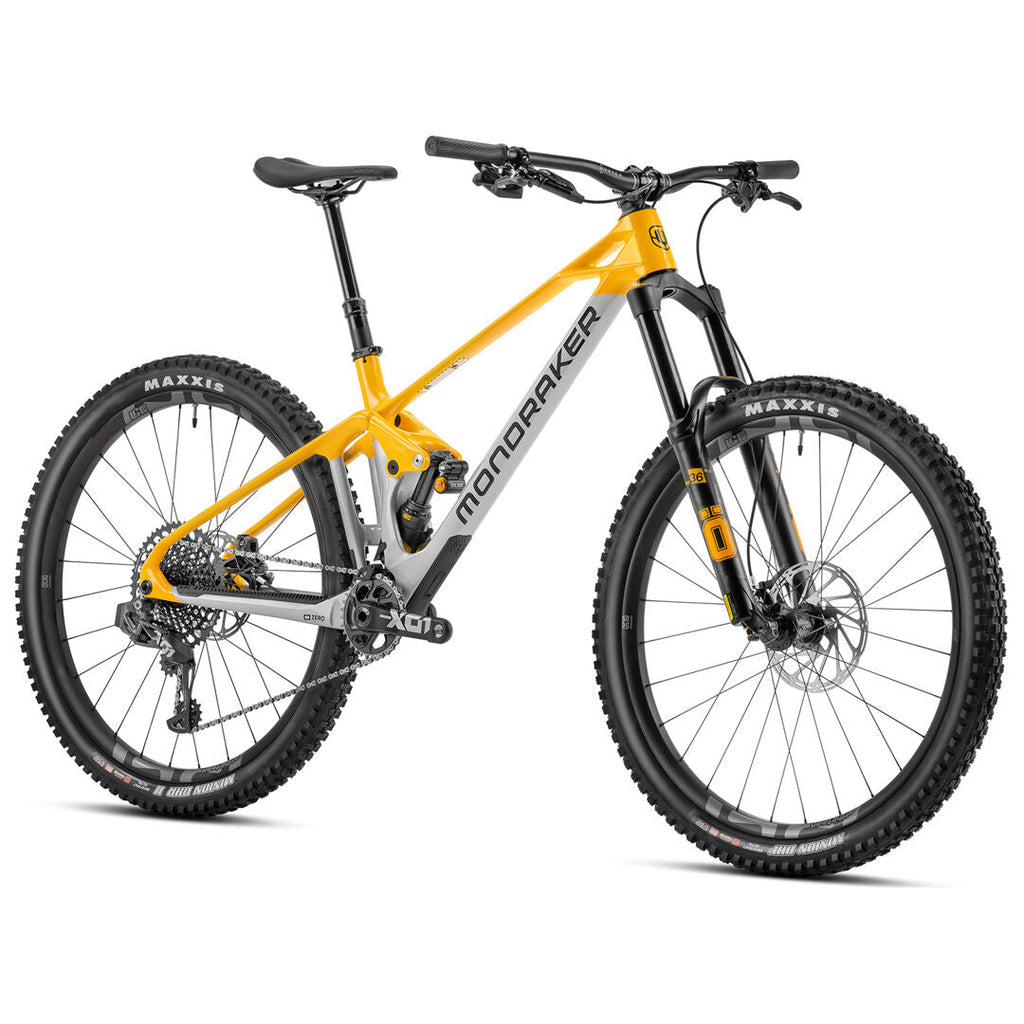

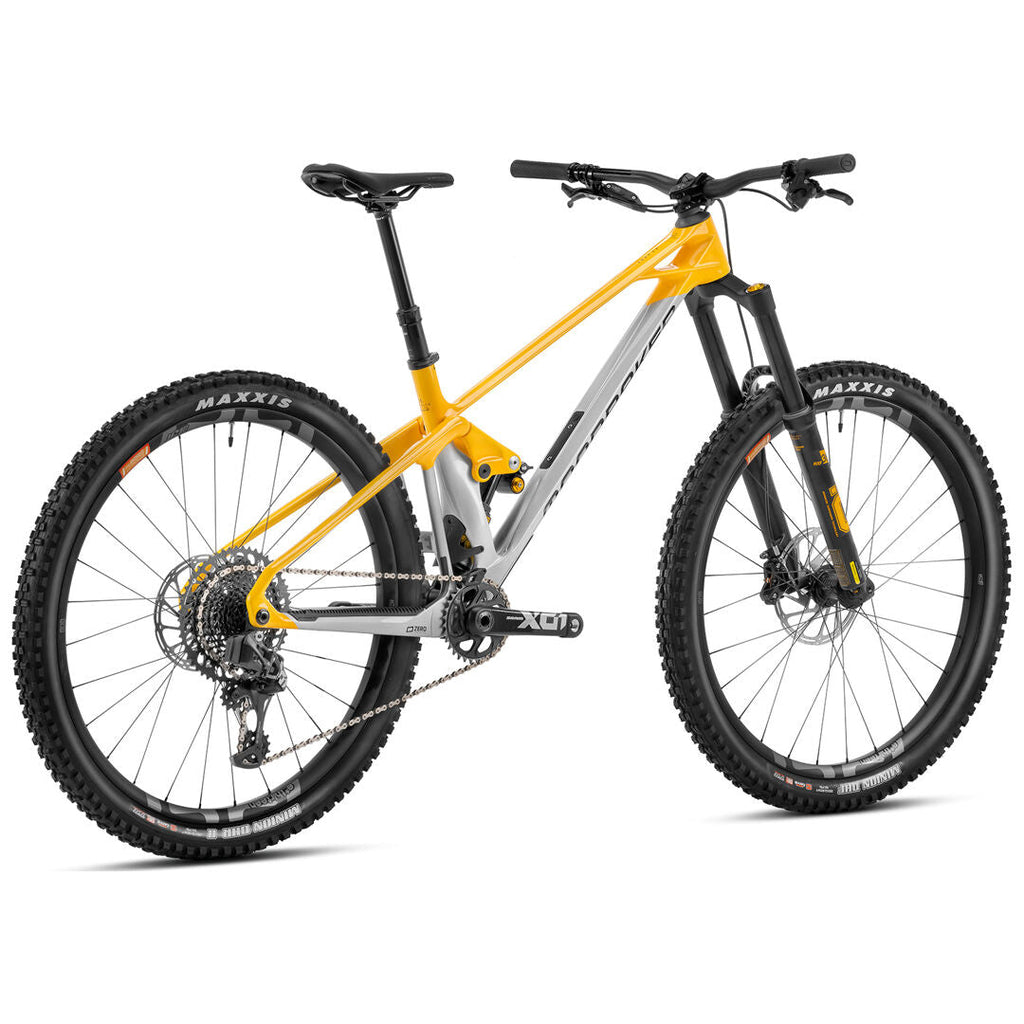

Mondraker MTB Foxy Carbon XR

At Mondraker they’ve evolved thr most iconic model to be more “enduro” than ever

The FOXY XR is the most radical of all the carbon Foxy models, with 170mm of front wheel travel and 150mm following up at the back. It comes as stock with prestigious Öhlins suspension both front and rear (RFX 36 fork and TTX Air shock), an SRAM X01 Eagle AXS wireless drivetrain, e*thirteen’s Race Carbon wheels; SRAM’s G2 RSC 4-piston brakes and ONOFF’s components with Krypton Carbon 1.0 handlebars. What’s more, for greater customization of the ride characteristics it offers the possibility of varying the geometry, and it’s also available with MIND technology (only in the EU).

Tech Specs

• Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
• Rear shock: Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Shock settings: C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
• Fork: Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
• Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
• Stem: ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
• Handlebar: ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips: ONOFF Desert, 1lock-on, 135mm
• Seatpost: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
• Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
• Front brake: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear brake: Sram Code RSC, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Brake lever: Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
• Rims: e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
• Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
• Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
• Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
• Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Crankset: Sram X01 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
• Rings: 32T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram GX Eagle, 12s, Powerlock
• Rear derrailleur: Sram X01 Eagle AXS, roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Shift levers: Sram Eagle AXS Rocker paddle, 12s
• Casette: Sram XG-1295, 10-52T, 12s
• Producer's weight: 13,9 kg
• Derailleur hanger: Sram UDH

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
